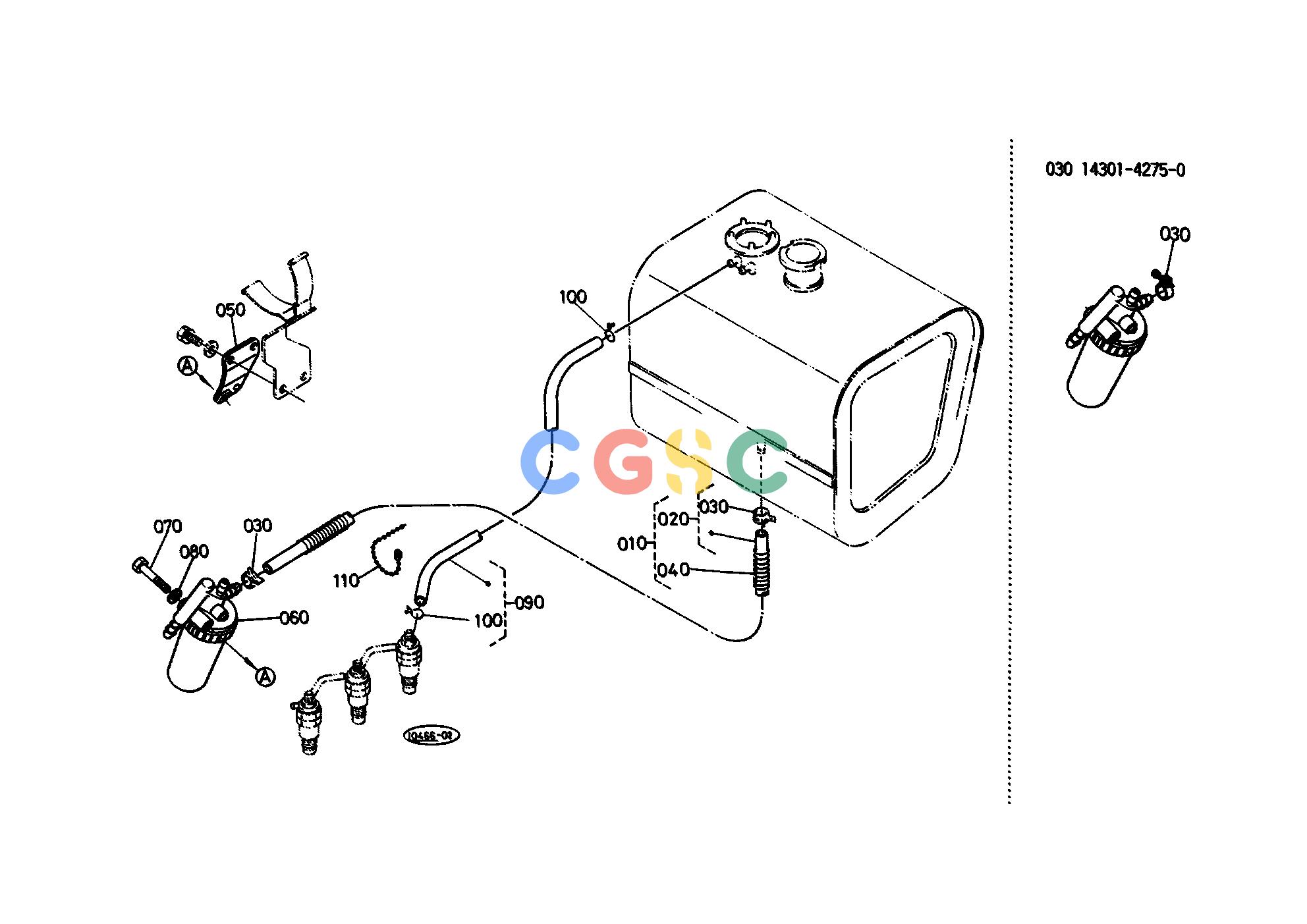

久保田零件查询T02900 FUEL PIPE 1 FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780053700
|
[1] |
ASSY PIPE FUEL
|
0.1540(lbs); 0.070
|
| 020. |
6780053710
|
[1] |
ASSY PIPE FUEL
|
0.1100(lbs); 0.050
|
| 030. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 030. |
1491142750
|
[2] |
CLIP PIPE
|
0.0044(lbs); 0.002
|
| 040. |
6711158320
|
[1] |
SPRING PIPE PROTECT.
|
0.0440(lbs); 0.020
|
| 050. |
6780053814
|
[1] |
STAY FILTER
|
0.1870(lbs); 0.085
|
| 060. |
1575143010
|
[1] |
ASSY FILTER FUEL
|
0.9020(lbs); 0.410
|
| 070. |
0115350865
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 080. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 090. |
6780053750
|
[1] |
ASSY PIPE OVER FLOW
|
0.0440(lbs); 0.020
|
| 100. |
1024442320
|
[2] |
CLIP PIPE
|
0.0022(lbs); 0.001
|
| 110. |
3435029380
|
[1] |
BAND CORD
|
0.0022(lbs); 0.001
|
