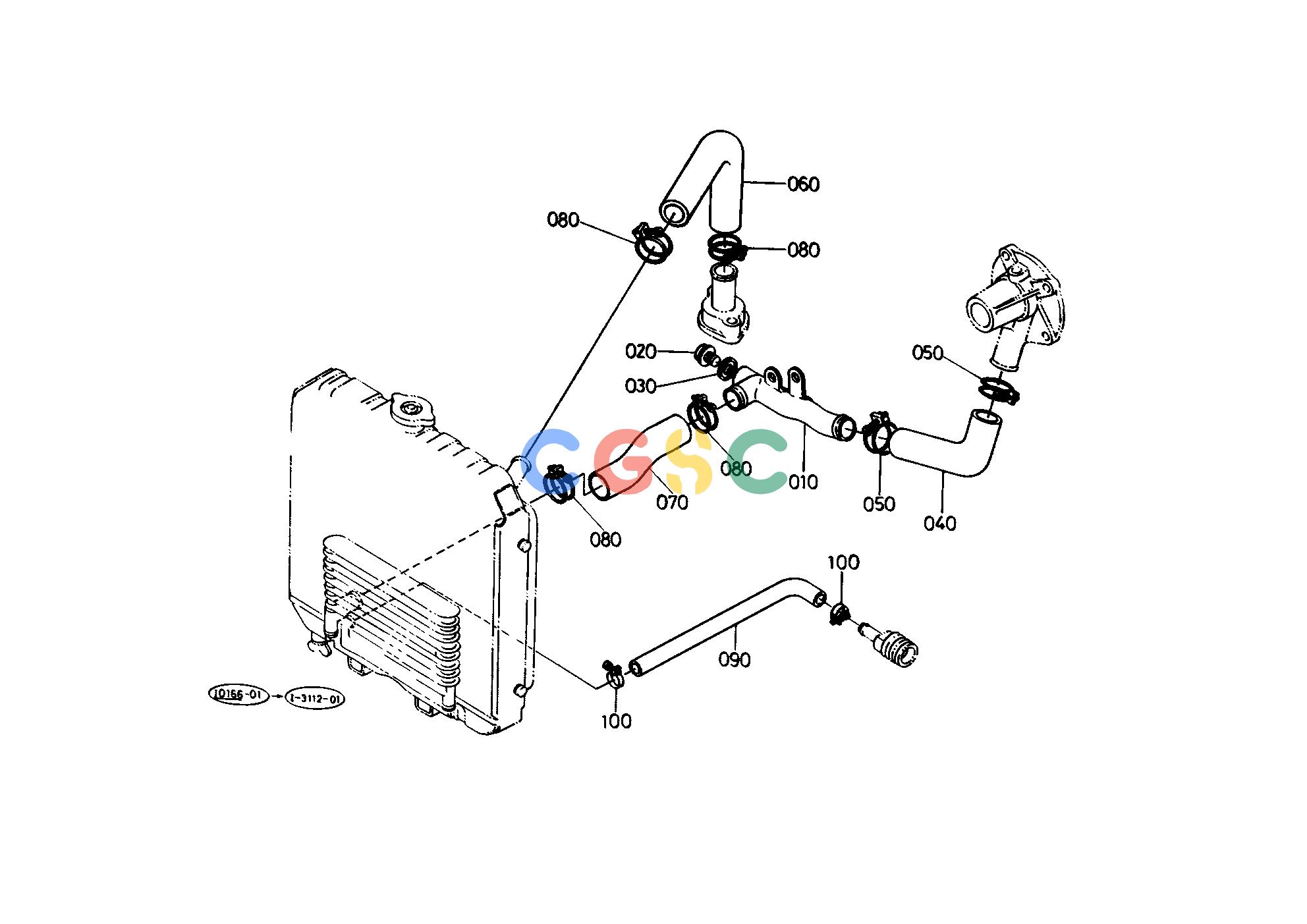

久保田零件查询T03200 WATER PIPE COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1555472860
|
[1] |
PIPE WATER
|
0.4708(lbs); 0.214
|
| 020. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 030. |
0471701700
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 040. |
1553172870
|
[1] |
PIPE WATER
|
0.1144(lbs); 0.052
|
| 050. |
1526172780
|
[2] |
BAND
|
0.0528(lbs); 0.024
|
| 060. |
1553272942
|
[1] |
PIPE WATER
|
0.2640(lbs); 0.120
|
| 070. |
1553272852
|
[1] |
PIPE WATER
|
0.0770(lbs); 0.035
|
| 080. |
1526172780
|
[4] |
BAND
|
0.0528(lbs); 0.024
|
| 090. |
1553173130
|
[1] |
PIPE DRAIN
|
0.1100(lbs); 0.050
|
| 100. |
1926973360
|
[2] |
BAND PIPE
|
0.0220(lbs); 0.010
|
