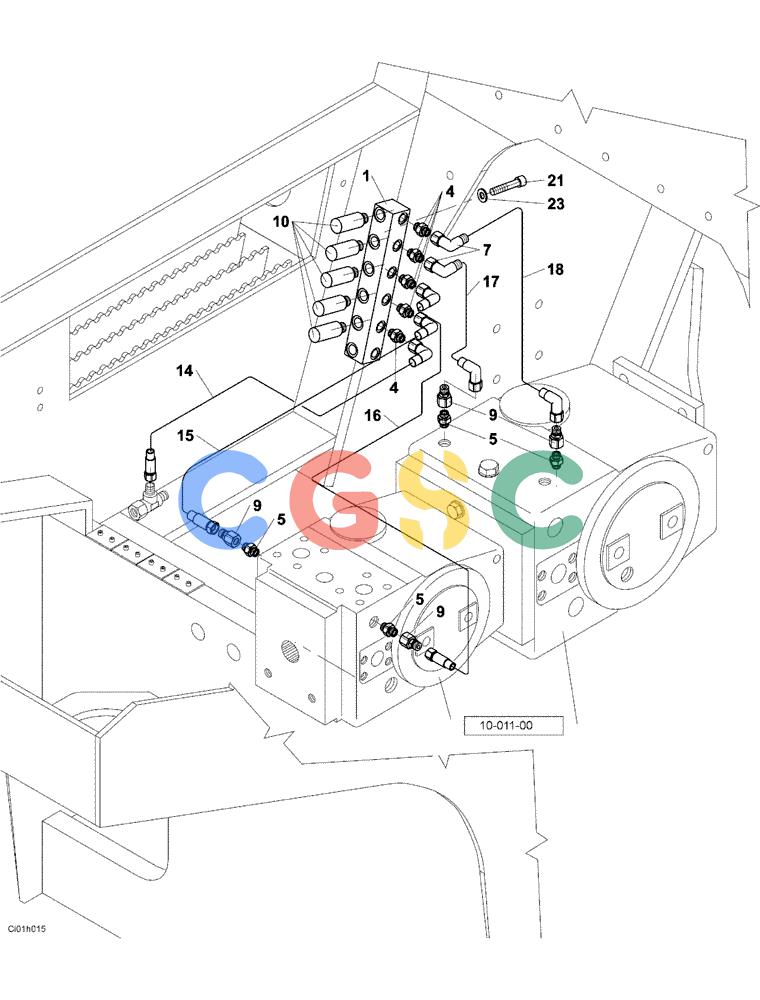

纽荷兰零件查询(CV2000) - VIBRATORY ROLLER (10-009-00[01]) - HYDRAULIC CIRCUIT PRESSURE TEST POINT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
393 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND031315 | [1] | BLOCK | STA |
| 4. | ND062197 | [5] | HYD CONNECTOR | STA |
| 5. | ND062137 | [4] | HYD CONNECTOR | STA |
| 7. | ND062304 | [2] | ELBOW | STA |
| 9. | ND062431 | [4] | HYD CONNECTOR | STA |
| 10. | ND062258 | [5] | HYD CONNECTOR | STA Superseded by part number: 47732245 |
| 14. | ND061908 | [1] | HOSE | STA |
| 15. | ND061909 | [1] | HOSE | STA |
| 16. | ND061929 | [1] | HOSE | STA |
| 17. | ND061928 | [1] | HOSE | STA |
| 18. | ND061930 | [1] | HOSE | STA |
| 21. | ND021184 | [2] | BOLT | STA |
| 23. | ND035940 | [2] | SPRING WASHER | STA |
