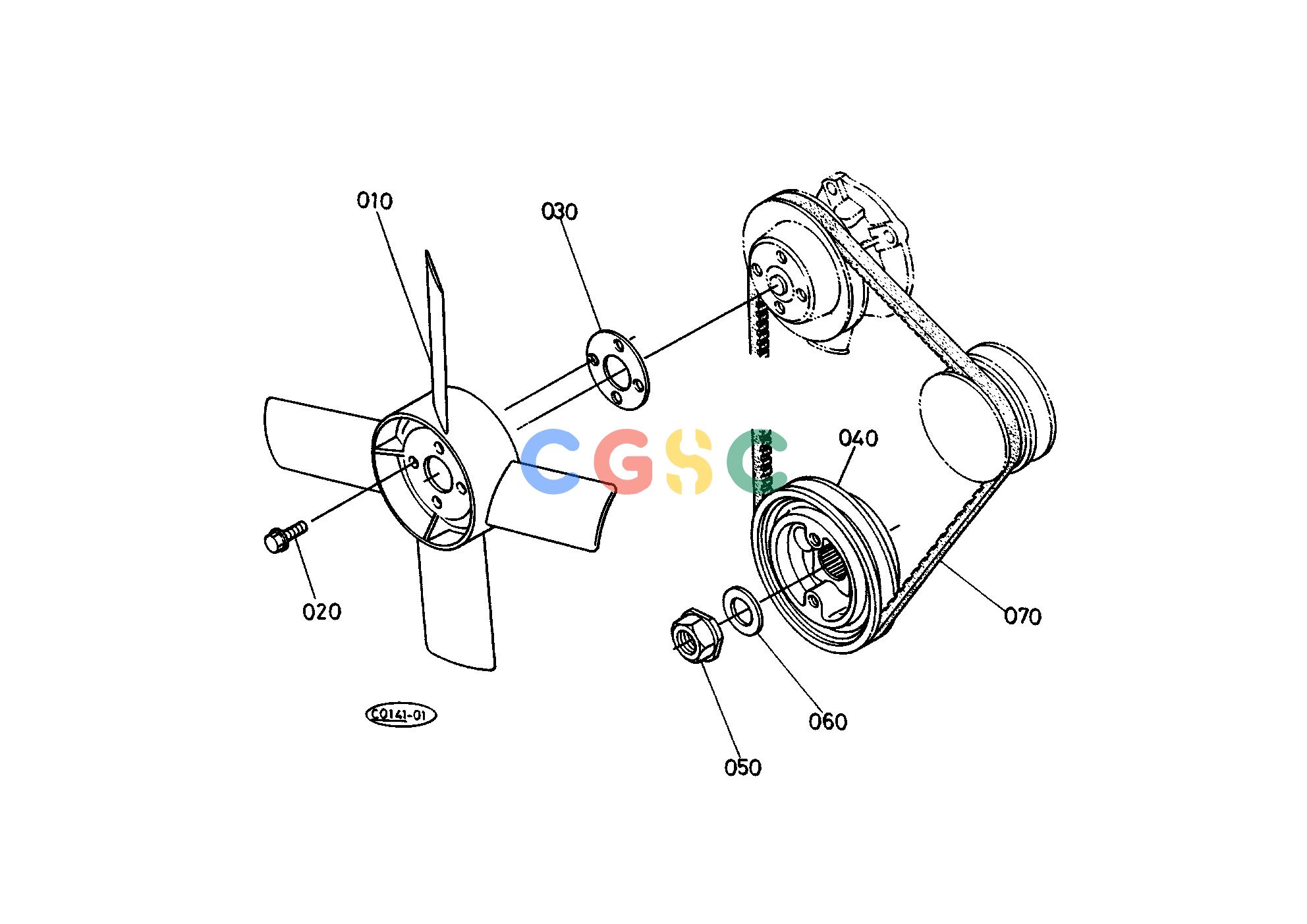

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 1553174110 | [1] | FAN | 0.4400(lbs); 0.200 |
| 020. | 0175450616 | [4] | BOLT FLANGE | 0.0132(lbs); 0.006 |
| 030. | 1575274150 | [1] | COLLAR FAN | 0.1540(lbs); 0.070 |
| 040. | 1575274280 | [1] | PULLEY FAN DRIVE | 2.6400(lbs); 1.200 |
| 050. | 1575223360 | [1] | NUT CRANKSHAFT | 0.0880(lbs); 0.040 |
| 060. | 1575223380 | [1] | WASHER CRANKSHAFT | 0.0220(lbs); 0.010 |
| 070. | 1565972530 | [1] | BELT FAN | 0.1716(lbs); 0.078 |
