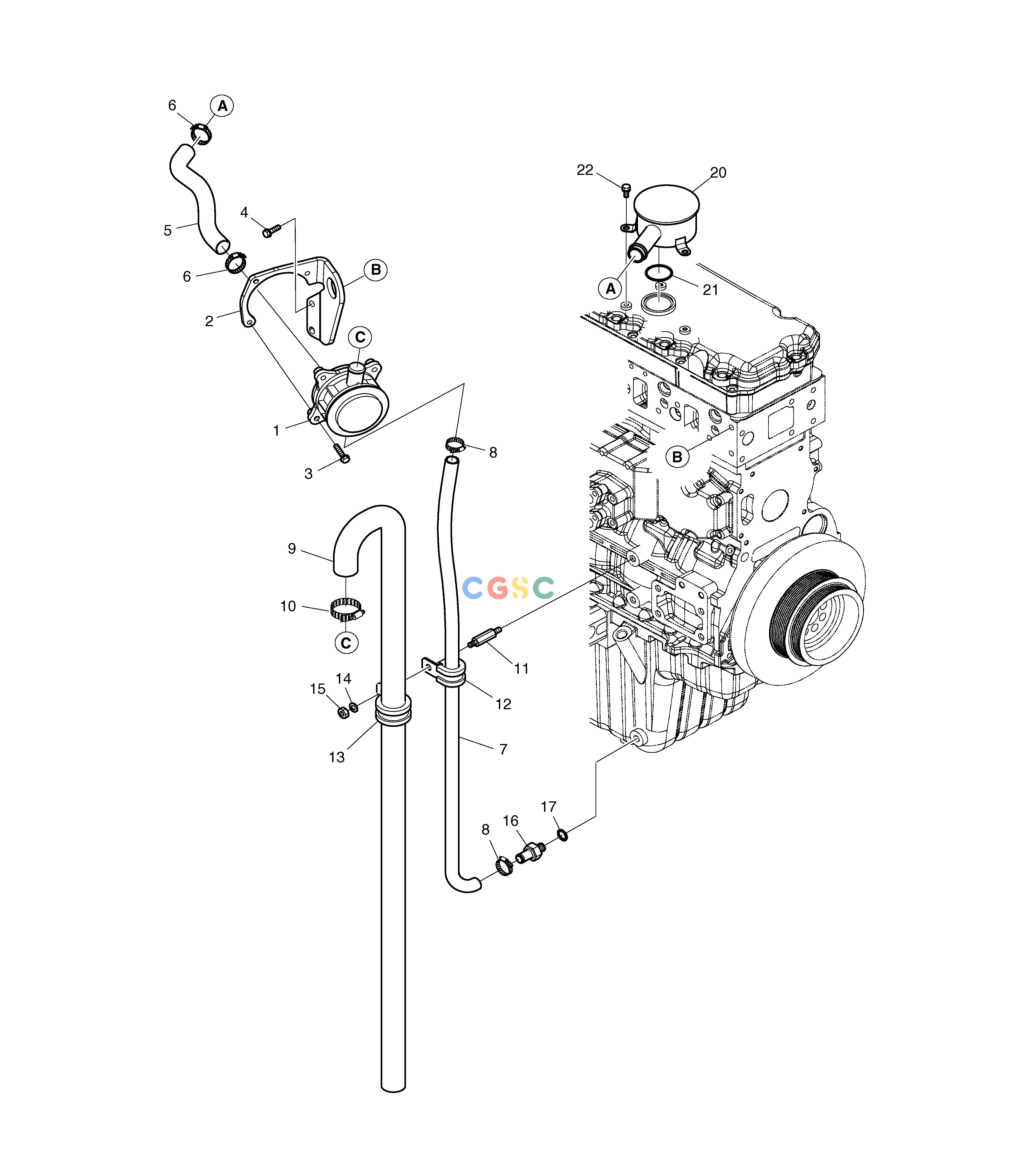

斗山零件查询BREATHER DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
637 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.01801-5100
|
[1] |
. HOUSING;BREATHER
|
|
| 10. |
06.67020-0105
|
[1] |
CLAMP
|
|
| 11. |
65.90201-0122
|
[1] |
BOLT;STUD
|
|
| 12. |
65.97401-5024
|
[2] |
CLIP;PIPE
|
|
| 13. |
65.97401-5019
|
[1] |
CLIP;PIPE
|
|
| 14. |
06.16731-2107
|
[1] |
WASHER
|
|
| 15. |
06.11063-8214
|
[1] |
. NUT
|
|
| 16. |
65.98131-0119
|
[1] |
NIPPLE
|
|
| 17. |
06.56190-0719
|
[1] |
RING;SEAL
|
|
| 2. |
65.01840-0017
|
[1] |
. BRACKET;BREATHER PIPE
|
|
| 20. |
110972-00005
|
[1] |
HOUSING;BREATHER
|
|
| 21. |
401002-00082
|
[1] |
O-RING
|
|
| 22. |
06.01923-3113
|
[3] |
BOLT ASS`Y M8X20
|
|
| 3. |
06.01923-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 4. |
06.01924-3217
|
[2] |
BOLT ASS`Y M10X30
|
|
| 5. |
65.96301-0478
|
[1] |
HOSE;RUBBER
|
|
| 6. |
06.67020-0105
|
[2] |
CLAMP
|
|
| 7. |
65.96301-0455A
|
[1] |
HOSE;RUBBER
|
|
| 8. |
65.97402-0025
|
[2] |
CLAMP
|
|
| 9. |
65.96301-0441A
|
[1] |
HOSE;RUBBER
|
|
