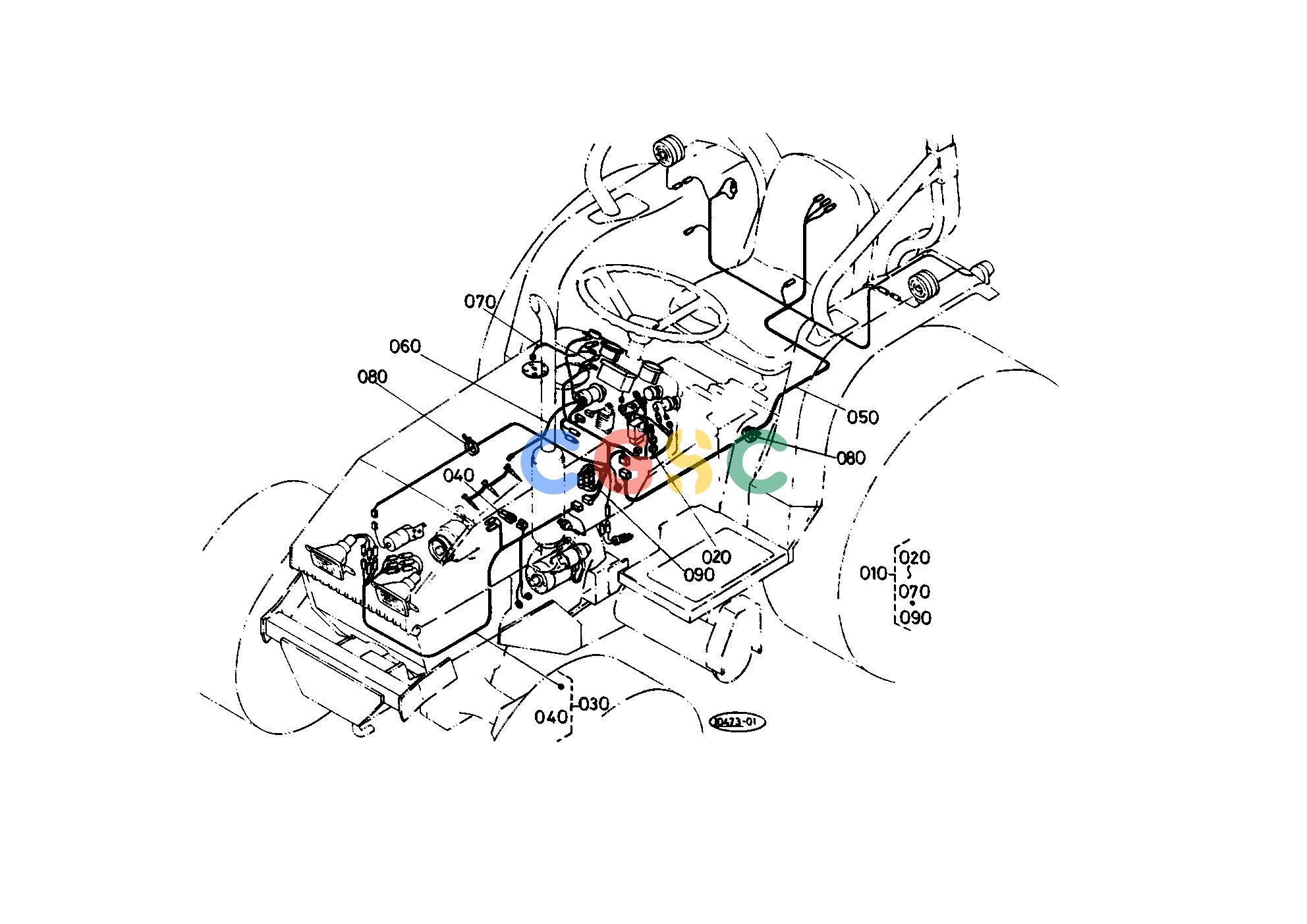

久保田零件查询T04200 WIRE HARNESS ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270155103
|
[1] |
ASSY WIRE HARNESS
|
1.9800(lbs); 0.900
|
| 020. |
3270155113
|
[1] |
WIRE HARNESS
|
0.9900(lbs); 0.450
|
| 030. |
6780055122
|
[1] |
WIRE HARNESS
|
0.2750(lbs); 0.125
|
| 040. |
6711155190
|
[1] |
RING FUSIBLE
|
0.0110(lbs); 0.005
|
| 050. |
3270155133
|
[1] |
WIRE HARNESS
|
0.4400(lbs); 0.200
|
| 060. |
6780055140
|
[1] |
WIRE HARNESS
|
0.1320(lbs); 0.060
|
| 070. |
6630155150
|
[1] |
HARNESS FUEL GAUGE
|
0.0440(lbs); 0.020
|
| 080. |
5358164150
|
[2] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 090. |
5471141230
|
[3] |
FUSE
|
0.0044(lbs); 0.002
|
