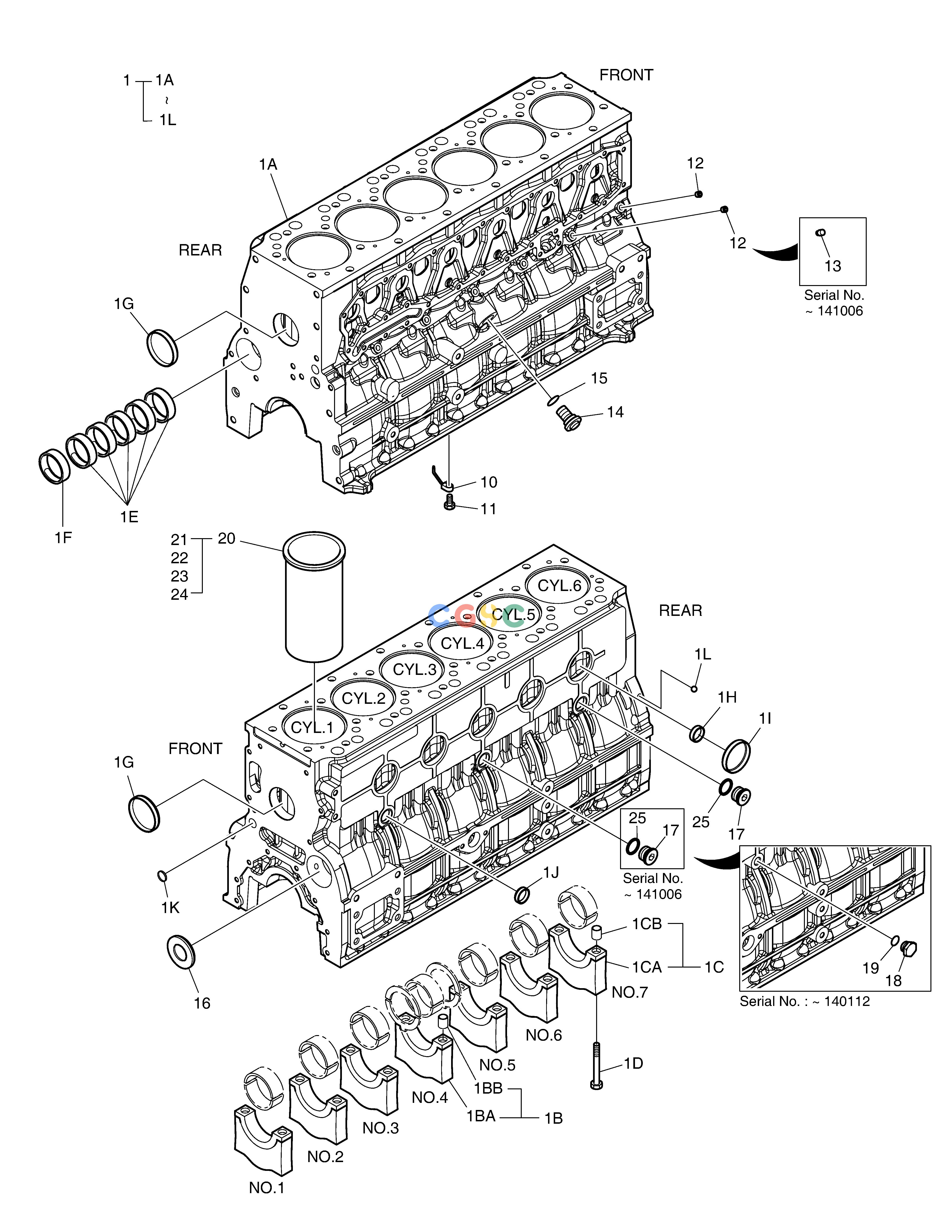

斗山零件查询CYLINDER BLOCK DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00037
|
[1] |
|
150102-00037A
|
| 1. |
150102-00037A
|
[1] |
BLOCK,CYLINDER
|
|
| 1. |
150102-00037C
|
[1] |
BLOCK,CYLINDER
|
150102-00037D
|
| 1. |
150102-00037D
|
[1] |
BLOCK,CYLINDER;BODY TO BRG,CAP
|
|
| 1. |
150102-00004D
|
[1] |
BLOCK ASS`Y,CYLINDER
|
|
| 1. |
65.01101-6092A
|
[1] |
CYLINDER BLOCK ASS'Y
|
150102-00037
|
| 10. |
65.01601-5020
|
[6] |
. OIL SPRAY NOZZLE ASS`Y
|
|
| 11. |
65.05401-5031
|
[6] |
. RELIEF VALVE ASS`Y
|
|
| 12. |
65.90320-0022
|
[1] |
PLUG SCREW
|
|
| 12. |
65.90320-0022
|
[7] |
PLUG SCREW
|
|
| 13. |
65.91001-0013A
|
[6] |
PIN;CORE
|
|
| 14. |
65.05401-5002G
|
[1] |
. RELIEF VALVE
|
|
| 15. |
06.56021-0102
|
[1] |
. O-RING
|
|
| 16. |
65.91605-0002
|
[1] |
COVER;CORE HOLE
|
|
| 17. |
65.90310-0134
|
[1] |
SCREW;PLUG
|
|
| 17. |
65.90310-0134
|
[2] |
SCREW;PLUG
|
|
| 17. |
65.90310-0134
|
[1] |
SCREW;PLUG
|
|
| 17. |
06.08041-2211
|
[1] |
SCREW,PLUG
|
|
| 18. |
65.90310-0135
|
[1] |
PLUG;SCREW
|
|
| 19. |
06.56190-0705
|
[1] |
RING;SEAL
|
|
| 1A. |
150102-00373
|
[1] |
. BLOCK,CYLINDER
|
|
| 1A. |
150102-00373A
|
[1] |
. BLOCK,CYLINDER
|
|
| 1A. |
150102-00373B
|
[1] |
. BLOCK,CYLINDER
|
|
| 1A. |
65.01101-0054A
|
[1] |
CYLINDER BLOCK
|
|
| 1B. |
140202-00016
|
[1] |
. THRUST BEARING CAP ASS`Y
|
|
| 1B. |
65.01105-6005B
|
[1] |
BEARING CAP ASS'Y(No:3)
|
|
| 1BA. |
140202-00017
|
[1] |
.. BEARING CAP;THRUST
|
|
| 1BA. |
65.01105-1051B
|
[1] |
CAP;BEARING
|
|
| 1BB. |
65.91710-0001
|
[2] |
.. RING;STOPPER
|
|
| 1C. |
140202-00018
|
[6] |
. BEARING CAP ASS`Y
|
|
| 1C. |
65.01105-6006B
|
[6] |
BEARING CAP ASS'Y
|
|
| 1CA. |
140202-00019
|
[1] |
.. BEARING CAP
|
|
| 1CA. |
65.01105-1052B
|
[1] |
CAP;BEARING
|
|
| 1CB. |
65.91710-0001
|
[2] |
.. RING;STOPPER
|
|
| 1D. |
120112-01340
|
[14] |
. BOLT
|
|
| 1D. |
65.90020-0066A
|
[14] |
. BOLT;BRG CAP
|
120112-01340
|
| 1E. |
65.04410-0021A
|
[6] |
. BUSH;CAMSHAFT
|
|
| 1F. |
65.04410-0022
|
[1] |
. BUSH;CAMSHAFT
|
|
| 1G. |
65.90302-0009
|
[2] |
. PLUG;CORE
|
|
| 1H. |
65.90302-0042
|
[8] |
. PLUG;CORE
|
|
| 1I. |
65.90302-0034
|
[5] |
. PLUG;CORE
|
|
| 1J. |
65.90302-0041
|
[1] |
. PLUG;CORE
|
|
| 1K. |
65.91606-0041
|
[2] |
. PLUG;CORE
|
|
| 1L. |
06.31641-0618
|
[1] |
. BALL;STEEL
|
|
| 20. |
65.01201-0075A
|
[6] |
CYLINDER LINER
|
|
| 21. |
65.01201-0076
|
[6] |
LINER;CYLINDER-1A
|
|
| 22. |
65.01201-0077
|
[6] |
LINER;CYLINDER-1B
|
|
| 23. |
65.01201-0078
|
[6] |
LINER;CYLINDER-2A
|
|
| 24. |
65.01201-0079
|
[6] |
LINER;CYLINDER-2B
|
|
| 25. |
06.56190-0732
|
[2] |
SEAL;RING
|
|
| 25. |
06.56190-0732
|
[1] |
SEAL;RING
|
|
