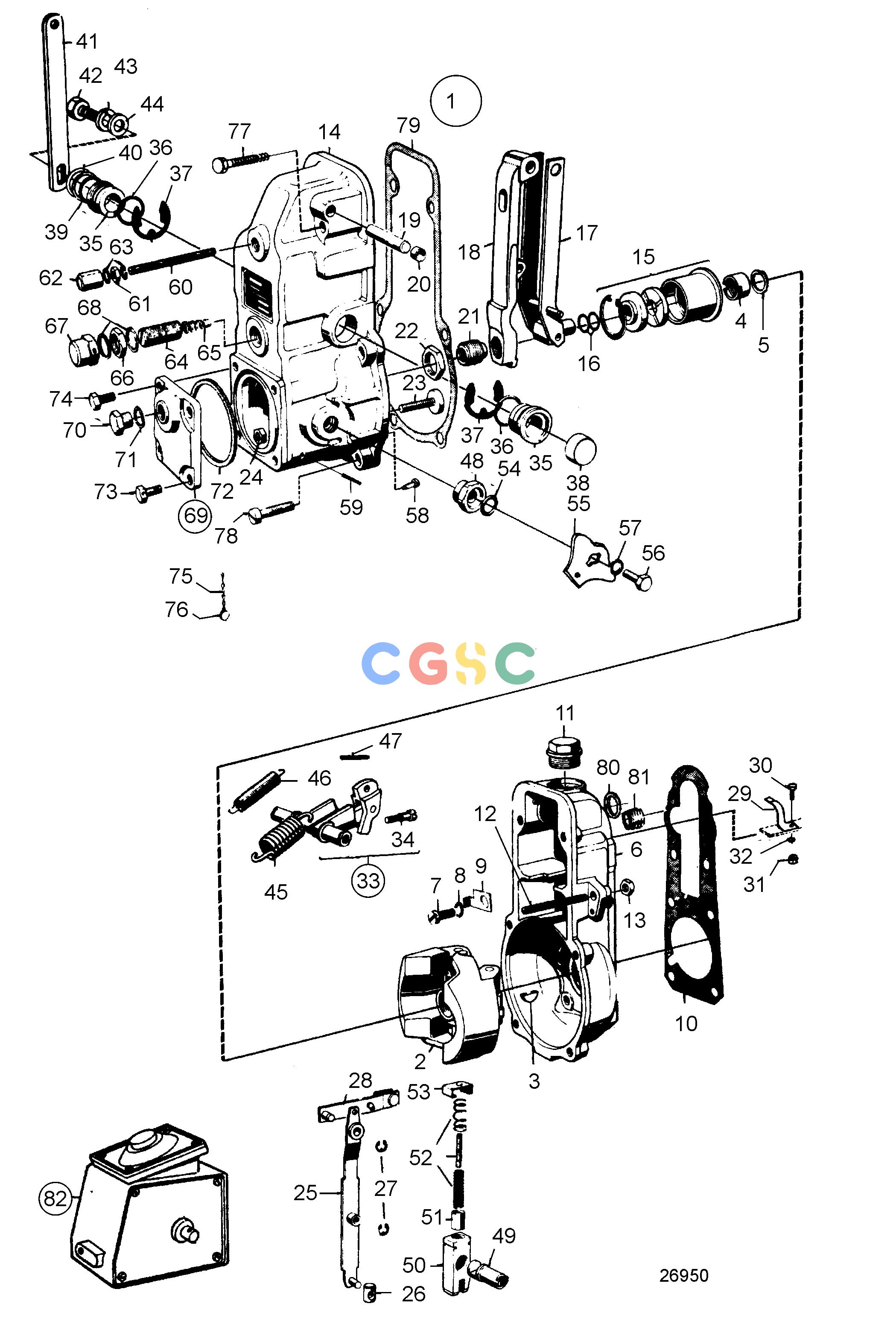

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EFuel SystemCentrifugal GovernorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837736
|
[1] |
Centrifugal governor
|
|
| 2. |
848220
|
[1] |
Regulator weight
|
|
| 3. |
25464
|
[1] |
Key
|
|
| 4. |
238994
|
[1] |
Round nut
|
|
| 5. |
238995
|
[1] |
Spring washer
|
|
| 6. |
870907
|
[1] |
Regulator housing
|
|
| 7. |
956095
|
[8] |
Cross recessed screw
|
|
| 8. |
941906
|
[8] |
Spring washer
|
|
| 9. |
870908
|
[1] |
Bracket
|
|
| 10. |
240058
|
[1] |
Gasket
|
|
| 11. |
240919
|
[1] |
Plug
|
|
| 12. |
243451
|
[1] |
Adjusting screw
|
|
| 13. |
955781
|
[1] |
Hexagon nut
|
|
| 14. |
|
|
|
Replaced by 1pc 243775 cover, 1pc 11996 gasket, 1pc 240391 pin and 1pc 870380 screw.
|
| 15. |
870878
|
[1] |
Bushing
|
|
| 16. |
239007
|
[1] |
Spacer
|
TH=0.2mm
|
| 16. |
239008
|
[1] |
Washer
|
TH=0.4mm
|
| 16. |
239009
|
[1] |
Washer
|
TH=1.0mm
|
| 17. |
240373
|
[1] |
Arm
|
|
| 18. |
241008
|
[1] |
Tensioning arm
|
|
| 19. |
239017
|
[1] |
Shaft
|
|
| 20. |
240374
|
[2] |
Plug
|
|
| 21. |
239019
|
[1] |
Cover
|
|
| 22. |
239020
|
[1] |
Nut
|
|
| 23. |
239021
|
[1] |
Screw
|
|
| 24. |
955781
|
[1] |
Hexagon nut
|
|
| 25. |
240375
|
[1] |
Lever
|
|
| 26. |
240376
|
[1] |
Cube
|
|
| 27. |
951667
|
[2] |
E-circlip
|
|
| 28. |
|
|
|
|
| 29. |
243449
|
[1] |
Companion flange
|
|
| 30. |
955243
|
[1] |
Hexagon screw
|
|
| 31. |
955780
|
[1] |
Hexagon nut
|
|
| 32. |
941905
|
[1] |
Spring washer
|
|
| 33. |
870887
|
[1] |
Swivel arm
|
|
| 34. |
239031
|
[1] |
Screw
|
|
| 35. |
240382
|
[2] |
Bearing bushing
|
|
| 36. |
240383
|
[2] |
Gasket
|
|
| 37. |
942796
|
[2] |
E-circlip
|
|
| 38. |
239037
|
[1] |
Cover
|
|
| 39. |
240063
|
[1] |
Sealing ring
|
|
| 40. |
240046
|
[1] |
Adjusting washer
|
TH=0.3mm
|
| 40. |
233994
|
[1] |
Adjusting washer
|
TH=0.5mm
|
| 40. |
238132
|
[1] |
Washer
|
TH=1.0mm
|
| 41. |
239039
|
[1] |
Arm
|
|
| 42. |
955270
|
[1] |
Hexagon screw
|
|
| 43. |
941906
|
[1] |
Spring washer
|
|
| 44. |
955892
|
[1] |
Washer
|
|
| 45. |
837773
|
[1] |
Bracket
|
|
| 46. |
845009
|
[1] |
Spring
|
|
| 47. |
240370
|
[2] |
Hose
|
|
| 48. |
239048
|
[1] |
Bearing bushing
|
|
| 49. |
239049
|
[1] |
Shaft
|
|
| 50. |
870917
|
[1] |
Link
|
|
| 51. |
239051
|
[1] |
Sleeve
|
|
| 52. |
240387
|
[1] |
Spring
|
L=23mm
|
| 52. |
240388
|
[1] |
Spring
|
L=26,5mm
|
| 52. |
240386
|
[1] |
Spring
|
L=19,5mm
|
| 53. |
870916
|
[1] |
Brace
|
|
| 54. |
239058
|
[1] |
Gasket
|
|
| 55. |
|
|
|
See group 2D
|
| 56. |
955270
|
[1] |
Hexagon screw
|
|
| 57. |
941906
|
[1] |
Spring washer
|
|
| 58. |
240390
|
[1] |
Pin
|
|
| 59. |
240391
|
[1] |
Pin
|
|
| 60. |
240384
|
[1] |
Adjusting screw
|
|
| 61. |
955781
|
[1] |
Hexagon nut
|
|
| 62. |
870636
|
[1] |
Nut
|
|
| 63. |
190990
|
[1] |
Gasket
|
|
| 64. |
239044
|
[1] |
Screw
|
|
| 65. |
239045
|
[1] |
Spring
|
|
| 66. |
239046
|
[1] |
Nut
|
|
| 67. |
870637
|
[1] |
Nut
|
|
| 68. |
18839
|
[2] |
Gasket
|
|
| 69. |
846187
|
[1] |
Cover
|
|
| 70. |
240570
|
[1] |
Screw
|
|
| 71. |
18836
|
[1] |
Gasket
|
|
| 72. |
240394
|
[1] |
Gasket
|
|
| 73. |
845229
|
[2] |
Screw
|
|
| 74. |
955268
|
[2] |
Hexagon screw
|
|
| 75. |
|
|
|
|
| 76. |
|
|
|
|
| 77. |
956100
|
[2] |
Cross recessed screw
|
|
| 78. |
956097
|
[4] |
Cross recessed screw
|
|
| 79. |
6643417
|
[1] |
Gasket
|
|
| 80. |
240017
|
[1] |
Gasket
|
|
| 81. |
240120
|
[1] |
Bushing
|
|
| 82. |
837738
|
[1] |
Smoke limiter
|
|
