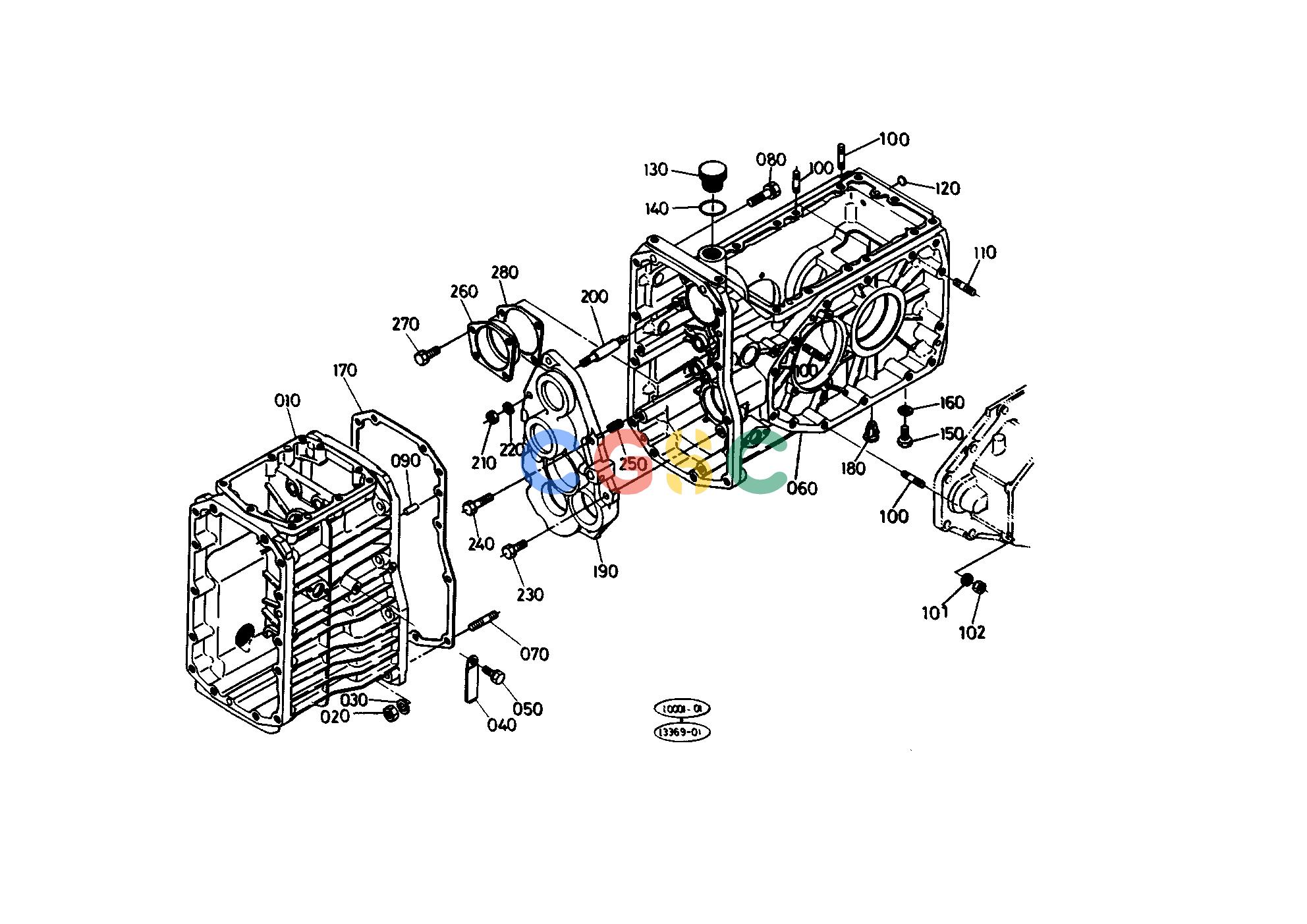

久保田零件查询T04700 TRANSMISSION CASE CLUTCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6711111114
|
[1] |
CASE TRANSMISSION
|
11.0000(lbs); 5.000
|
| 020. |
0217650100
|
[10] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
0451250100
|
[10] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 040. |
1381667580
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 040. |
1382467580
|
[1] |
CLAMP CORD
|
0.0132(lbs); 0.006
|
| 050. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 060. |
6711111120
|
[1] |
CASE DIFF.GEAR
|
22.4400(lbs); 10.200
|
| 070. |
0155451040
|
[10] |
STUD
|
0.0638(lbs); 0.029
|
| 080. |
0112351050
|
[2] |
BOLT
|
0.0770(lbs); 0.035
|
| 090. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 100. |
0155451030
|
[8] |
STUD
|
0.0440(lbs); 0.020
|
| 101. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 102. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
0155451040
|
[2] |
STUD
|
0.0638(lbs); 0.029
|
| 120. |
0631175012
|
[2] |
PLUG
|
0.0044(lbs); 0.002
|
| 130. |
0631460060
|
[1] |
PLUG OIL FILLER
|
0.0638(lbs); 0.029
|
| 140. |
0481100260
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 150. |
0633135016
|
[2] |
PLUG
|
0.0880(lbs); 0.040
|
| 160. |
0471701600
|
[2] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 170. |
6711111130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 180. |
6721111140
|
[4] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 190. |
6780011413
|
[1] |
RETAINER BEARING
|
5.7200(lbs); 2.600
|
| 200. |
6780011432
|
[1] |
STUD
|
0.1320(lbs); 0.060
|
| 210. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 220. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 230. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 240. |
0112350840
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 250. |
6711111420
|
[2] |
PIN KNOCK
|
0.0110(lbs); 0.005
|
| 260. |
6636111510
|
[1] |
HOLDER BEARING
|
0.3080(lbs); 0.140
|
| 270. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 280. |
6711111540
|
[1] |
SHIM
|
0.0066(lbs); 0.003
|
