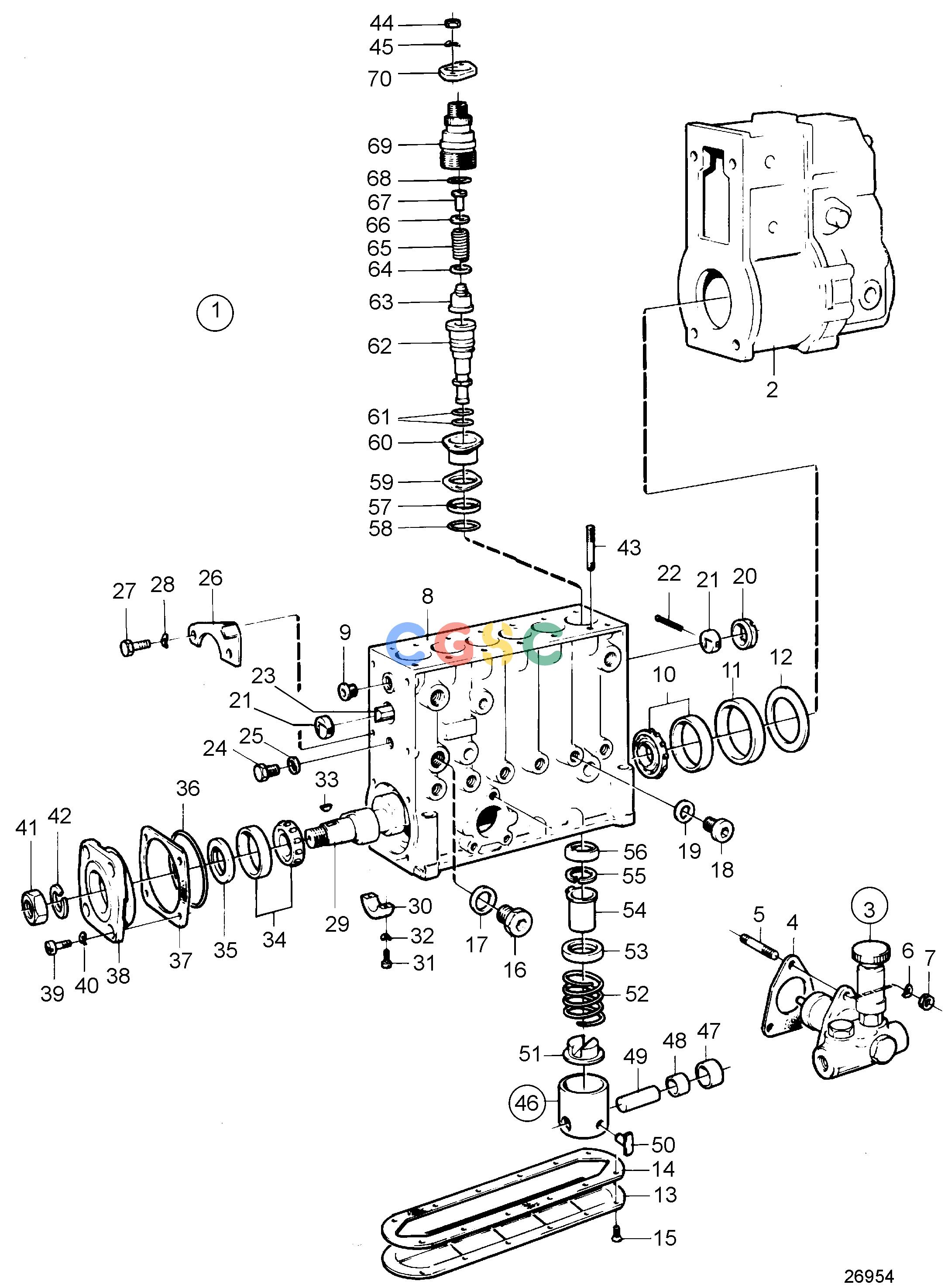

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EFuel SystemFuel Injection PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
586 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847319
|
[1] |
Injection pump
|
|
| 2. |
837736
|
[1] |
Centrifugal governor
|
|
| 3. |
243083
|
[1] |
Feed pump
|
|
| 4. |
239896
|
[1] |
Gasket
|
|
| 5. |
130673
|
[3] |
Stud
|
|
| 6. |
941906
|
[3] |
Spring washer
|
|
| 7. |
940197
|
[3] |
Hexagon nut
|
|
| 8. |
|
|
|
|
| 9. |
844988
|
[1] |
Plug
|
|
| 10. |
240023
|
[1] |
Roller bearing
|
|
| 11. |
240032
|
[1] |
Ring
|
|
| 12. |
240033
|
[1] |
Shim
|
TH=1.2mm
|
| 12. |
240034
|
[1] |
Shim
|
TH=1.5mm
|
| 12. |
240035
|
[1] |
Shim
|
TH=1.8mm
|
| 12. |
240036
|
[1] |
Shim
|
TH=2.0mm
|
| 13. |
240947
|
[1] |
Cover
|
|
| 14. |
240948
|
[1] |
Gasket
|
|
| 15. |
956205
|
[12] |
Cross recessed screw
|
|
| 16. |
243263
|
[1] |
Sealing plug
|
|
| 17. |
240017
|
[1] |
Gasket
|
|
| 18. |
180707
|
[6] |
Plug
|
|
| 19. |
18836
|
[6] |
Gasket
|
|
| 20. |
240015
|
[1] |
Bushing
|
|
| 21. |
240014
|
[2] |
Bushing
|
|
| 22. |
244008
|
[1] |
Spring pin
|
|
| 23. |
241746
|
[1] |
Control rod
|
|
| 24. |
6642955
|
[1] |
Lock screw
|
|
| 25. |
947620
|
[1] |
Gasket
|
|
| 26. |
241647
|
[1] |
Indicator
|
|
| 27. |
956092
|
[2] |
Cross recessed screw
|
|
| 28. |
241294
|
[2] |
Washer
|
|
| 29. |
240789
|
[1] |
Camshaft
|
|
| 30. |
240426
|
[1] |
Bearing
|
|
| 31. |
240427
|
[2] |
Screw
|
|
| 32. |
941906
|
[2] |
Spring washer
|
|
| 33. |
35168
|
[1] |
Key
|
|
| 34. |
240023
|
[1] |
Roller bearing
|
|
| 35. |
240022
|
[1] |
Sealing ring
|
|
| 36. |
243299
|
[1] |
O-ring
|
|
| 37. |
240024
|
[1] |
Shim
|
TH=0,10mm
|
| 37. |
240025
|
[1] |
Shim
|
TH=0.12mm
|
| 37. |
240026
|
[1] |
Shim
|
TH=0.14mm
|
| 37. |
240027
|
[1] |
Shim
|
TH=0.16mm
|
| 37. |
240028
|
[1] |
Shim
|
TH=0.18mm
|
| 37. |
240029
|
[1] |
Shim
|
TH=0.30mm
|
| 37. |
240030
|
[1] |
Shim
|
TH=0.50mm
|
| 38. |
240021
|
[1] |
Bearing cover
|
|
| 39. |
956094
|
[4] |
Cross recessed screw
|
|
| 40. |
941906
|
[4] |
Spring washer
|
|
| 41. |
955806
|
[1] |
Hexagon nut
|
|
| 42. |
941913
|
[1] |
Spring washer
|
|
| 43. |
244380
|
[12] |
Stud
|
|
| 44. |
943927
|
[12] |
Hexagon nut
|
|
| 45. |
941908
|
[12] |
Spring washer
|
|
| 46. |
239982
|
[6] |
Tappet
|
|
| 47. |
240779
|
[6] |
Bearing bolt
|
|
| 48. |
240780
|
[6] |
Bushing
|
|
| 49. |
846577
|
[6] |
Bearing
|
|
| 50. |
238379
|
[6] |
Plate
|
|
| 51. |
244685
|
[6] |
Spring disc
|
|
| 52. |
849613
|
[6] |
Support bracket kit
|
|
| 53. |
239984
|
[6] |
Spring disc
|
|
| 54. |
240782
|
[6] |
Control sleeve
|
|
| 55. |
239990
|
[6] |
Lock ring
|
|
| 56. |
239991
|
[6] |
Cover
|
|
| 57. |
240002
|
[6] |
Gasket
|
|
| 58. |
241677
|
[6] |
Washer
|
|
| 59. |
844990
|
[1] |
Adjusting washer
|
TH=0.40mm
|
| 59. |
847428
|
[1] |
Adjusting plate
|
TH=0.45mm
|
| 59. |
844991
|
[1] |
Adjusting washer
|
TH=0.50mm
|
| 59. |
847429
|
[1] |
Adjusting plate
|
TH=0.60mm
|
| 59. |
844992
|
[1] |
Adjusting washer
|
TH=0.70mm
|
| 59. |
844993
|
[1] |
Adjusting washer
|
TH=0.80mm
|
| 59. |
847430
|
[1] |
Adjusting plate
|
TH=0.85mm
|
| 59. |
845238
|
[1] |
Washer
|
TH=0.90mm
|
| 59. |
844994
|
[1] |
Adjusting washer
|
TH=1.00mm
|
| 59. |
844995
|
[1] |
Adjusting washer
|
TH=1.10mm
|
| 59. |
244633
|
[1] |
Shim
|
TH=1.20mm
|
| 59. |
844996
|
[1] |
Adjusting washer
|
TH=1.25mm
|
| 59. |
244634
|
[1] |
Shim
|
TH=1.30mm
|
| 59. |
847431
|
[1] |
Adjusting plate
|
TH=1.35mm
|
| 59. |
244635
|
[1] |
Shim
|
TH=1.40mm
|
| 59. |
847432
|
[1] |
Adjusting plate
|
TH=1.45mm
|
| 59. |
244381
|
[1] |
Shim
|
TH=1.50mm
|
| 59. |
244382
|
[1] |
Shim
|
TH=1.60mm
|
| 59. |
244383
|
[1] |
Shim
|
TH=1.70mm
|
| 59. |
244384
|
[1] |
Shim
|
TH=1.80mm
|
| 59. |
244385
|
[1] |
Shim
|
TH=1.90mm
|
| 59. |
244386
|
[1] |
Shim
|
TH=2.00mm
|
| 59. |
847433
|
[1] |
Adjusting plate
|
TH=2.10mm
|
| 60. |
243741
|
[6] |
Bushing
|
|
| 61. |
240422
|
[12] |
O-ring
|
|
| 62. |
837733
|
[6] |
Pump element
|
|
| 63. |
243754
|
[6] |
Delivery valve
|
|
| 64. |
239993
|
[6] |
Sealing washer
|
|
| 65. |
240969
|
[6] |
Compression spring
|
|
| 66. |
240972
|
[1] |
Washer
|
TH=0.2mm
|
| 66. |
240973
|
[1] |
Washer
|
TH=0.5mm
|
| 67. |
240971
|
[6] |
Peg
|
|
| 68. |
240001
|
[6] |
O-ring
|
|
| 69. |
243742
|
[6] |
Retainer
|
|
| 70. |
243743
|
[12] |
Washer
|
|
| 70. |
845240
|
[1] |
Repair kit
|
See group 10A
|
