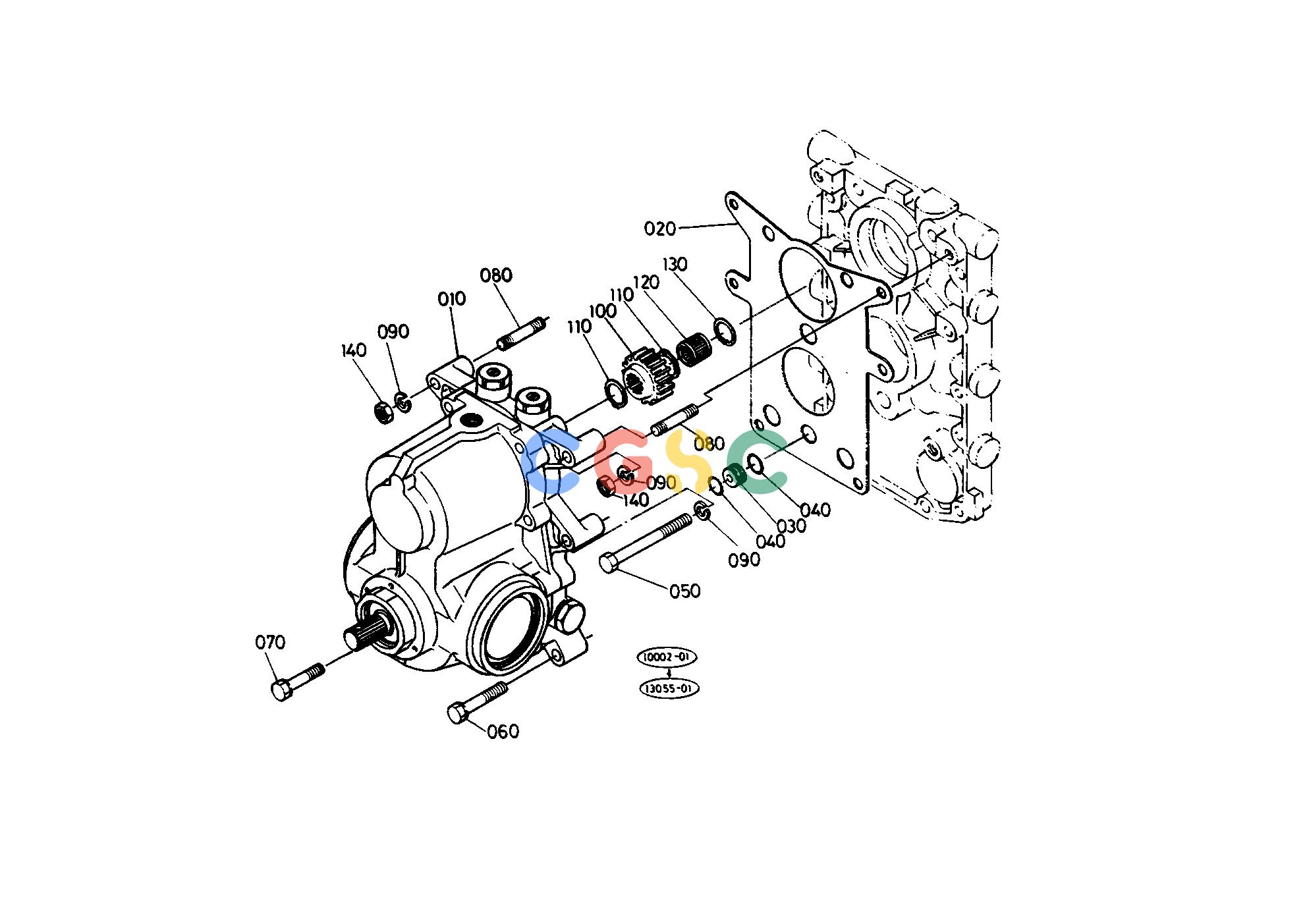

久保田零件查询T04900 HST CLUTCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6636311600
|
[1] |
ASSY HST
|
41.3600(lbs); 18.800
|
| 020. |
6630112150
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
6630112160
|
[1] |
PIN
|
0.0440(lbs); 0.020
|
| 040. |
0481100140
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 050. |
0115351001
|
[2] |
BOLT
|
0.1320(lbs); 0.060
|
| 060. |
0112351055
|
[1] |
BOLT
|
0.0836(lbs); 0.038
|
| 070. |
0112351045
|
[1] |
BOLT
|
0.0704(lbs); 0.032
|
| 080. |
0155451050
|
[2] |
STUD
|
0.0748(lbs); 0.034
|
| 090. |
0451250100
|
[6] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 100. |
6630111712
|
[1] |
GEAR
|
0.4400(lbs); 0.200
|
| 110. |
0461200200
|
[2] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 120. |
6630111750
|
[1] |
BEARING NEEDLE
|
0.0770(lbs); 0.035
|
| 130. |
6630111770
|
[1] |
CIR-CLIP
|
0.0022(lbs); 0.001
|
| 140. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
