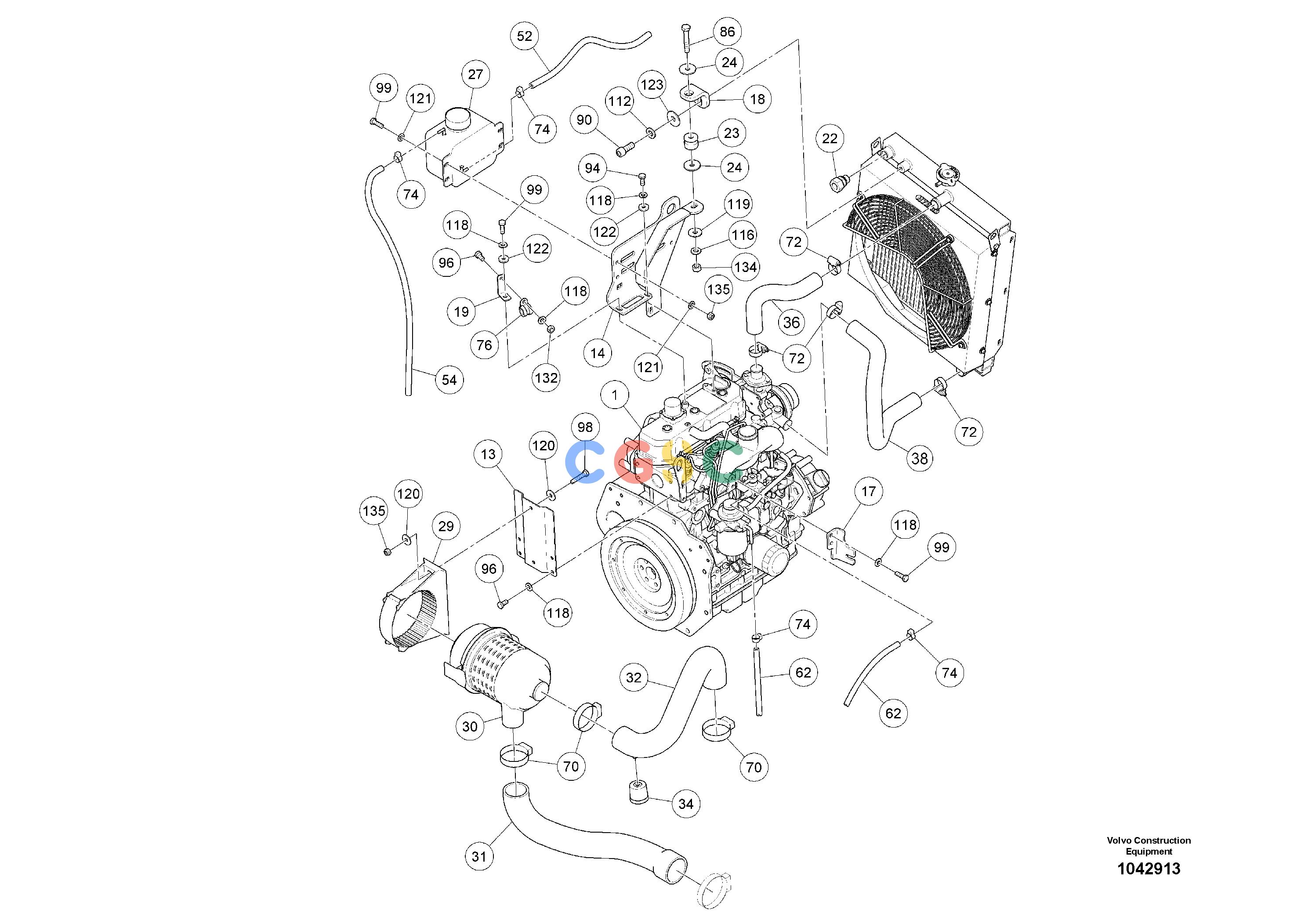

Pos.	Part No	Qty	Parts name	Comments
1.	RM80859978	[1]	Engine	S/N 21718-, A1700 T4I
1.	RM80774961	[1]	Engine	S/N -20717, A1700
13.	RM80782493	[1]	Bracket
14.	RM80806599	[1]	Bracket
17.	RM80790827	[1]	Bracket
18.	RM80805310	[1]	Support
19.	RM80805898	[1]	Bracket
22.	RM14132948	[2]	Screw	S/N - 275726
22.	RM80891864	[2]	Connector	S/N 275727 -
23.	RM80815616	[3]	Rubber damper	S/N 18600-
24.	RM59302927	[6]	Washer
27.	RM54467329	[1]	Plastic bottle
29.	RM80778210	[1]	Bracket
30.	RM80808330	[1]	Air cleaner	S/N -20719
30.	RM80853484	[1]	Air cleaner	S/N 20720-
31.	RM80794241	[1]	Hose	ROUGH AIR
32.	RM80794282	[1]	Hose	CLEAN AIR
34.	RM80778046	[1]	Service interv indicator
36.	RM80794308	[1]	Hose
38.	RM80794290	[1]	Hose
52.	RM80798424	[1]	Hose
54.	RM80798432	[1]	Hose
62.	RM80797442	[2]	Hose
70.	RM80798622	[3]	Hose clamp
72.	RM80666209	[4]	Clip	S/N 18600-
74.	RM50274299	[7]	Hose clamp
76.	RM13911565	[1]	Clamp
86.	RM96744503	[1]	Hexagon screw
90.	RM96725007	[5]	Hex. socket screw
94.	RM96718820	[12]	Hexagon screw	S/N 20534-
96.	RM96702816	[4]	Hexagon screw
98.	RM96713219	[2]	Hexagon screw
99.	RM96713185	[7]	Hexagon screw	S/N 20534-
112.	RM14261002	[13]	Lock washer
116.	RM13907761	[11]	Lock washer
118.	RM58854316	[22]	Lock washer	S/N 20534-
119.	RM14084131	[5]	Plain washer
120.	RM58867052	[4]	Plain washer
121.	RM96712898	[16]	Plain washer	S/N 20534-
122.	RM96712831	[4]	Plain washer	S/N 20534-
123.	RM96726179	[1]	Plain washer
132.	RM96712799	[3]	Hexagon nut	S/N 20534-
134.	RM96712807	[3]	Hexagon nut
135.	RM14083455	[14]	Jam nut	S/N 20534-
