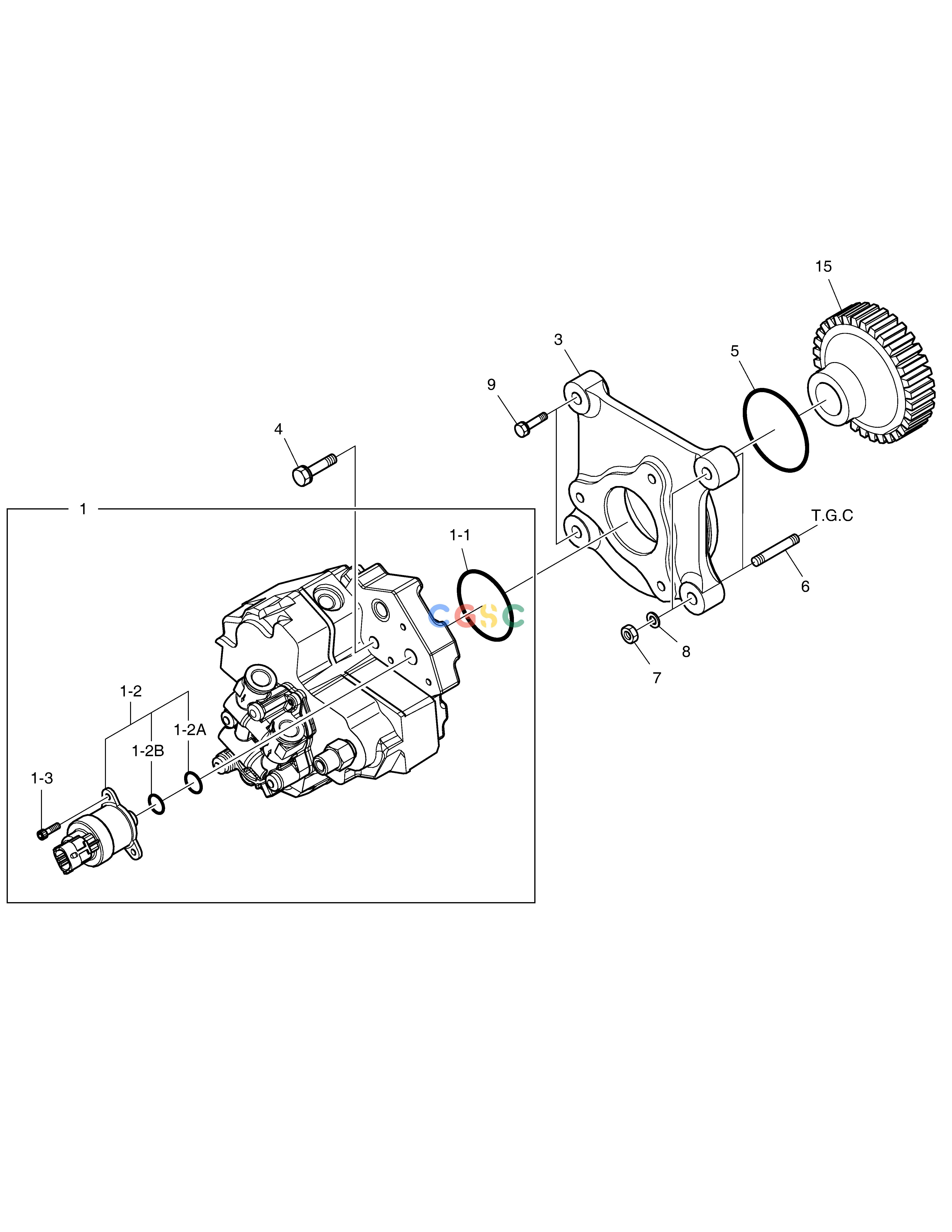

斗山零件查询INJECTION PUMP DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.10501-7005A
|
[1] |
PUMP;HIGH PRESSURE
|
|
| 1-1. |
65.96501-0439
|
[1] |
. O-RING
|
|
| 1-2. |
800215-00004
|
[1] |
. FUEL METERING UINT
|
|
| 1-2A. |
401002-00195
|
[1] |
O-RING
|
|
| 1-2B. |
401002-00196
|
[1] |
O-RING
|
|
| 1-3. |
120705-00042
|
[3] |
BOLT
|
|
| 15. |
65.11301-0038
|
[1] |
GEAR;PUMP DRIVE
|
|
| 3. |
65.11304-0001
|
[1] |
FLANGE;INJECTION PUMP
|
|
| 4. |
65.90020-0121
|
[3] |
BOLT;COLLARED HEX
|
|
| 5. |
06.56020-0115
|
[1] |
O-RING
|
|
| 6. |
06.06125-8709
|
[2] |
BOLT;STUD M8X35
|
|
| 7. |
06.11063-8214
|
[2] |
. NUT
|
|
| 8. |
06.16731-2107
|
[2] |
WASHER
|
|
| 9. |
06.01923-3118
|
[2] |
BOLT ASS`Y M8X35
|
|
