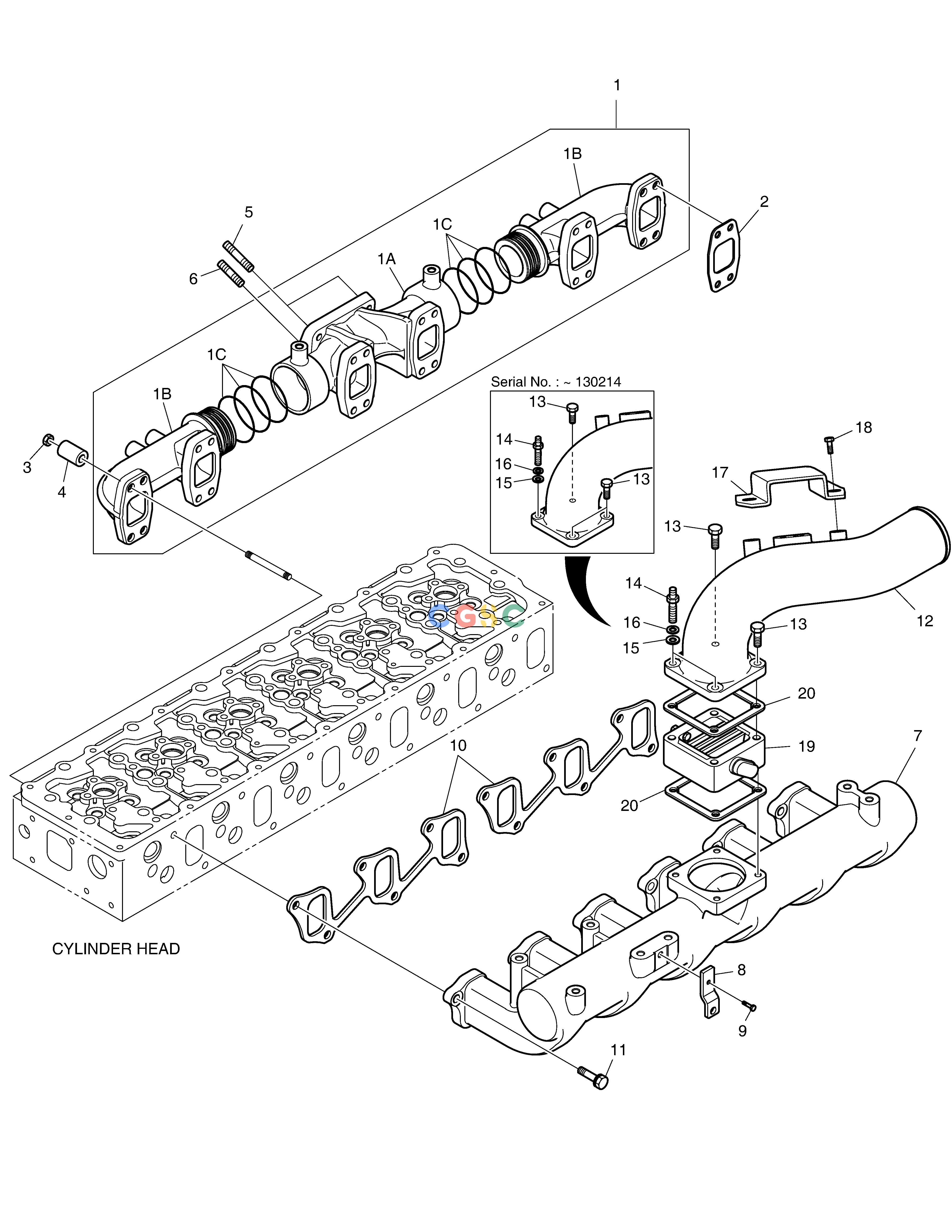

斗山零件查询INTAKE & EXHAUST MANIFOLD DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.08100-6088B
|
[1] |
. EXHAUST MANIFOLD ASS`Y
|
|
| 10. |
65.08902-0030A
|
[2] |
GASKET;MANIFOLD
|
|
| 11. |
06.01923-3218
|
[12] |
BOLT ASS`Y M10X35
|
|
| 12. |
65.08202-0183A
|
[1] |
STAKE;INTAKE
|
|
| 13. |
06.01923-3125
|
[2] |
. BOLT ASS`Y M8X70
|
|
| 13. |
06.01923-3125
|
[3] |
. BOLT ASS`Y M8X70
|
|
| 14. |
65.90201-0136
|
[2] |
BOLT;STUD
|
|
| 14. |
65.90201-0136
|
[1] |
BOLT;STUD
|
|
| 15. |
06.15010-2311
|
[2] |
WASHER
|
|
| 15. |
06.15010-2311
|
[1] |
WASHER
|
|
| 16. |
06.16731-2107
|
[2] |
WASHER
|
|
| 16. |
06.16731-2107
|
[1] |
WASHER
|
|
| 17. |
65.08204-0004A
|
[1] |
COVER
|
|
| 18. |
06.01923-2910
|
[2] |
BOLT ASS'Y M6X12
|
|
| 19. |
65.26803-7028B
|
[1] |
AIR HEATER
|
|
| 1A. |
65.08101-0263
|
[1] |
.. MANIFOLD;EXHAUST
|
|
| 1B. |
65.08101-0264A
|
[2] |
.. MANIFOLD;EXHAUST
|
|
| 1C. |
65.96507-0059
|
[8] |
.. RING;SEAL
|
|
| 2. |
65.08901-0045
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 20. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 3. |
65.90535-0003
|
[24] |
NUT
|
|
| 4. |
65.91701-0086
|
[24] |
SPACER
|
|
| 5. |
65.90201-0076
|
[2] |
. BOLT;STUD
|
|
| 6. |
65.90201-0073
|
[2] |
. BOLT;STUD
|
|
| 7. |
65.08201-5075
|
[1] |
MANIFOLD;INTAKE
|
|
| 8. |
65.12303-0009
|
[1] |
BRACKET;FUEL PIPE
|
|
| 9. |
06.01913-3213
|
[1] |
BOLT ASS'Y M10X20
|
|
