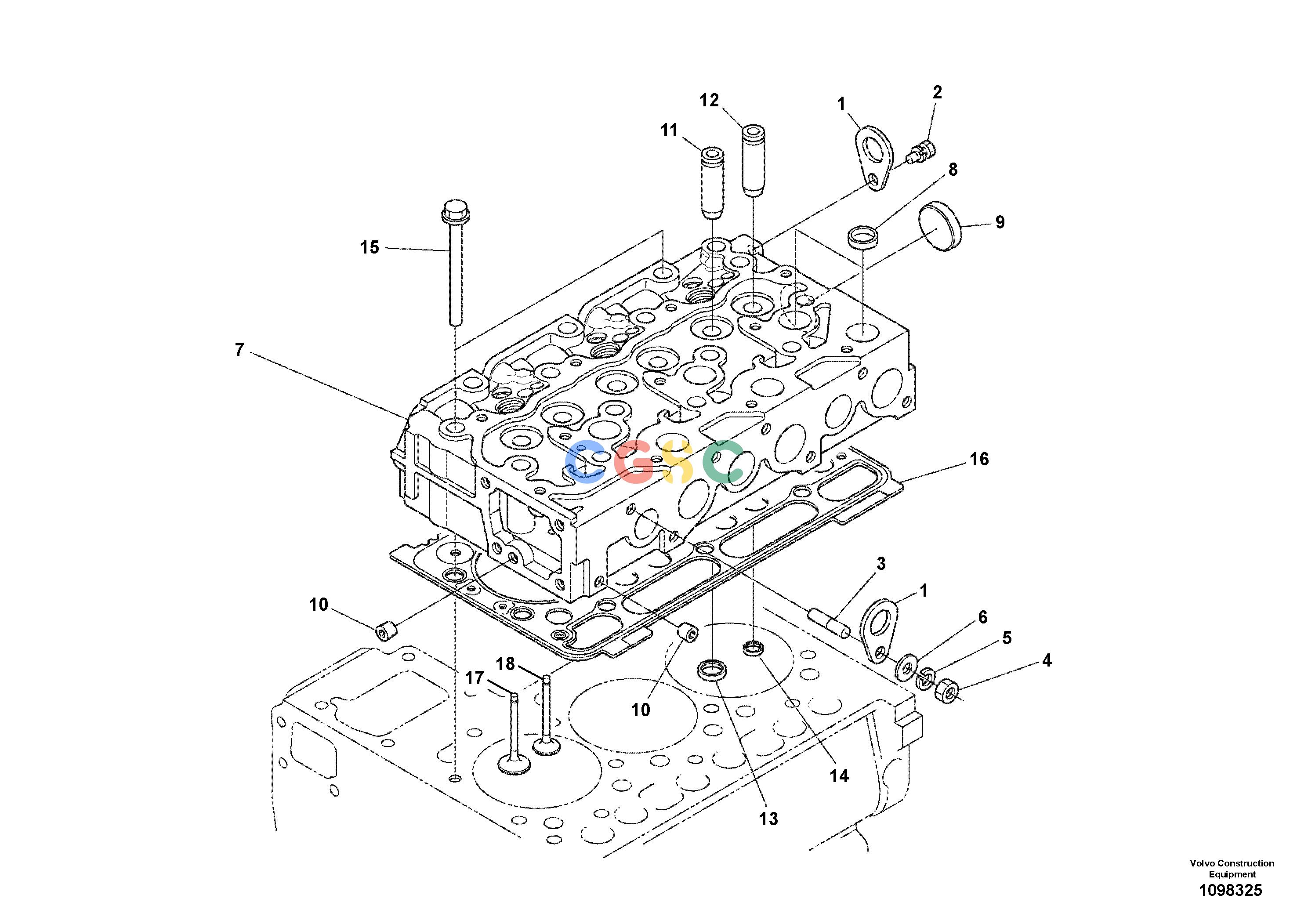

沃尔沃零件查询DD25 Cylinder headS/N 650291 - NoneNone12759568Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
347 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE16658931
|
[2] |
Hook
|
|
| 2. |
VOE16679212
|
[1] |
Bolt
|
|
| 3. |
VOE16660415
|
[1] |
Stud
|
|
| 4. |
VOE16660792
|
[1] |
Nut
|
|
| 5. |
VOE16678622
|
[1] |
Tab washer
|
|
| 6. |
VOE16660435
|
[1] |
Washer
|
|
| 7. |
VOE16658951
|
[1] |
Cylinder head
|
|
| 8. |
VOE16658959
|
[9] |
Cap
|
|
| 9. |
VOE16658973
|
[1] |
Cap
|
|
| 10. |
VOE16658978
|
[2] |
Plug
|
|
| 11. |
VOE16658981
|
[3] |
Guide sleeve
|
|
| 12. |
VOE16658983
|
[3] |
Guide sleeve
|
|
| 13. |
VOE16659006
|
[3] |
Valve seat
|
|
| 14. |
VOE16659011
|
[3] |
Exhaust valve
|
|
| 15. |
VOE16658996
|
[14] |
Bolt
|
|
| 16. |
VOE17230236
|
[1] |
Gasket
|
1.15 MM
|
| 16. |
VOE17230240
|
[1] |
Gasket
|
1.20 MM
|
| 16. |
VOE17230241
|
[1] |
Gasket
|
1.25 MM
|
| 16. |
VOE17230243
|
[1] |
Gasket
|
1.30 MM
|
| 16. |
VOE17230246
|
[1] |
Gasket
|
1.35 MM
|
| 17. |
VOE16689652
|
[3] |
Valve
|
INLET
|
| 18. |
VOE16689653
|
[3] |
Valve
|
EXHAUST
|
