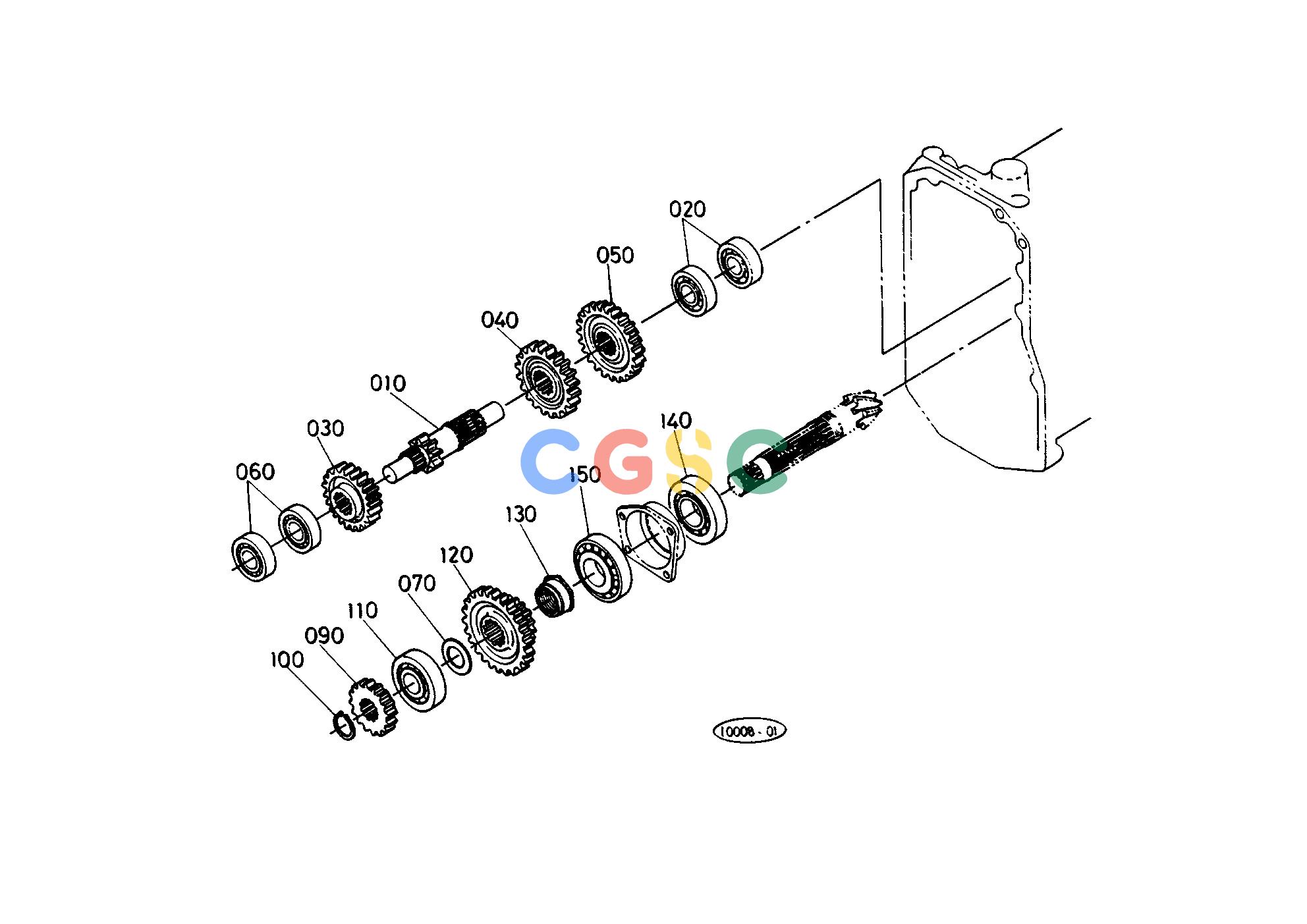

久保田零件查询T05400 4TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780015210
|
[1] |
SHAFT
|
1.3860(lbs); 0.630
|
| 020. |
0810106304
|
[2] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 030. |
6630115240
|
[1] |
GEAR
|
0.7700(lbs); 0.350
|
| 040. |
6630115220
|
[1] |
GEAR
|
0.8580(lbs); 0.390
|
| 050. |
6711115234
|
[1] |
GEAR
|
1.0450(lbs); 0.475
|
| 060. |
0810106304
|
[2] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 070. |
6780014450
|
[1] |
COLLAR
|
0.0000(lbs); 0.000
|
| 090. |
6637115320
|
[1] |
GEAR
|
0.3960(lbs); 0.180
|
| 100. |
0461200250
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 110. |
0810106305
|
[1] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 120. |
6630115360
|
[1] |
GEAR
|
1.3860(lbs); 0.630
|
| 130. |
6711115372
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 140. |
6636115380
|
[1] |
BEARING TAPER-ROLLER
|
0.6380(lbs); 0.290
|
| 150. |
6636115390
|
[1] |
BEARING TAPER-ROLLER
|
0.5060(lbs); 0.230
|
