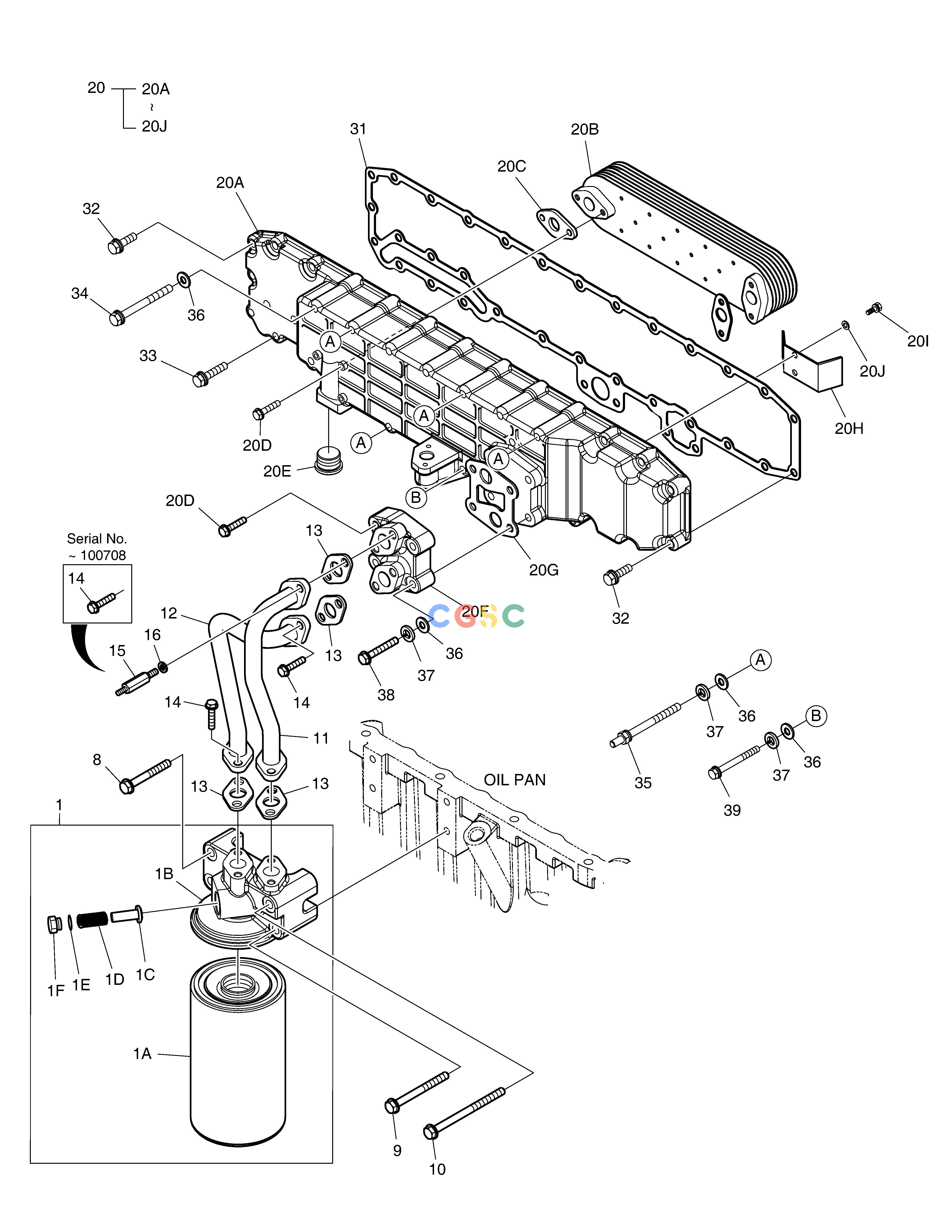

斗山零件查询OIL FILTER & OIL COOLER DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05501-7089A
|
[1] |
OIL FILTER ASS`Y
|
400404-00071
|
| 1. |
400404-00071A
|
[1] |
|
|
| 10. |
06.01923-3228
|
[1] |
BOLT ASS'Y M10X85
|
|
| 11. |
65.05701-5573B
|
[1] |
PIPE;OIL
|
|
| 12. |
65.05701-5574
|
[1] |
PIPE;OIL
|
|
| 13. |
65.05903A0001
|
[4] |
GASKET
|
|
| 14. |
06.01913-3114
|
[8] |
BOLT ASS`Y M8X22
|
|
| 14. |
06.01913-3114
|
[7] |
BOLT ASS`Y M8X22
|
|
| 15. |
120117-00033
|
[1] |
BOLT,STUD
|
|
| 16. |
06.16731-2107
|
[1] |
WASHER
|
|
| 1A. |
65.05510-5032A
|
[1] |
. FILTER;OIL
|
400508-00091
|
| 1A. |
400508-00091
|
[1] |
. CARTRIDGE,OIL FILTER
|
|
| 1B. |
65.05503-5056
|
[1] |
HEAD;OIL FILTER
|
400505-00064
|
| 1B. |
400505-00064
|
[1] |
|
|
| 1C. |
65.05518-0006
|
[1] |
VALVE
|
|
| 1D. |
65.97601-0075
|
[1] |
. SPRING
|
|
| 1E. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 1F. |
65.90310-0065
|
[1] |
SCREW;PLUG
|
|
| 20. |
65.05601-7079B
|
[1] |
OIL COOLER ASS`Y
|
400206-00474
|
| 20. |
400206-00474
|
[1] |
|
|
| 20A. |
65.05604-0030A
|
[1] |
. HOUSING;OIL COOLER
|
|
| 20B. |
65.05606-5032A
|
[1] |
. ELEMENT;OIL COOLER
|
|
| 20C. |
65.05902-0022
|
[2] |
. GASKET;OIL COOLER
|
|
| 20D. |
06.01923-3119
|
[6] |
BOLT ASS`Y M8X40
|
|
| 20E. |
65.54109-0005A
|
[1] |
. SCREW;PLUG M22X1.5
|
|
| 20F. |
65.05607-5003
|
[1] |
FLANGE;OIL COOLER
|
|
| 20G. |
65.05901-0031
|
[1] |
. GASKET;OIL FILTER
|
400622-00011
|
| 20G. |
400622-00011
|
[1] |
. GASKET,OIL FILTER
|
|
| 20H. |
65.05610-0007A
|
[1] |
. GUIDER;WATER FLOW
|
|
| 20I. |
06.02097-8306
|
[2] |
. BOLT;SOCKET
|
|
| 20J. |
06.16731-2105
|
[2] |
. WASHER
|
|
| 31. |
65.05902-0023
|
[1] |
GASKET;OIL COOLER
|
|
| 32. |
06.01923-3117
|
[12] |
. BOLT ASS`Y M8X30
|
|
| 33. |
06.01923-3119
|
[8] |
BOLT ASS`Y M8X40
|
|
| 34. |
06.01913-3128
|
[7] |
BOLT M8X85
|
|
| 35. |
65.90201-0135
|
[4] |
BOLT;STUD
|
|
| 36. |
06.15010-2311
|
[14] |
WASHER
|
|
| 37. |
06.16731-2107
|
[7] |
WASHER
|
|
| 38. |
06.01013-9127
|
[2] |
BOLT M8X120
|
|
| 39. |
06.01913-3129
|
[1] |
BOLT ASS`Y M8X90
|
|
| 8. |
06.01923-3222
|
[2] |
BOLT ASS`Y
|
|
| 9. |
06.01923-3225
|
[1] |
BOLT ASS'Y M10X70
|
|
