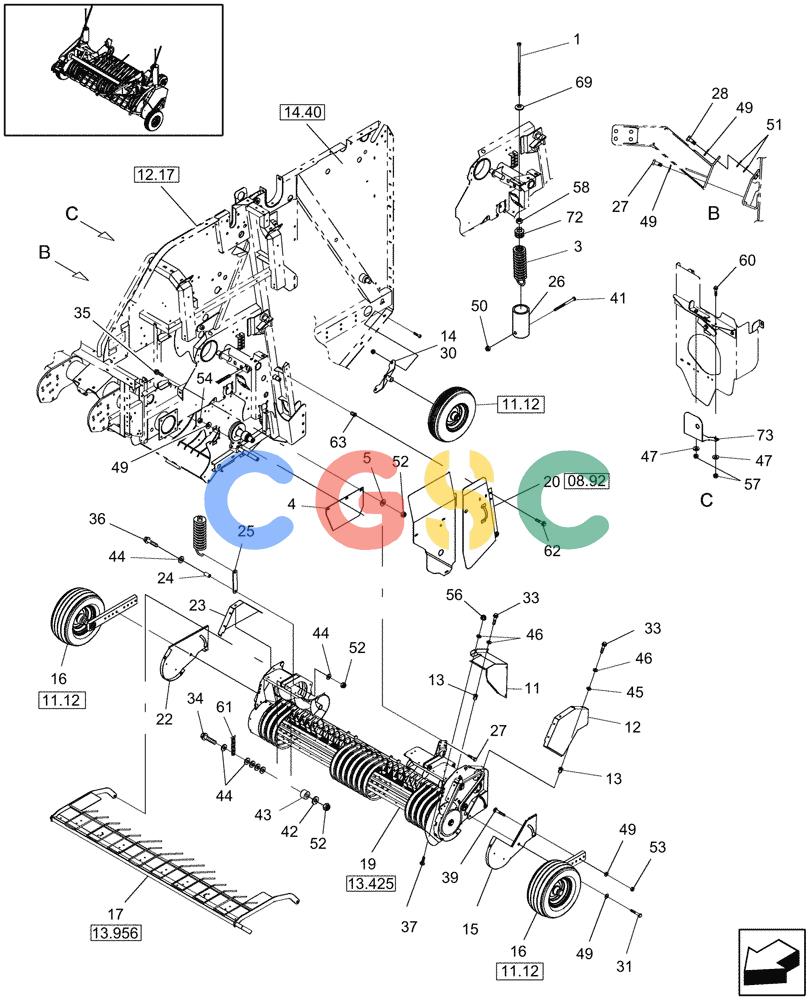

| 1. |
86632865
|
[2] |
BOLT,444.50mm
|
NH
1/2"-13 x 17-1/2" L
|
| 3. |
86630851
|
[2] |
SPRING
|
NH
|
| 4. |
86631989
|
[2] |
SKIRT
|
NH
Rotor
|
| 5. |
235126
|
[6] |
WASHER,10.3mm ID x 38mm OD x 1.7mm Thk
|
NH
Special
|
| 8. |
87017328
|
[2] |
PIN,9.53mm OD
|
PA
|
| 9. |
86640157
|
[2] |
SUPPORT
|
NH
|
| 11. |
87045582
|
[1] |
SHIELD
|
PA
|
| 12. |
86626278
|
[1] |
SHIELD
|
PA
Upper, LH
|
| 13. |
86610198
|
[13] |
INSERT,M6 x 1
|
NH
Threaded, M6
|
| 14. |
87026536
|
[1] |
BRACKET
|
PA
Transport, RH
|
| 15. |
86626383
|
[1] |
SHIELD
|
NH
Lower, LH
|
| 16. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
Pickup Tire & Wheel
|
| 22. |
86625649
|
[1] |
SHIELD
|
PA
Lower, RH
|
| 23. |
87055752
|
[1] |
SHIELD
|
PA
Upper, RH
|
| 24. |
705996
|
[2] |
BUSHING
|
NH
7/8" L
|
| 25. |
86621725
|
[2] |
STRAP
|
NH
|
| 26. |
86900779
|
[2] |
SHIELD
|
PA
|
| 27. |
614-12040
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 28. |
614-12030
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 30. |
87026838
|
[1] |
BRACKET
|
PA
Transport, LH
|
| 31. |
814-12060
|
[2] |
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 9706693
|
| 33. |
844-6020
|
[19] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 34. |
9804265
|
[2] |
FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8
|
NH
|
| 35. |
844-10025
|
[6] |
BOLT,Hex, M10 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804261
|
| 36. |
844-10040
|
[2] |
BOLT,Hvy Hex, M10 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 9804263, 87778247
|
| 37. |
9706703
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 39. |
80043480
|
[2] |
BOLT
|
PA
Rnd Hd Square Neck, M8.8 Course Thd
|
| 41. |
413-480
|
[2] |
BOLT,Hex, 1/4" - 20 x 5", Gr 5
|
CAS
Superseded by part number: 280415
|
| 42. |
213404
|
[2] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
|
| 43. |
87020910
|
[2] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
| 44. |
495-21044
|
[14] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 45. |
495-21031
|
[8] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 46. |
322357
|
[20] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 47. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 49. |
140046
|
[14] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 50. |
231-4144
|
[2] |
NUT,1/4"-20, GB
|
CAS
Superseded by part number: 280129
|
| 51. |
131405
|
[1] |
SHIM
|
NH
.025"
|
| 52. |
832-46410
|
[10] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 53. |
9804279
|
[2] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 54. |
825-1412
|
[4] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 55. |
825-2410
|
[1] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 56. |
825-2406
|
[1] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 57. |
825-2408
|
[1] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 58. |
425-288
|
[2] |
FLANGE NUT,Flg, 1/2"-13, G5
|
CAS
Superseded by part number: 86544265
|
| 60. |
844-8020
|
[1] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 61. |
86631510
|
[2] |
CHAIN,850.9mm L
|
NH
Coil, 33 Links
|
| 62. |
9671714
|
[1] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 63. |
86610200
|
[1] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 69. |
65319
|
[2] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 72. |
86631096
|
[2] |
SPRING NUT
|
NH
Spring
|
| 73. |
87026987
|
[1] |
SHIELD
|
PA
Rotor, Clutch, RH
|
