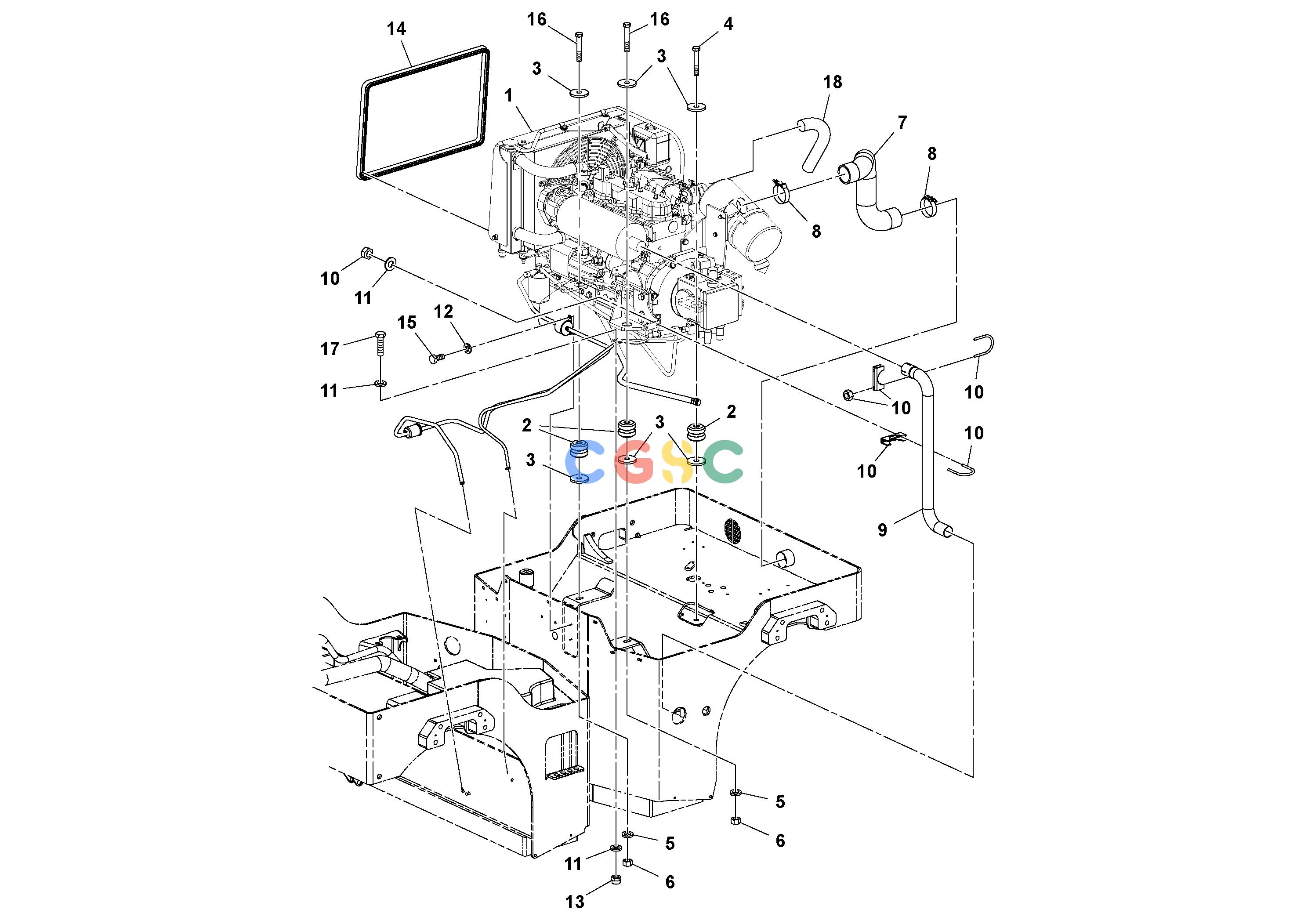

沃尔沃零件查询DD29/DD30/DD31HF/DD38HF Engine InstallationNone NoneNone13353008, 12816942Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Engine
|
|
| |
RM59162982
|
[1] |
Decal
|
Bio-Degradeable Oil
|
| |
RM13387238
|
|
Oil
|
|
| 2. |
RM59256982
|
[3] |
Rubber damper
|
|
| 3. |
RM59256545
|
[6] |
Washer
|
|
| 4. |
RM96739990
|
[1] |
Hexagon screw
|
|
| 5. |
RM96738612
|
[2] |
Plain washer
|
|
| 6. |
RM96703657
|
[2] |
Hexagon nut
|
|
| 7. |
RM59225086
|
[1] |
Air hose
|
|
| 8. |
RM54680061
|
[2] |
Clamp
|
|
| 9. |
RM59272872
|
[1] |
Exhaust pipe
|
|
| 10. |
RM59997684
|
[2] |
Clamp
|
|
| 11. |
VOE13955894
|
[6] |
Washer
|
|
| 12. |
VOE955892
|
[2] |
Plain washer
|
|
| 13. |
RM96704606
|
[1] |
Jam nut
|
|
| 14. |
RM59239632
|
[1] |
Seal
|
|
| 15. |
RM96702394
|
[2] |
Hexagon screw
|
|
| 16. |
RM96739982
|
[2] |
Hexagon screw
|
|
| 17. |
RM96702659
|
[1] |
Hexagon screw
|
|
| 18. |
RM58848979
|
[1] |
Wrapper
|
|
