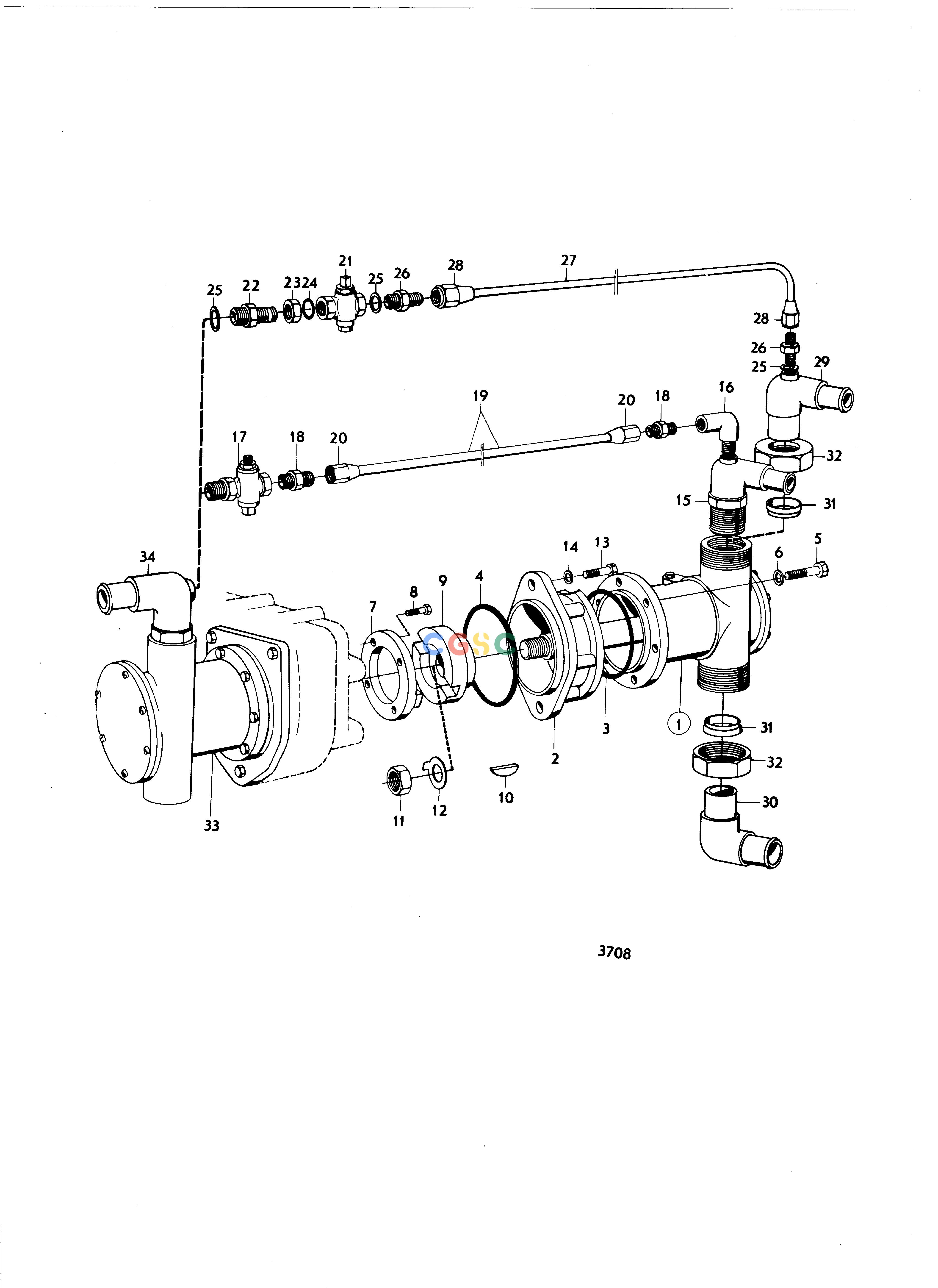

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EMiscellaneous EquipmentBilge Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
618 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
MO-XXXX/11043
|
| 1. |
837371
|
[1] |
Sea water pump
|
MOXXXX/11044-
|
| 2. |
820833
|
[1] |
Spacer
|
|
| 3. |
925095
|
[1] |
O-ring
|
|
| 4. |
420213
|
[1] |
Seal
|
|
| 5. |
940115
|
[3] |
Hexagon screw
|
|
| 6. |
942336
|
[3] |
Spring washer
|
|
| 7. |
821071
|
[1] |
Companion flange
|
|
| 8. |
955513
|
[4] |
Hexagon screw
|
|
| 9. |
820960
|
[1] |
Dog clutch
|
|
| 10. |
942406
|
[1] |
Woodruff key
|
|
| 11. |
955860
|
[1] |
Hexagon nut
|
|
| 12. |
942735
|
[1] |
Tab washer
|
|
| 13. |
940115
|
[2] |
Hexagon screw
|
|
| 14. |
942336
|
[2] |
Spring washer
|
|
| 15. |
942335
|
[1] |
Hose attachment
|
MO-XXXX/11043
|
| 16. |
803809
|
[1] |
Elbow
|
MO-XXXX/11043
|
| 17. |
803808
|
[1] |
Plug cock
|
MO-XXXX/11043
|
| 18. |
954337
|
[2] |
Nipple
|
MO-XXXX/11043.
|
| 19. |
954307
|
[1] |
Tube
|
MO-XXXX/11043., L=250mm
|
| 20. |
954323
|
[2] |
Fitting nut
|
MO-XXXX/11043.
|
| 21. |
837375
|
[1] |
Plug cock
|
MOXXXX/11044-
|
| 22. |
828003
|
[1] |
Nipple
|
MOXXXX/11044-
|
| 23. |
828004
|
[1] |
Nut
|
MOXXXX/11044-.
|
| 24. |
960162
|
[1] |
O-ring
|
MOXXXX/11044-.
|
| 25. |
907133
|
[3] |
Gasket
|
MOXXXX/11044-.
|
| 26. |
828005
|
[2] |
Nipple
|
MOXXXX/11044-
|
| 27. |
954307
|
[1] |
Tube
|
MOXXXX/11044-., L=460mm
|
| 28. |
954323
|
[2] |
Fitting nut
|
MOXXXX/11044-.
|
| 29. |
837272
|
[1] |
Anchorage
|
MOXXXX/11044-
|
| 30. |
837274
|
[1] |
Anchorage
|
MOXXXX/11044-
|
| 31. |
807957
|
[2] |
Sealing ring
|
MOXXXX/11044-.
|
| 32. |
6606324
|
[2] |
Nut
|
MOXXXX/11044-.
|
| 33. |
|
|
|
See group 2B
|
| 34. |
|
|
|
See group 2B
|
