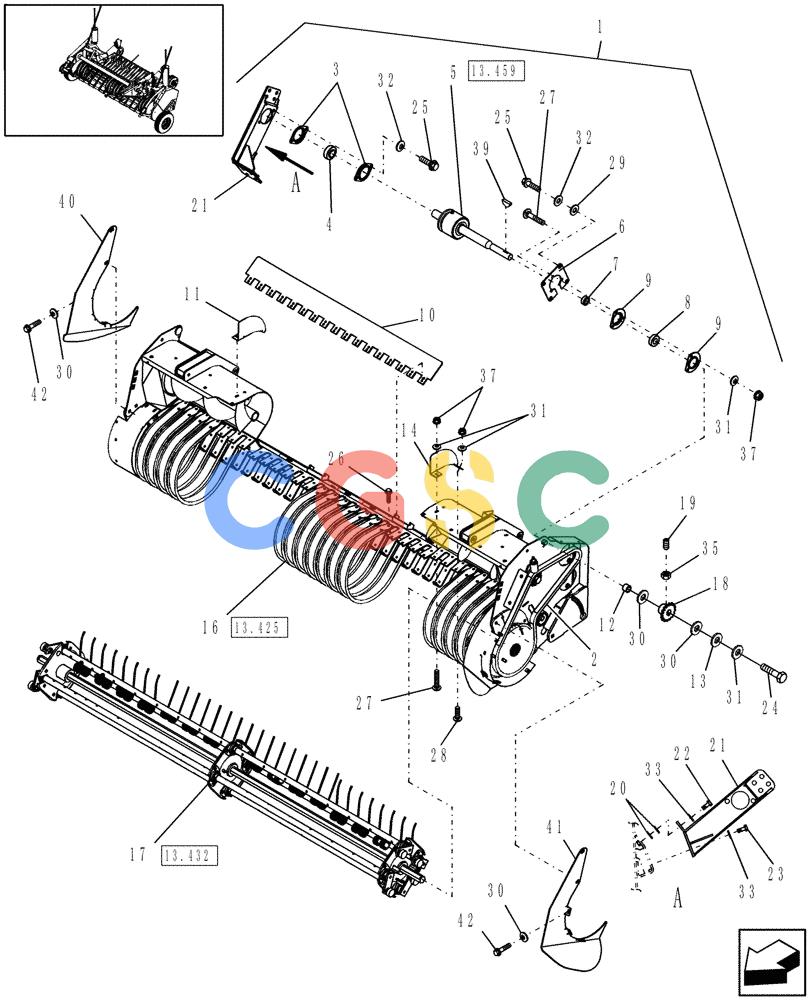

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
ROTOR, 2M Dual Cam Pickup
|
| 2. |
87028682
|
[1] |
CHAIN (AG)
|
PA
Roller, RC50, 100 Pitches
|
| 3. |
165385
|
[1] |
FLANGE,62 mm ID x 112.7 mm OD x 9.53 mm
|
NH
Superseded by part number: 84447186
|
| 4. |
617668R92
|
[1] |
BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"
|
IH
Ball Superseded by part number: 84484181
|
| 6. |
87042087
|
[1] |
PLATE
|
PA
Superseded by part number: 87654729
|
| 7. |
455102R21
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47577183
|
| 8. |
214366C91
|
[1] |
BALL BEARING,25.40mm ID x 52mm OD
|
IH
Ball Superseded by part number: 204807C91
|
| 9. |
86603075
|
[2] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
|
| 10. |
87050285
|
[1] |
FLOOR,260mm W x 1150mm L, Polyurethane
|
PA
Plastic, Also Requires: Ref. 26 Superseded by part number: 47864510, 87577839
|
| 11. |
87045714
|
[1] |
SHIELD
|
PA
RH Superseded by part number: 87654801
|
| 12. |
87654833
|
[1] |
SPACER
|
NH
|
| 13. |
58225
|
[1] |
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
|
NH
Superseded by part number: 87654824
|
| 14. |
87045713
|
[1] |
SHIELD
|
PA
Superseded by part number: 87654836
|
| 18. |
87397998
|
[1] |
SPROCKET
|
PA
17T, RC 50, Standard Superseded by part number: 87602188
|
| 18. |
87055082
|
[1] |
SPROCKET
|
PA
18T, RC 50, Optional Superseded by part number: 87397995
|
| 18. |
87602188
|
[1] |
SPROCKET
|
NH
17T, No Set Screw Required
|
| 19. |
300483
|
[2] |
SET SCREW,M10 x 25mm
|
PA
|
| 20. |
131405
|
[4] |
SHIM
|
NH
.025"
|
| 21. |
87045521
|
[1] |
LIFT ARM
|
PA
LH Superseded by part number: 87653851
|
| 21. |
87646330
|
[1] |
ARM
|
NH
Lift, RH
|
| 22. |
614-12030
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 23. |
614-12040
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 24. |
43128
|
[1] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 25. |
844-10030
|
[6] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 26. |
87034817
|
[34] |
SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"
|
CAS
|
| 27. |
811-8030
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
|
| 28. |
811-8016
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86619060
|
| 29. |
495-21044
|
[4] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 30. |
245531
|
[3] |
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
|
NH
|
| 31. |
322358
|
[5] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 32. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 33. |
140046
|
[6] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 35. |
825-1410
|
[2] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 37. |
825-2408
|
[3] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 39. |
126-24
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 40. |
84324676
|
[1] |
GUARD
|
NH
RH
|
| 41. |
87053734
|
[1] |
GUARD
|
PA
LH
|
| 42. |
844-6020
|
[6] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
