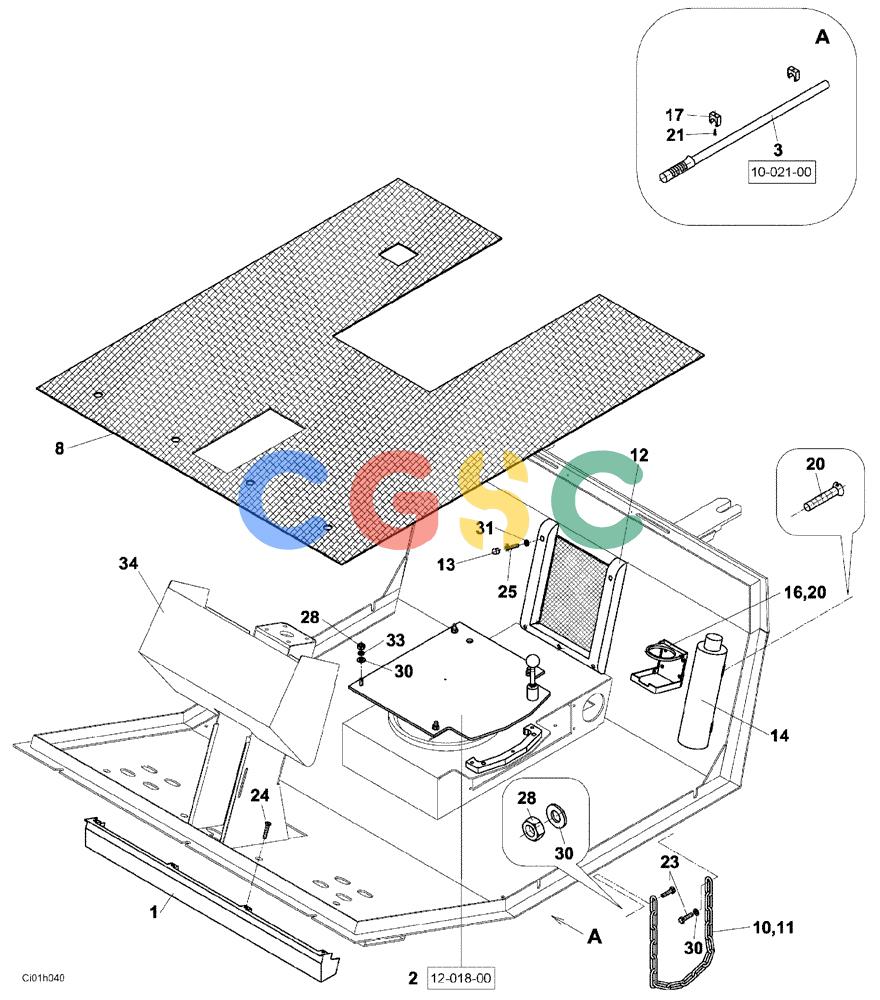

纽荷兰零件查询(CV2000) - VIBRATORY ROLLER (12-013-00[01]) - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND029730 | [1] | COVER | STA |
| 2. | ND018487 | [1] | PLATE | STA |
| 3. | ND053517 | [1] | FLEXIBLE HOSE | STA Superseded by part number: ND108074 |
| 8. | ND017889 | [1] | INSULATOR | STA |
| 10. | ND050824 | [1] | LINK CHAIN | STA |
| 11. | ND101585 | [1] | PLASTIC-RUBBER TUBE | STA |
| 12. | ND064533 | [1] | NET | STA |
| 13. | ND064534 | [5] | PLUG | STA |
| 14. | ND069396 | [1] | FIRE EXTINGUISHER | STA |
| 16. | ND090001 | [1] | SUPPORT | STA |
| 17. | ND064664 | [2] | CLAMP | STA |
| 20. | ND025008 | [6] | SELF-TAP SCREW | STAM4 x 16 |
| 21. | ND024121 | [2] | BOLT | STA |
| 23. | ND023811 | [2] | BOLT | STAM8 x 16 Superseded by part number: ND021293 |
| 24. | ND024388 | [4] | SCREW | STAM8 x 12 |
| 25. | ND024967 | [5] | SELF-TAP SCREW | STAM4 x 16 |
| 28. | ND026416 | [5] | NUT | STAM8 Superseded by part number: ND034087 |
| 30. | ND029249 | [8] | WASHER | STAID 8,4 |
| 31. | ND022316 | [5] | WASHER | STAID 4,3 |
| 33. | ND029310 | [4] | WASHER | STAID 8,2 |
| 34. | ND001504 | [1] | PLATFORM | STA |
