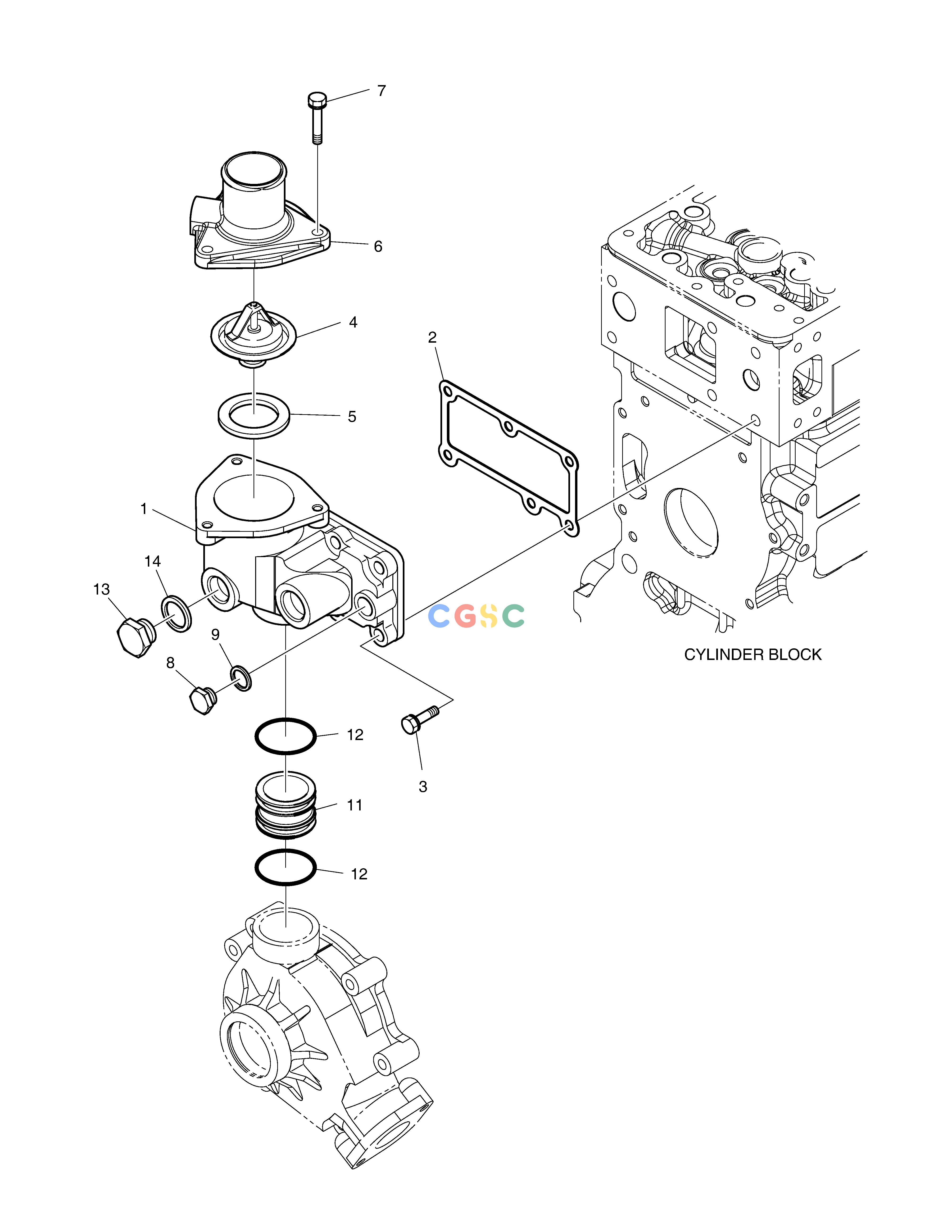

斗山零件查询THERMOSTAT DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
617 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06404-0039A
|
[1] |
HOUSING;THERMOSTAT
|
|
| 11. |
65.06301-0257
|
[1] |
PIPE;COOLING WATER
|
|
| 12. |
65.96501-0099A
|
[2] |
O-RING
|
|
| 13. |
65.90310-0044
|
[1] |
SCREW;PLUG. M25X1.5
|
65.90310-0169
|
| 13. |
65.90310-0169
|
[1] |
SCREW;PLUG
|
|
| 14. |
06.56190-0724
|
[1] |
RING;SEAL
|
|
| 2. |
65.06904-0021
|
[1] |
GASKET;THERMOSTAT
|
|
| 3. |
06.01923-3218
|
[6] |
BOLT ASS`Y M10X35
|
|
| 4. |
65.06402-5015
|
[1] |
THERMOSTAT
|
300738-00084
|
| 4. |
300738-00084
|
[1] |
THERMOSTAT ASSY
|
|
| 5. |
65.06904-0003
|
[1] |
GASKET;THERMOSTAT
|
|
| 6. |
65.06405-0039
|
[1] |
OUTLET;WATER
|
|
| 7. |
06.01923-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 8. |
06.08092-2405
|
[1] |
PLUG SCREW M16 X 1.5
|
|
| 9. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
