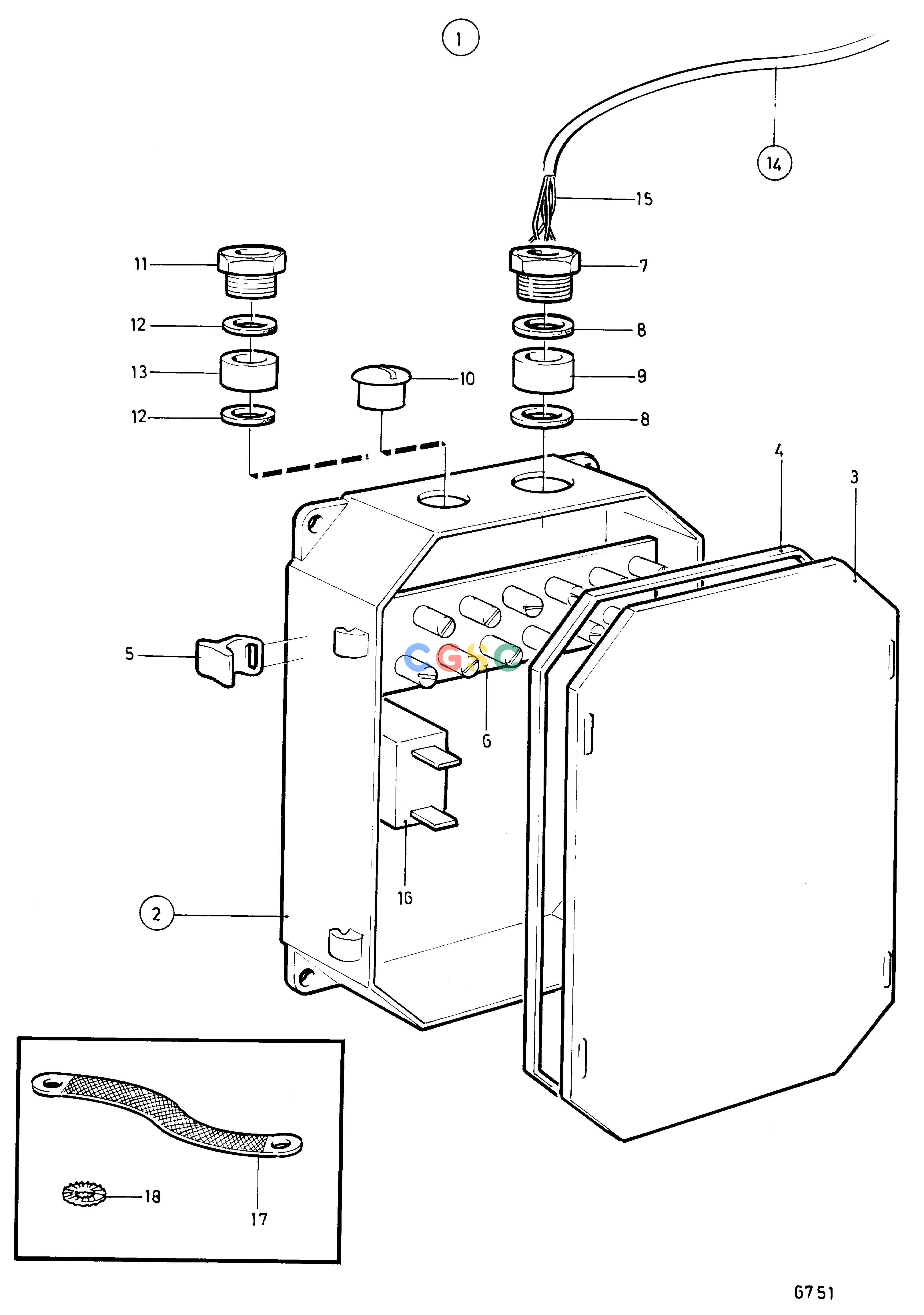

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EMiscellaneous EquipmentConnection BoxEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838419
|
[1] |
Cable block
|
For instrument panel not made by Volvo Penta
|
| 2. |
847078
|
[1] |
Clutch housing
|
|
| 3. |
847077
|
[1] |
Cap
|
|
| 4. |
1582940
|
[1] |
Gasket
|
|
| 5. |
1504888
|
[4] |
Catch
|
|
| 6. |
1582941
|
[2] |
Current bar
|
|
| 7. |
1585425
|
[1] |
Grommet
|
|
| 8. |
1585452
|
[2] |
Gasket
|
|
| 9. |
1585435
|
[1] |
Washer
|
|
| 10. |
843902
|
[3] |
Plug
|
|
| 11. |
1585424
|
[3] |
Grommet
|
|
| 12. |
1585432
|
[6] |
Washer
|
|
| 13. |
1585449
|
[3] |
Gasket
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
See group 3
|
| 16. |
837723
|
[1] |
Resistor
|
|
| 17. |
11411
|
[1] |
Chassis ground cable
|
|
| 18. |
940109
|
[2] |
Toothed washer
|
|
