沃尔沃零件查询DD90 Engine assemblyS/N 08200011422 -E PROD-L PROD - S/N 51795NoneNone70570957, 70914973, 70932348Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
313 次

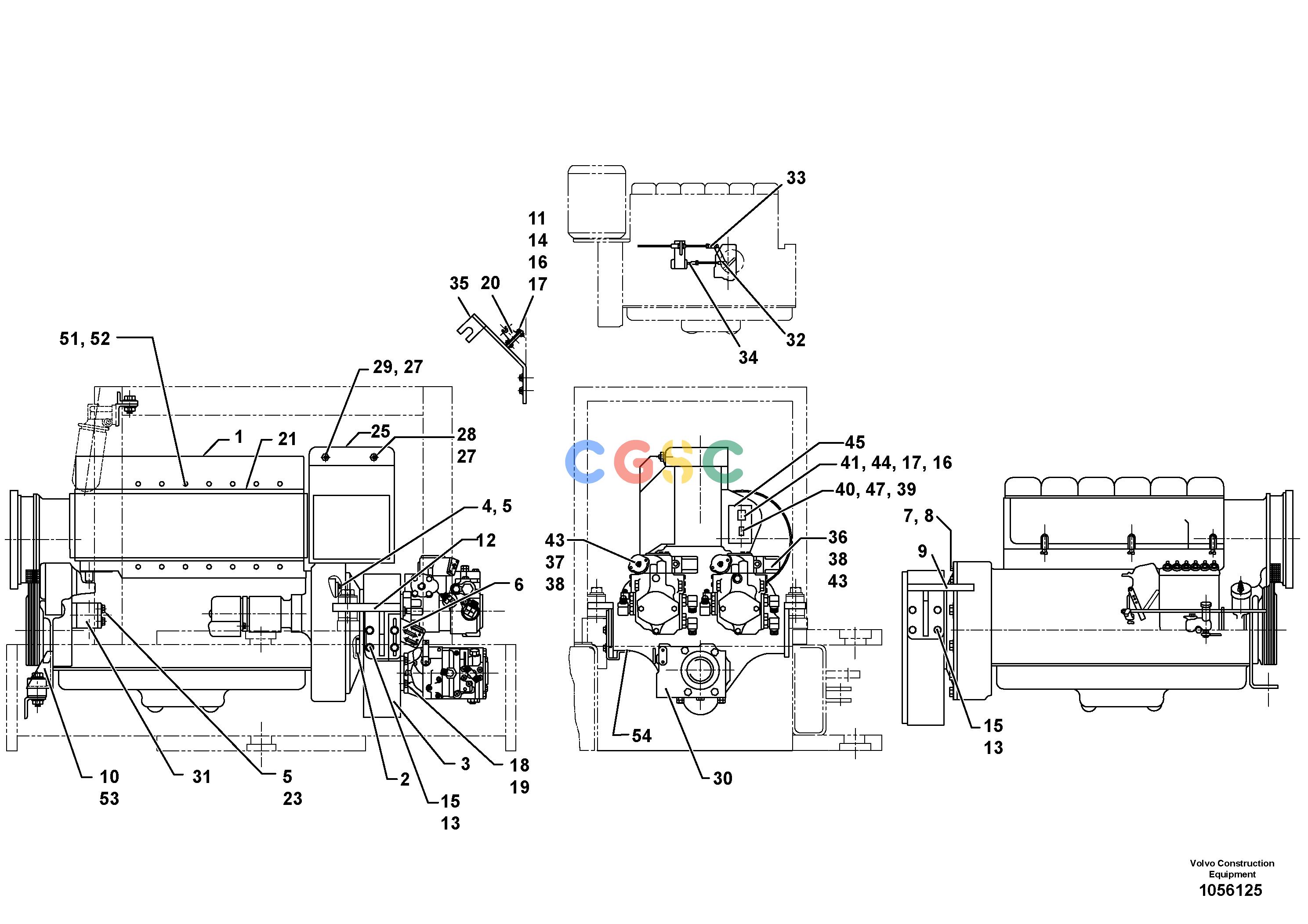

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM70536461
|
[1] |
Engine
|
|
| 1. |
RM70825211
|
[1] |
Engine
|
|
| 1. |
RM70913066
|
|
Engine
|
|
| 2. |
RM59532093
|
[1] |
Adapter
|
|
| 3. |
RM70552211
|
[1] |
Hydraulic pump
|
|
| 3. |
RM43910660
|
|
Pump gearbox
|
|
| 4. |
RM94036894
|
[8] |
Hexagon screw
|
|
| 4. |
RM96718838
|
|
Hexagon screw
|
|
| 5. |
RM94038650
|
[8] |
Plain washer
|
|
| 5. |
RM96704325
|
|
Plain washer
|
|
| 5. |
RM70155700
|
|
Washer
|
|
| 6. |
RM70547906
|
[1] |
Bracket
|
|
| 7. |
RM94037066
|
[12] |
Hexagon screw
|
|
| 7. |
RM96713326
|
|
Hexagon screw
|
|
| 8. |
RM94038650
|
[12] |
Plain washer
|
|
| 8. |
RM96741046
|
|
Plain washer
|
|
| 9. |
RM70121744
|
[1] |
Bracket
|
RH
|
| 10. |
RM70138615
|
[1] |
Engine anchorage
|
|
| 11. |
RM70095674
|
[1] |
Clamp
|
|
| 12. |
RM70121751
|
[1] |
Bracket
|
LH
|
| 13. |
RM70155684
|
[8] |
Washer
|
|
| 13. |
RM59565044
|
|
Washer
|
|
| 14. |
RM94037124
|
[2] |
Hexagon screw
|
|
| 14. |
RM96714266
|
|
Hexagon screw
|
|
| 15. |
RM94036860
|
[8] |
Hexagon screw
|
|
| 15. |
RM96753454
|
|
Hexagon screw
|
|
| 15. |
RM95919817
|
|
Hexagon screw
|
|
| 16. |
VOE955919
|
[2] |
Spring washer
|
|
| 16. |
RM96719729
|
|
Plain washer
|
|
| 17. |
RM94037678
|
[2] |
Hexagon nut
|
|
| 17. |
RM96712781
|
|
Hexagon nut
|
|
| 18. |
RM70155700
|
[4] |
Washer
|
|
| 18. |
RM70155700
|
|
Washer
|
|
| 18. |
RM70155668
|
|
Washer
|
|
| 19. |
RM94037207
|
[4] |
Hexagon screw
|
|
| 19. |
RM96718887
|
|
Hexagon screw
|
|
| 19. |
RM95920708
|
|
Hexagon screw
|
|
| 20. |
RM70037494
|
[1] |
Double clamp
|
|
| 21. |
RM70536396
|
[1] |
Duct
|
|
| 22. |
RM94038650
|
[2] |
Plain washer
|
|
| 22. |
RM96745559
|
|
Washer
|
|
| 23. |
RM94126018
|
[2] |
Bolt
|
|
| 23. |
RM96713508
|
|
Hexagon screw
|
|
| 24. |
RM94146990
|
[1] |
Hydraulic hose
|
|
| 25. |
RM70075718
|
[1] |
Oil cooler
|
|
| 26. |
RM97114524
|
[1] |
Hydraulic hose
|
|
| 27. |
RM94024320
|
[2] |
Seal
|
|
| 28. |
RM70074364
|
[1] |
Adapter
|
|
| 29. |
RM70074380
|
[1] |
Adapter
|
|
| 30. |
|
[1] |
Hydraulic Pump
|
|
| 31. |
|
[1] |
Gear Pump
|
|
| 32. |
RM70081302
|
[1] |
Clevis
|
|
| 33. |
RM70541016
|
[1] |
Clevis
|
|
| 34. |
RM70526371
|
[1] |
Control cable
|
|
| 35. |
RM70076955
|
[1] |
Bracket
|
|
| 36. |
|
[1] |
Hydraulic Pump
|
REAR
|
| 37. |
|
[4] |
Hydraulic Pump
|
FRONT
|
| 38. |
RM46690814
|
[4] |
Screw
|
|
| 38. |
RM95309829
|
|
Screw
|
|
| 40. |
RM59603746
|
|
Breaker
|
|
| 41. |
RM59437590
|
|
Relay
|
|
| 43. |
RM97116537
|
|
Spacer
|
|
| 44. |
RM96714241
|
|
Hexagon screw
|
|
| 45. |
RM70661665
|
|
Bracket
|
|
| 46. |
RM96713177
|
|
Hexagon screw
|
|
| 47. |
VOE60110236
|
|
Plain washer
|
|
| 48. |
RM96702386
|
|
Hexagon screw
|
|
| 49. |
RM96743505
|
|
Washer
|
|
| 50. |
RM96712773
|
|
Hexagon nut
|
|
| 51. |
RM96714233
|
|
Hexagon screw
|
|
| 52. |
VOE955893
|
|
Plain washer
|
|
| 53. |
RM46675021
|
|
Washer
|
S/N 51799 -
|
