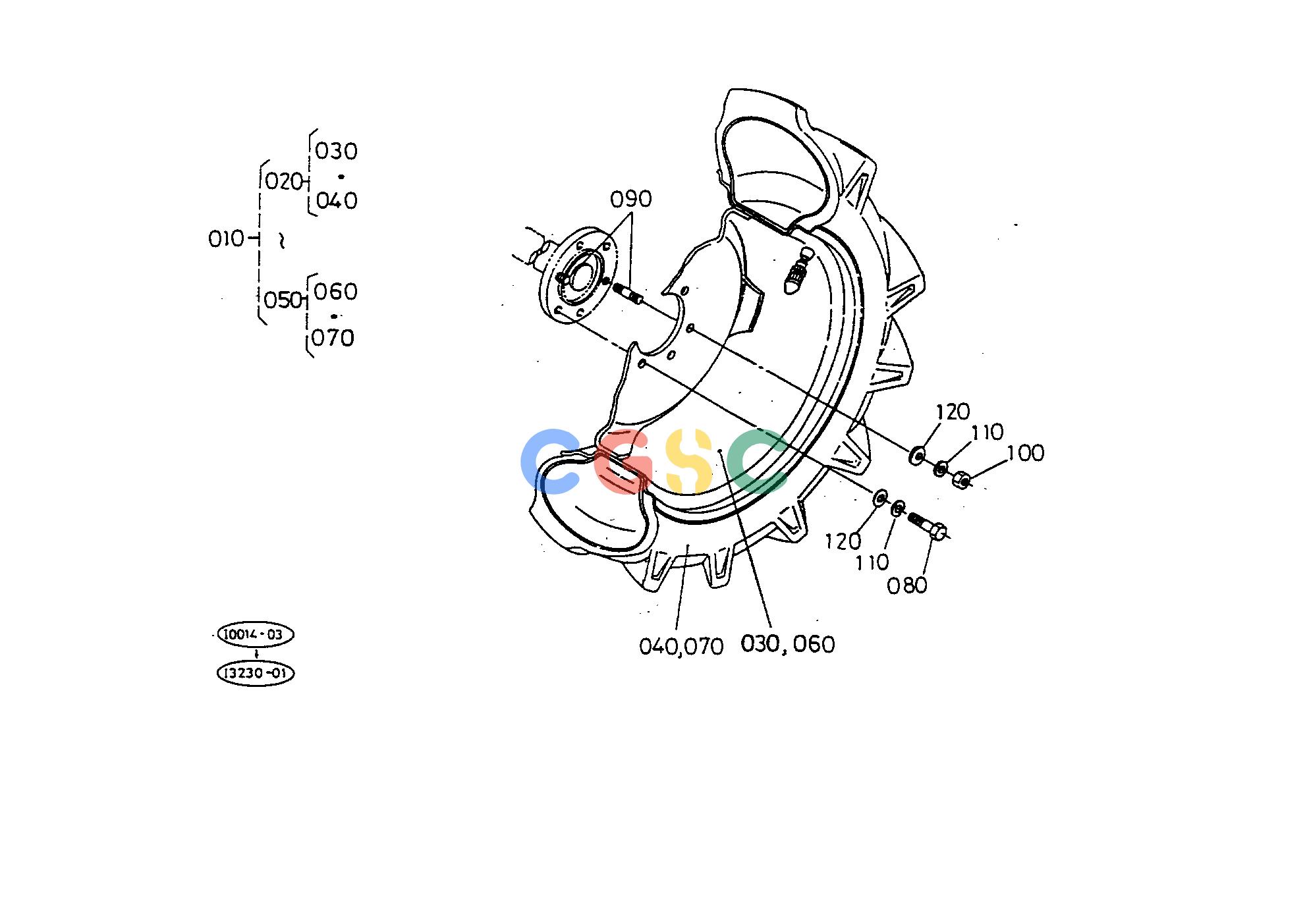

久保田零件查询T07100 REAR IND.SURE GRIP TIRE (12.4-16) (OPTION) ## OBTAINED LOCALLY (RESERVED BY KTC) REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
433 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270150020
|
[1] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
3270150120
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 030. |
7000000899
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
7000000890
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 050. |
3270150220
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 060. |
7000000899
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 070. |
7000000890
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 080. |
0107351635
|
[8] |
BOLT
|
0.1892(lbs); 0.086
|
| 090. |
0151751632
|
[4] |
STUD
|
0.1672(lbs); 0.076
|
| 100. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 110. |
0451250160
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 120. |
0401150160
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
