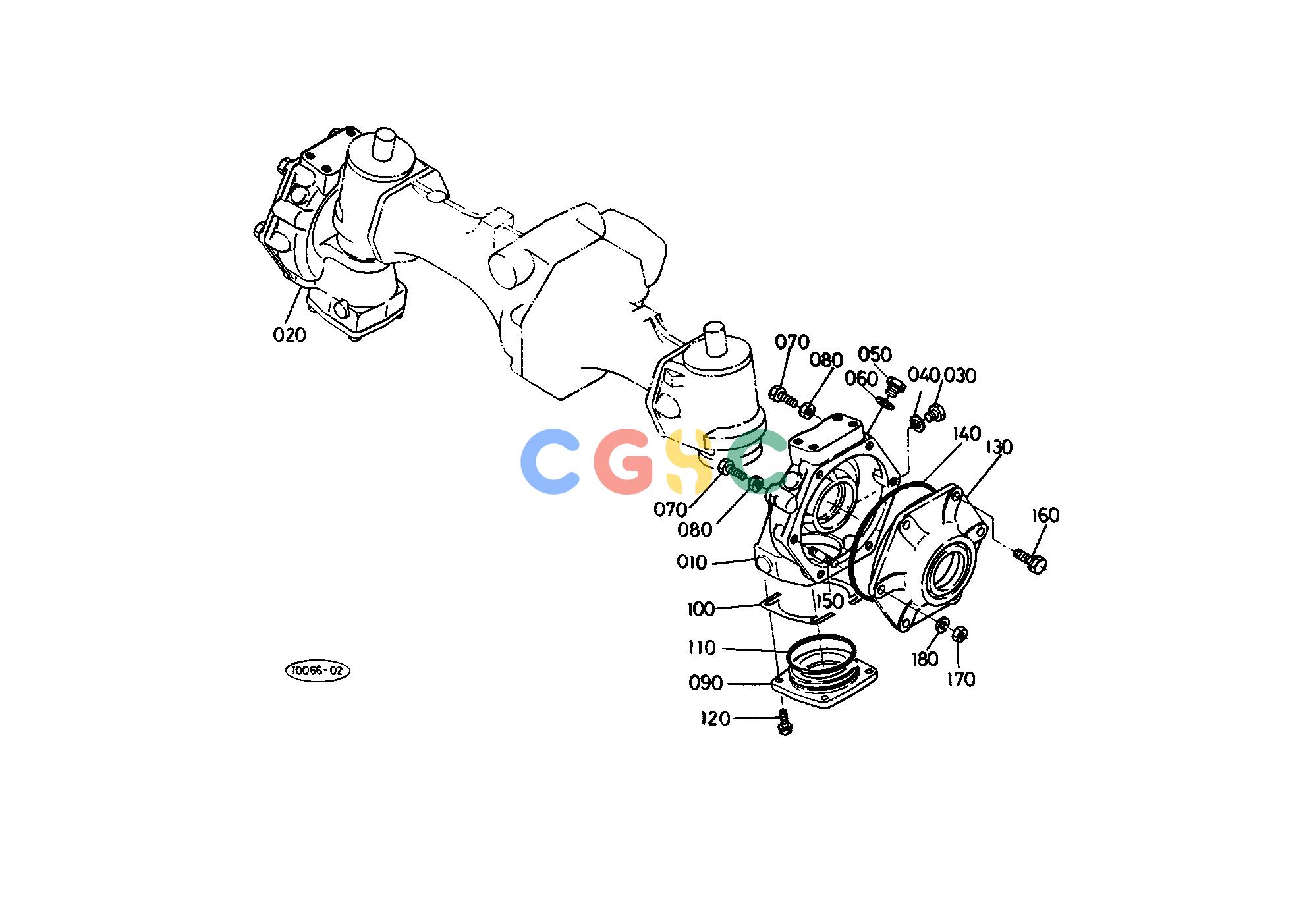

久保田零件查询T07600 FRONT AXLE CASE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
565 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6752156310
|
[1] |
CASE FRONT AXLE LH
|
11.0220(lbs); 5.010
|
| 020. |
6752156320
|
[1] |
CASE FRONT AXLE RH
|
11.0000(lbs); 5.000
|
| 030. |
0633135010
|
[2] |
PLUG
|
0.0264(lbs); 0.012
|
| 040. |
0471701000
|
[2] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 050. |
0633135012
|
[2] |
PLUG
|
0.0528(lbs); 0.024
|
| 060. |
0471701200
|
[2] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 070. |
6781056440
|
[2] |
BOLT ADJUSTING
|
0.0550(lbs); 0.025
|
| 080. |
0211250100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 090. |
6752156330
|
[2] |
COVER BEVEL
|
1.6830(lbs); 0.765
|
| 100. |
6752156340
|
[4] |
SHIM
|
0.0088(lbs); 0.004
|
| 100. |
6752156350
|
[4] |
SHIM
|
0.0022(lbs); 0.001
|
| 100. |
6752156360
|
[4] |
SHIM
|
0.0022(lbs); 0.001
|
| 110. |
0481150800
|
[2] |
RING
|
0.0066(lbs); 0.003
|
| 120. |
0112350825
|
[8] |
BOLT
|
0.0286(lbs); 0.013
|
| 130. |
6752156370
|
[2] |
COVER FRONT AXLE
|
4.7960(lbs); 2.180
|
| 140. |
7031451120
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 150. |
0151751025
|
[4] |
STUD
|
0.0440(lbs); 0.020
|
| 160. |
0113351030
|
[8] |
BOLT
|
0.0550(lbs); 0.025
|
| 170. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 180. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
