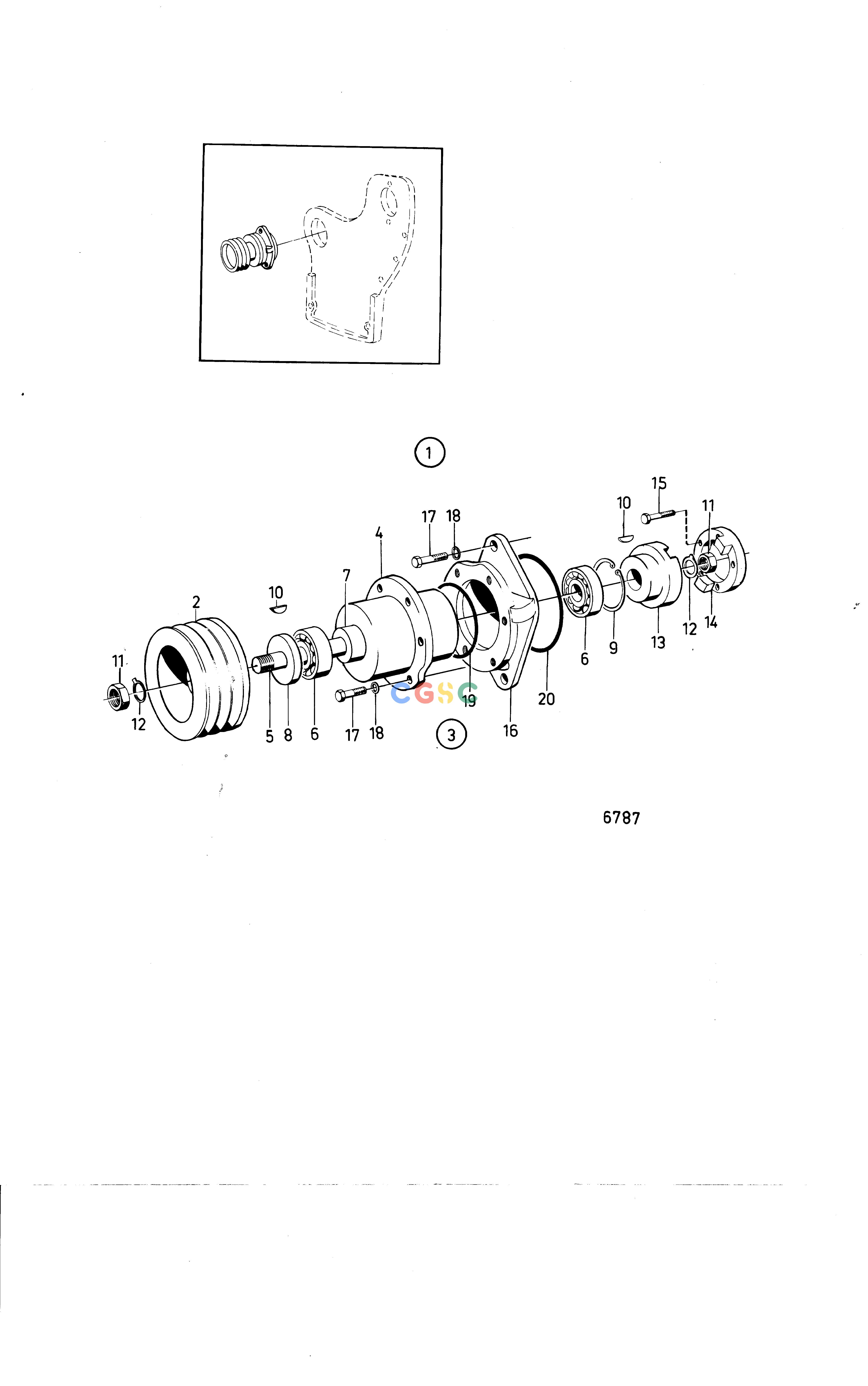

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EMiscellaneous EquipmentExtra Drive Take off: 821287EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
821064
|
[1] |
Pulley
|
D=140mm
|
| 3. |
821066
|
[1] |
Drive outlet
|
|
| 4. |
821067
|
[1] |
Bearing housing
|
|
| 5. |
821068
|
[1] |
Shaft
|
|
| 6. |
11013
|
[2] |
Ball bearing
|
|
| 7. |
821072
|
[1] |
Spacer sleeve
|
|
| 8. |
958993
|
[1] |
Sealing ring
|
|
| 9. |
914533
|
[1] |
Snap ring
|
|
| 10. |
942406
|
[2] |
Woodruff key
|
|
| 11. |
955860
|
[2] |
Hexagon nut
|
|
| 12. |
942735
|
[2] |
Tab washer
|
|
| 13. |
820960
|
[1] |
Dog clutch
|
|
| 14. |
821071
|
[1] |
Companion flange
|
|
| 15. |
955513
|
[4] |
Hexagon screw
|
|
| 16. |
820833
|
[1] |
Spacer
|
|
| 17. |
940115
|
[6] |
Hexagon screw
|
|
| 18. |
942336
|
[6] |
Spring washer
|
|
| 19. |
925095
|
[1] |
O-ring
|
|
| 20. |
420213
|
[1] |
Seal
|
|
