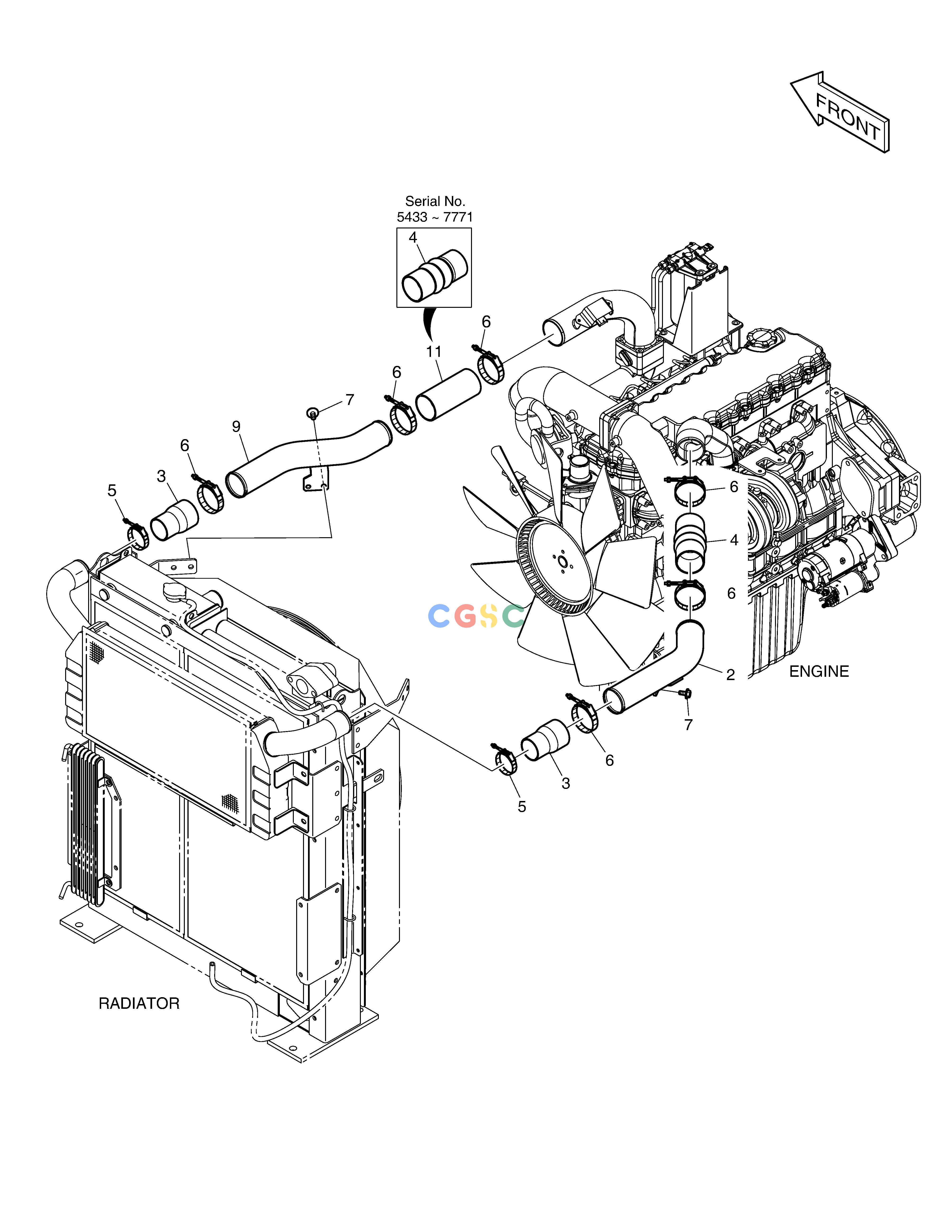

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1039124 | [-] | CAC PIPING | |
| 11. | 420101-01449 | [1] | ||
| 2. | K1038932 | [1] | PIPE | |
| 3. | K1038375 | [2] | HOSE;AIR | |
| 4. | K1038559 | [2] | HOSE;CAC | |
| 4. | K1038559 | [1] | HOSE;CAC | |
| 5. | K1000704A | [2] | CLAMP | S8500079 |
| 5. | S8500079 | [2] | CLAMP | |
| 6. | 124-00194 | [6] | CLAMP | S8500092 |
| 6. | S8500092 | [6] | CLAMP;HOSE | |
| 7. | DS0025023 | [4] | BOLT | |
| 9. | K1038931 | [1] | PIPE |
