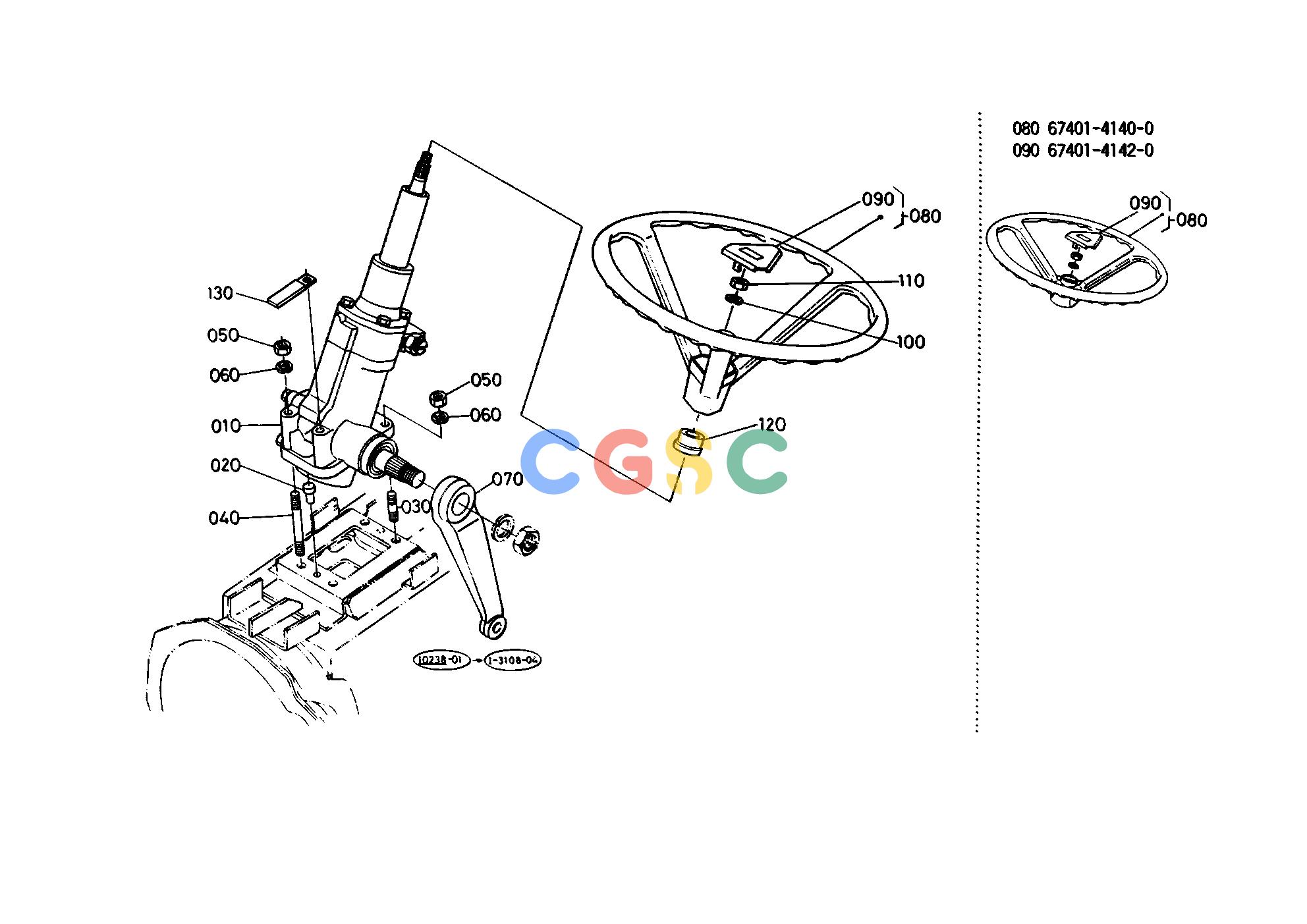

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6636341103
|
[1] |
ASSY STEERING POWER
|
0.0000(lbs); 0.000
|
| 020. |
3270138620
|
[2] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 030. |
0151751035
|
[2] |
STUD
|
0.0616(lbs); 0.028
|
| 030. |
0151751030
|
[2] |
STUD
|
0.0528(lbs); 0.024
|
| 040. |
0151751095
|
[2] |
STUD
|
0.1320(lbs); 0.060
|
| 040. |
0151751090
|
[2] |
STUD
|
0.1320(lbs); 0.060
|
| 050. |
0217650100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
6636341310
|
[1] |
ARM PITMAN
|
3.3440(lbs); 1.520
|
| 080. |
6740141400
|
[1] |
ASSY WHEEL STEERING
|
0.0000(lbs); 0.000
|
| 080. |
3135116063
|
[1] |
ASSY WHEEL STEERING
|
5.2800(lbs); 2.400
|
| 090. |
6740141420
|
[1] |
PAD STEERING WHEEL
|
0.1144(lbs); 0.052
|
| 090. |
H674041420
|
[1] |
PAD STEERING WHEEL
|
0.1144(lbs); 0.052
|
| 090. |
3135116082
|
[1] |
PAD STEERING
|
0.1540(lbs); 0.070
|
| 100. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 110. |
0217450120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 120. |
6636341510
|
[1] |
COVER SHAFT
|
0.1320(lbs); 0.060
|
| 130. |
3534029380
|
[1] |
CLAMP CORD
|
0.0220(lbs); 0.010
|
