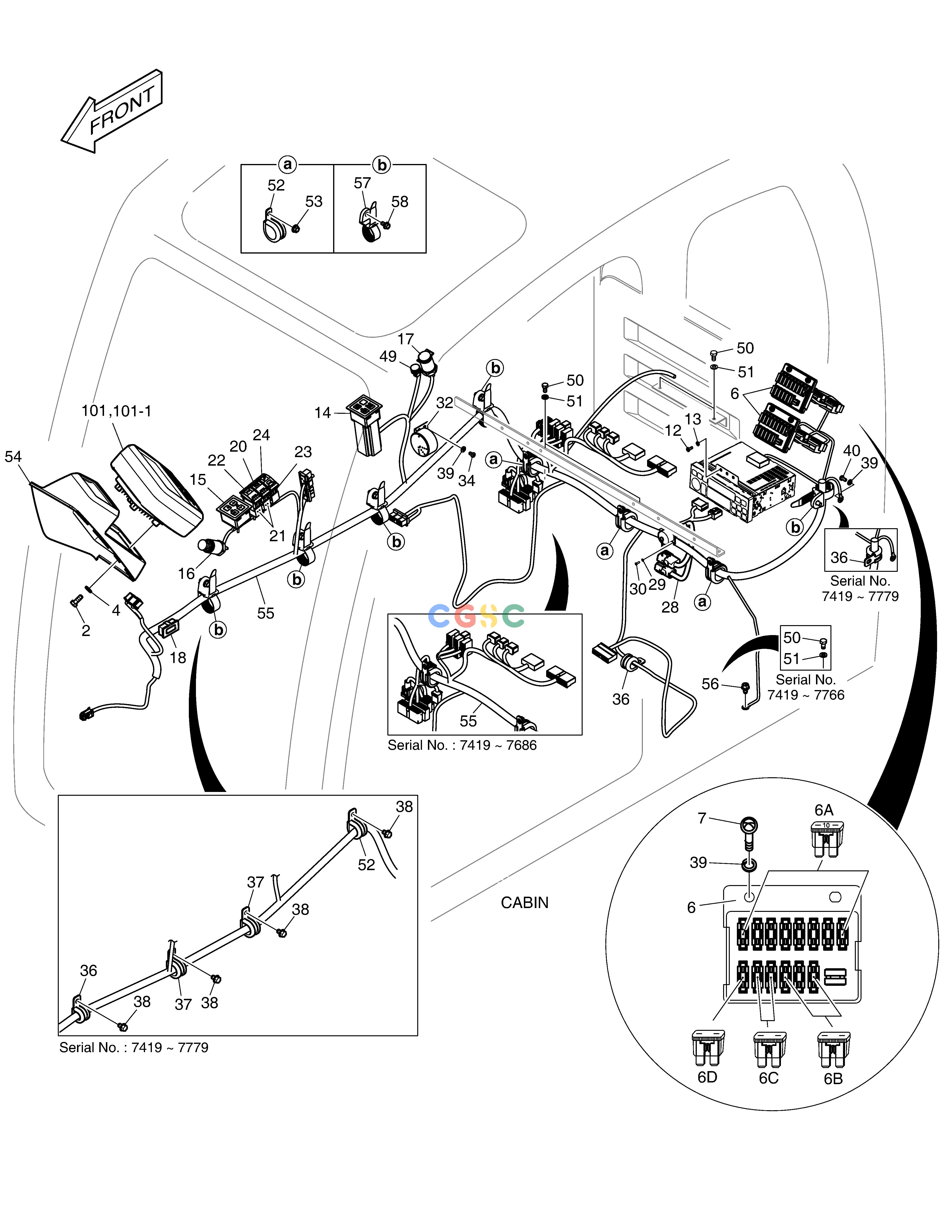

斗山零件查询ELECTRIC PARTS - CABIN DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02534L
|
[-] |
|
|
| -. |
300619-02543A
|
[-] |
|
|
| -. |
300619-02534C
|
[-] |
|
|
| -. |
300619-02543
|
[-] |
|
|
| -. |
300619-02534E
|
[-] |
|
|
| -. |
300619-02534H
|
[-] |
|
|
| -. |
300619-02534K
|
[-] |
|
|
| 101. |
300426-00010B
|
[1] |
|
|
| 101. |
300426-00202
|
[1] |
|
|
| 101-1. |
970304-00001
|
[1] |
|
|
| 12. |
S3450833
|
[4] |
BOLT
|
|
| 13. |
S5100203
|
[4] |
WASHER
|
|
| 14. |
543-00095
|
[1] |
PANEL ASS`Y,WIPER CONTROL
|
|
| 15. |
543-00096
|
[1] |
RADIO CONTROL PANEL ASSY
|
|
| 16. |
300730-00006
|
[1] |
LIGHTER,CIGAR
|
|
| 17. |
K1053423
|
[1] |
|
|
| 18. |
2528-9040
|
[1] |
METER;HOUR
|
800224-00011
|
| 18. |
800224-00011
|
[1] |
METER,HOUR
|
|
| 2. |
2120-2166D6
|
[4] |
BOLT
|
|
| 20. |
K1002406D11
|
[1] |
ACTUATOR,SWITCH(LAMP)
|
|
| 21. |
549-00103
|
[2] |
SWITCH
|
|
| 22. |
K1002406D12
|
[1] |
ACTUATOR,SWITCH
|
|
| 23. |
K1006572
|
[1] |
SWITCH,BREAKER/SHEAR
|
|
| 24. |
K1002406D21
|
[1] |
ACTUATOR,SWITCH(SHEAR)
|
|
| 28. |
310207-00708
|
[1] |
HARNESS
|
|
| 29. |
S5100003
|
[4] |
WASHER
|
|
| 30. |
S3450343
|
[4] |
SCREW
|
|
| 32. |
2516-1116
|
[1] |
BUZZER
|
|
| 34. |
S3450943
|
[2] |
SCREW
|
|
| 36. |
124-00208D3
|
[3] |
CLIP
|
|
| 36. |
124-00208D3
|
[1] |
CLIP
|
|
| 37. |
124-00208D4
|
[2] |
CLIP
|
|
| 38. |
K1001029
|
[4] |
BOLT
|
|
| 39. |
S5102303
|
[7] |
. WASHER
|
|
| 4. |
S5010313
|
[4] |
WASHER
|
|
| 40. |
S3450953
|
[1] |
SCREW
|
|
| 49. |
547-00023
|
[1] |
SENSOR
|
|
| 50. |
S0508653
|
[5] |
BOLT
|
|
| 50. |
S0508653
|
[4] |
BOLT
|
|
| 51. |
S5102503
|
[5] |
. WASHER
|
|
| 51. |
S5102503
|
[4] |
. WASHER
|
|
| 52. |
124-00208D5
|
[4] |
CLIP
|
|
| 52. |
124-00208D5
|
[3] |
CLIP
|
|
| 53. |
2121-1305
|
[3] |
NUT
|
|
| 54. |
K1041204
|
[1] |
COVER
|
|
| 55. |
310207-02932
|
[1] |
|
|
| 55. |
310207-02932A
|
[1] |
|
310207-02932B
|
| 55. |
310207-02932B
|
[1] |
|
|
| 55. |
310207-02932C
|
[1] |
|
|
| 56. |
120106-00702
|
[1] |
BOLT
|
|
| 57. |
120402-00439
|
[5] |
CLIP
|
|
| 58. |
120106-00596
|
[5] |
BOLT
|
|
| 6. |
K1001263A
|
[2] |
FUSE BOX
|
|
| 6A. |
2527-1016
|
[8] |
FUSE,BLADE 10A
|
|
| 6B. |
2527-1017
|
[3] |
FUSE,BLADE 15A
|
|
| 6C. |
2527-1018
|
[2] |
FUSE,BLADE 20A
|
|
| 6D. |
2527-1025
|
[1] |
FUSE,BLADE 30A
|
|
| 7. |
S3450983
|
[4] |
SCREW
|
|
