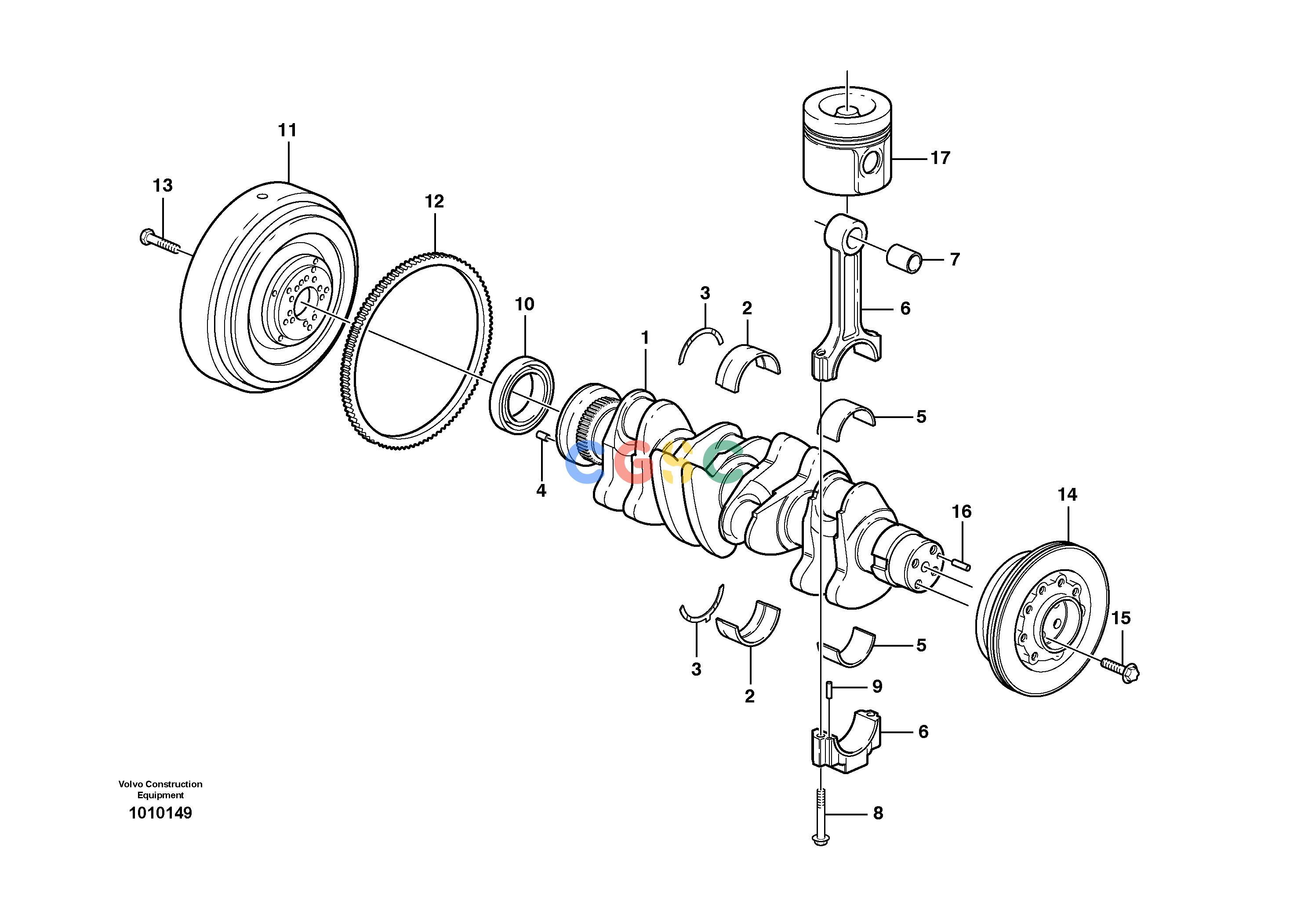

沃尔沃零件查询EC135B Crankshaft and related partsSER NO 20001-200798278919-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20459150
|
[1] |
Crankshaft
|
ENG - 806086
|
| |
VOE20729184
|
[1] |
Crankshaft
|
ENG 806087 - 1026595
|
| |
VOE20744682
|
[1] |
Crankshaft
|
ENG 1026596 -
|
| 2. |
VOE20459140
|
[5] |
Main bearing
|
|
| 3. |
VOE20459149
|
[REQ] |
Thrust washer
|
THICK = 1,4mm
|
| |
VOE20459143
|
[REQ] |
Washer
|
THICK = 1,0mm
|
| 4. |
VOE20459144
|
[1] |
Insert
|
|
| 5. |
VOE20480536
|
[4] |
Bearing
|
|
| 6. |
VOE20882905
|
[4] |
Connecting rod
|
|
| 7. |
VOE20523284
|
[4] |
Bushing
|
|
| 8. |
VOE20459133
|
[8] |
Bolt
|
|
| 9. |
VOE20459134
|
[8] |
Pin
|
|
| 10. |
VOE21628356
|
[1] |
Crankshaft seal
|
|
| 11. |
VOE20524696
|
[1] |
Flywheel
|
|
| 12. |
VOE20706915
|
[1] |
Gear Ring
|
|
| 13. |
VOE20405654
|
[10] |
Bolt
|
|
| 14. |
VOE20459153
|
[1] |
Pulley
|
|
| 15. |
VOE20405724
|
[4] |
Screw
|
|
| 16. |
VOE20405634
|
[1] |
Spring pin
|
|
| 17. |
|
[1] |
Piston
|
|
