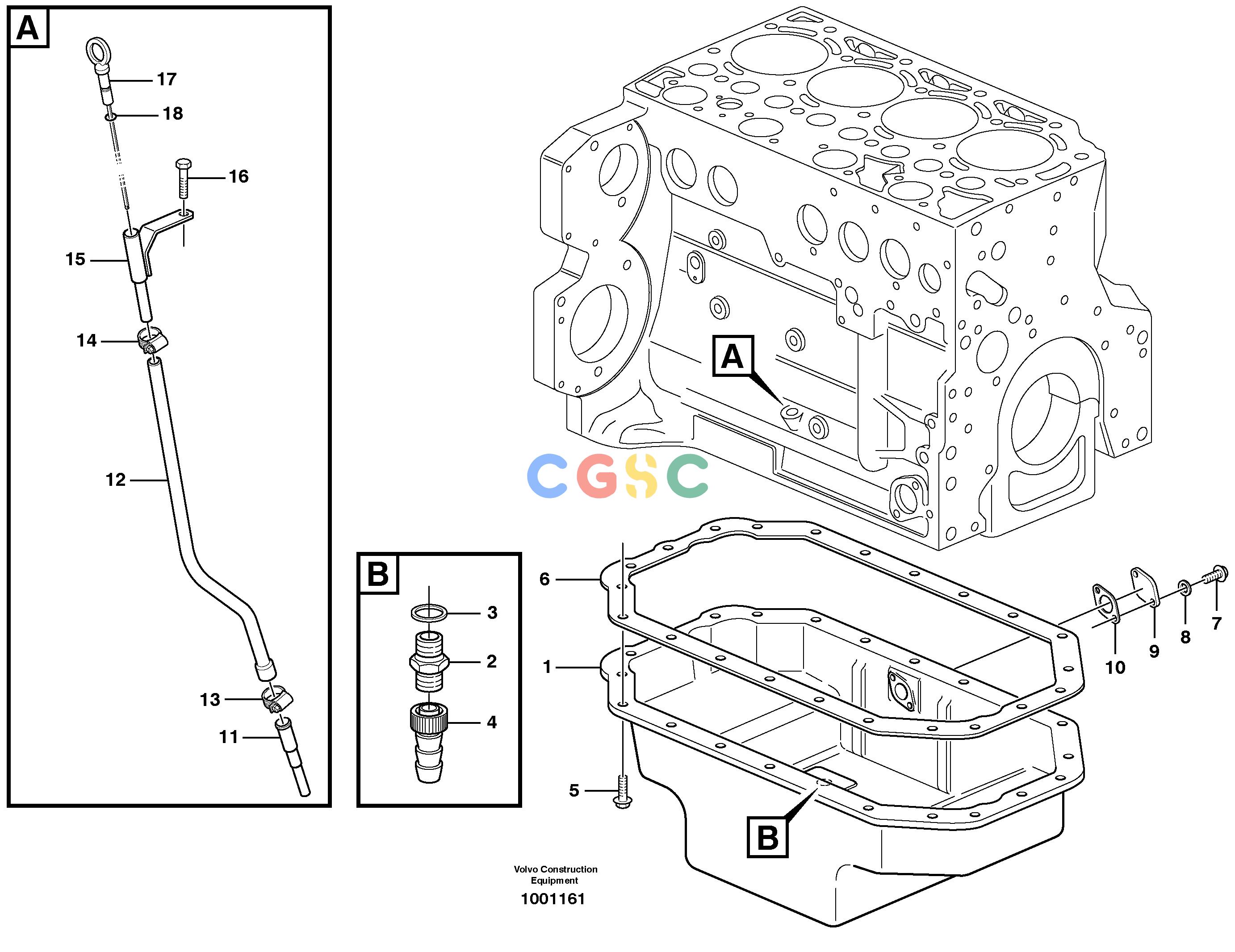

沃尔沃零件查询EC135B Oil sumpSER NO 20001-200798278919-NoneVOE8278919NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
517 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20482006
|
[1] |
Oil pan
|
|
| 2. |
VOE22879098
|
[1] |
Drain valve
|
|
| 3. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 4. |
VOE20412596
|
[1] |
Connector
|
|
| 5. |
VOE20405792
|
[22] |
Screw
|
|
| 6. |
VOE20460021
|
[1] |
Gasket
|
|
| 7. |
VOE13949578
|
[2] |
Screw
|
|
| 8. |
VOE20482349
|
[2] |
Sealing ring
|
|
| 9. |
VOE20482735
|
[1] |
Flange
|
|
| 10. |
VOE20405825
|
[1] |
Gasket
|
|
| 11. |
VOE23091815
|
[1] |
Guide tube
|
|
| 12. |
VOE20729230
|
[1] |
Pipe
|
|
| 13. |
VOE20460214
|
[1] |
Clip
|
|
| 14. |
VOE20460215
|
[1] |
Clip
|
|
| 15. |
VOE20482731
|
[1] |
Bracket
|
|
| 16. |
VOE20482732
|
[1] |
Bolt
|
|
| 17. |
VOE21899595
|
[1] |
Dipstick
|
|
| 18. |
VOE20460218
|
[1] |
O-ring
|
|
