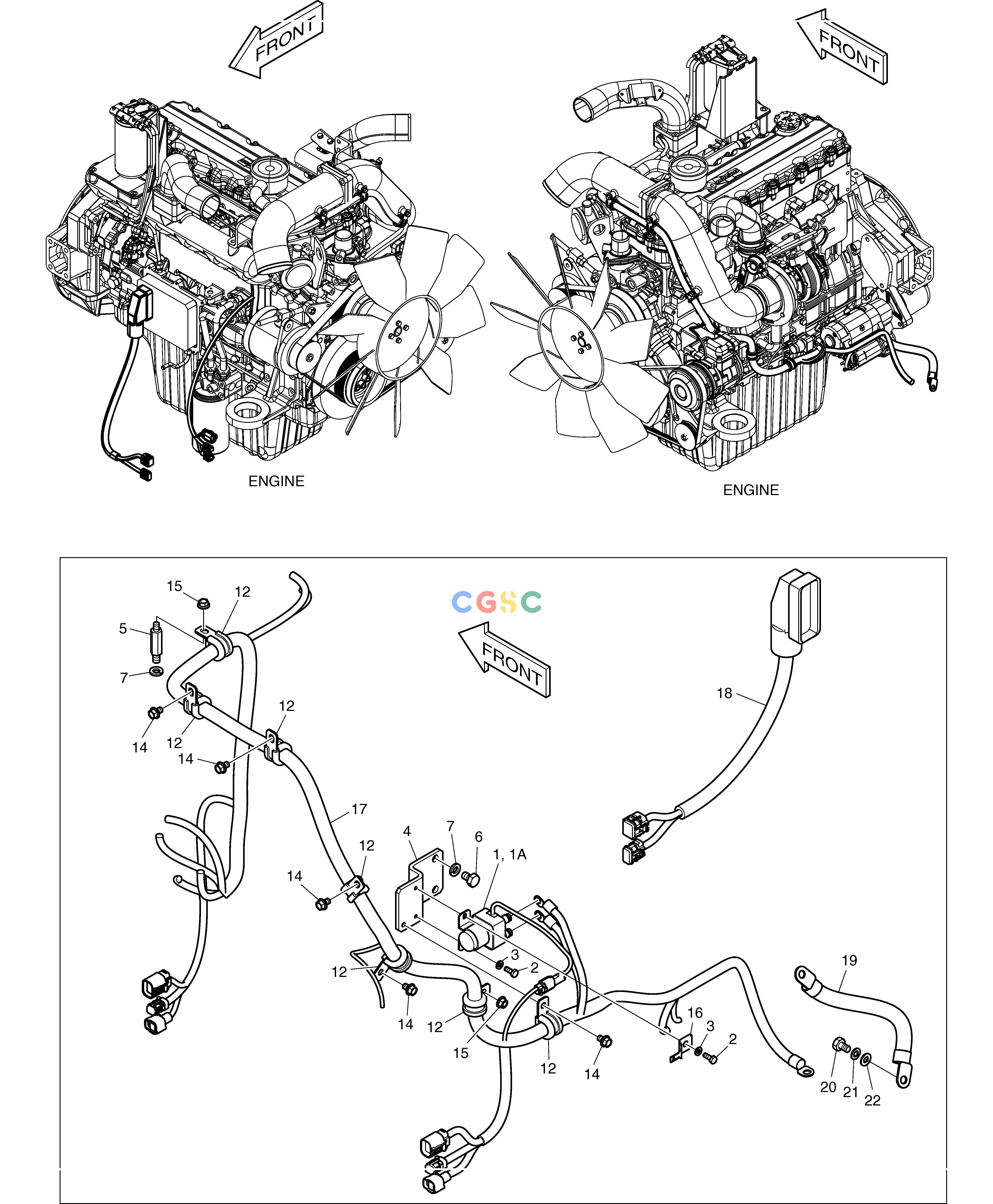

斗山零件查询ELECTRIC PARTS - ENGINE DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
169 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044913A
|
[-] |
ELECTRIC ASS'Y;ENGINE
|
|
| -. |
300619-00125
|
[-] |
|
|
| 1. |
544-00007
|
[1] |
RELAY;PREHEAT
|
|
| 12. |
124-00208D3
|
[7] |
CLIP
|
|
| 14. |
K1001029
|
[5] |
BOLT
|
|
| 15. |
2121-1305
|
[2] |
NUT
|
|
| 16. |
2197-1661
|
[1] |
BRACKET
|
|
| 17. |
K1039725A
|
[1] |
HARNESS;ENGINE
|
310207-00127
|
| 17. |
310207-00127
|
[1] |
|
|
| 18. |
K1048096
|
[1] |
HARNESS;JOINT(ECU)
|
|
| 19. |
2553-1275D82
|
[1] |
CABLE;BATT EARTH
|
|
| 1A. |
527-00005
|
[1] |
FUSE;PREHEAT RELAY
|
|
| 2. |
S0504666
|
[2] |
BOLT
|
|
| 20. |
S0511653
|
[1] |
BOLT
|
|
| 21. |
S5102603
|
[1] |
. WASHER
|
|
| 22. |
S5010613
|
[1] |
WASHER
|
|
| 3. |
S5102303
|
[2] |
. WASHER
|
|
| 4. |
K1015201
|
[1] |
BRACKET;PREHEAT RELAY
|
|
| 5. |
120-00246
|
[1] |
BOLT;STUD
|
|
| 6. |
S0511666
|
[1] |
BOLT
|
|
| 7. |
S5102603
|
[2] |
. WASHER
|
|
