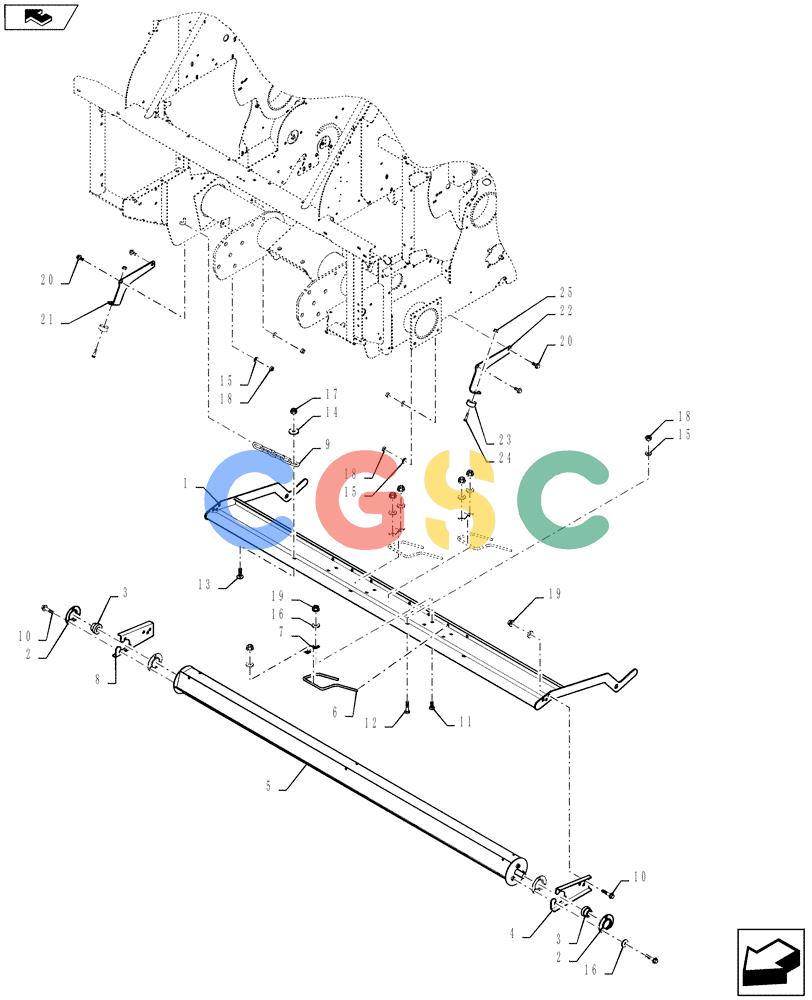

| 1. |
87704734
|
[1] |
WINDGUARD
|
NH
|
| 2. |
36853
|
[4] |
HOSE
|
PA
Superseded by part number: 86603075
|
| 3. |
325103
|
[2] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
ZED
|
| 4. |
87039203
|
[1] |
ARM
|
PA
|
| 5. |
87532588
|
[1] |
ROLLER,146mm OD x 2109.3mm L
|
NH
Superseded by part number: 47393424
|
| 6. |
87040022
|
[3] |
FINGER
|
PA
|
| 7. |
86637855
|
[3] |
PLATE
|
PA
|
| 8. |
87039204
|
[1] |
END PLATE
|
PA
|
| 9. |
87027237
|
[2] |
CHAIN,18 Links x 37.2mm = 670mm L
|
PA
Superseded by part number: 87055684
|
| 10. |
9804258
|
[12] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
86507486
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 12. |
43138
|
[2] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 13. |
86512446
|
[2] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 14. |
80702
|
[2] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 15. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 16. |
322358
|
[18] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 17. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 19. |
9804277
|
[12] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 20. |
9804262
|
[4] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 21. |
47402554
|
[1] |
STOP
|
NH
|
| 22. |
47402558
|
[1] |
STOP
|
NH
|
| 23. |
87602893
|
[2] |
BUMPER,6.4mm ID x 38mm OD x 19mm Thk
|
GI
|
| 24. |
43117
|
[2] |
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 25. |
9804276
|
[2] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
