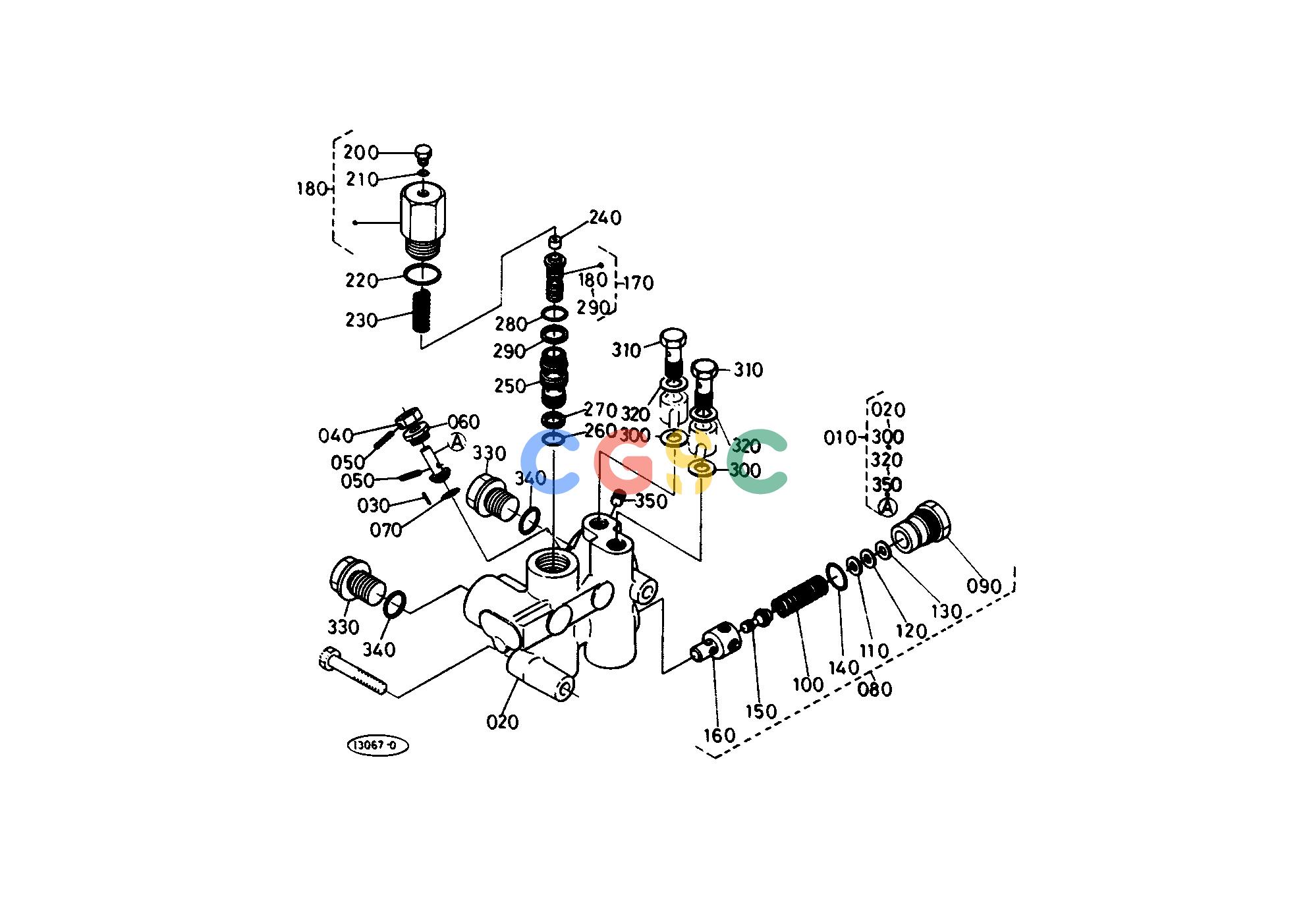

久保田零件查询T09500 HYDRAULIC BLOCK [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
883 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270138100
|
[1] |
ASSY OUTLET HYD.
|
5.9840(lbs); 2.720
|
| 020. |
6785038114
|
[1] |
CONNECTOR
|
4.7520(lbs); 2.160
|
| 030. |
0541100216
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 040. |
6781038160
|
[1] |
NUT
|
0.0330(lbs); 0.015
|
| 050. |
0541100316
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 060. |
6785038520
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
0481100090
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 080. |
6785038200
|
[1] |
ASSY VALVE RELIEF
|
0.2200(lbs); 0.100
|
| 090. |
6781038250
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 100. |
3135137920
|
[1] |
SPRING RELIEF
|
0.0440(lbs); 0.020
|
| 110. |
6711137530
|
[3] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 120. |
6711137580
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 130. |
6781037590
|
[3] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 140. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 150. |
3135137940
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 160. |
3135137930
|
[1] |
SEAT VALVE
|
0.0352(lbs); 0.016
|
| 170. |
6781738300
|
[1] |
ASSY DIVIDER
|
0.4400(lbs); 0.200
|
| 180. |
6781738390
|
[1] |
DIVIDER
|
0.3124(lbs); 0.142
|
| 200. |
6781038430
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 210. |
0481100050
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 220. |
0481100220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 230. |
6781038320
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 240. |
6781038340
|
[1] |
DAMPER
|
0.0022(lbs); 0.001
|
| 250. |
6781038350
|
[1] |
DIVIDER
|
0.0550(lbs); 0.025
|
| 260. |
0481105130
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 270. |
6781038360
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 280. |
0481105150
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 290. |
6781038370
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 300. |
0471400120
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 310. |
6636337882
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 320. |
0471400120
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 330. |
6781037890
|
[3] |
PLUG
|
0.1056(lbs); 0.048
|
| 340. |
0481100140
|
[3] |
RING
|
0.0022(lbs); 0.001
|
| 350. |
6751136640
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
