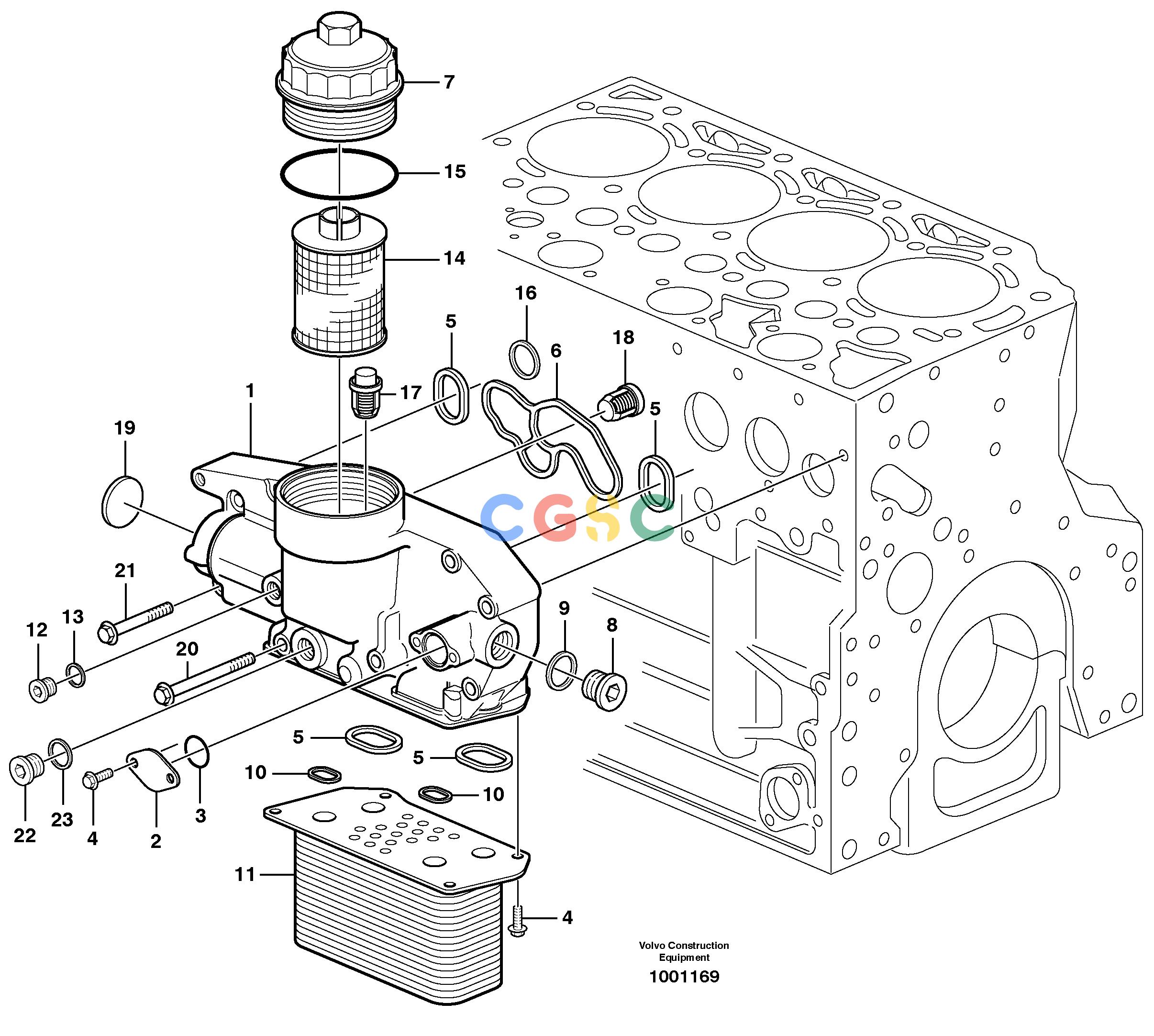

沃尔沃零件查询EC135B Oil coolerSER NO 20001-200798278919-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20555490
|
[1] |
Oil Cooler
|
|
| 2. |
VOE11700609
|
[1] |
Cover
|
|
| 3. |
VOE20405599
|
[1] |
Sealing ring
|
|
| 4. |
VOE20405885
|
[6] |
Screw
|
|
| 5. |
VOE20459215
|
[4] |
Washer
|
|
| 6. |
VOE20459212
|
[1] |
Gasket
|
|
| 7. |
VOE20459210
|
[1] |
Cover
|
|
| 8. |
VOE20459195
|
[1] |
Plug
|
|
| 9. |
VOE13947628
|
[1] |
Plane gasket
|
|
| 10. |
VOE20459214
|
[2] |
Washer
|
|
| 11. |
VOE21707096
|
[1] |
Oil cooler
|
|
| 12. |
VOE20502245
|
[1] |
Plug
|
|
| 13. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 14. |
VOE11708550
|
[1] |
Oil filter
|
|
| 15. |
VOE20459213
|
[1] |
Sealing ring
|
|
| 16. |
VOE20459218
|
[1] |
Gasket
|
|
| 17. |
VOE20459220
|
[1] |
Valve
|
|
| 18. |
VOE20459204
|
[1] |
Valve
|
|
| 19. |
VOE20459211
|
[1] |
Cover
|
|
| 20. |
VOE20460123
|
[3] |
Screw
|
|
| 21. |
VOE20405884
|
[5] |
Screw
|
|
| 22. |
VOE20450895
|
[2] |
Plug
|
|
| 23. |
VOE13947281
|
[2] |
Gasket
|
|
