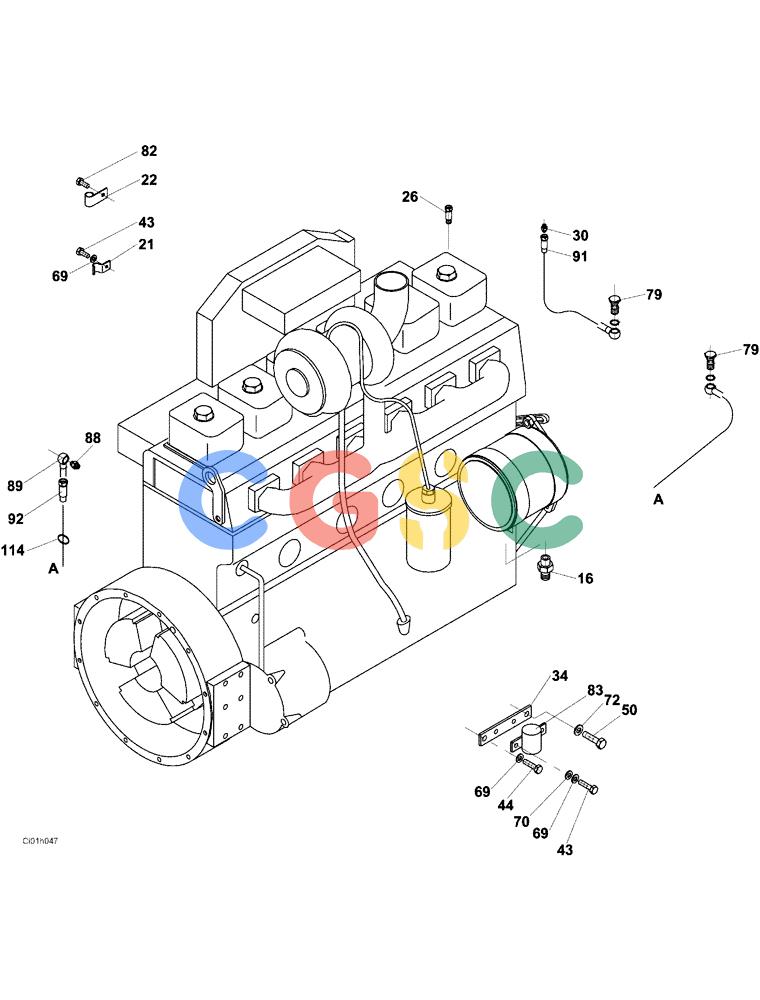

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (03-001-00[01]) - FUEL SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
994 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 16. | ND028169 | [1] | HYD CONNECTOR | STA |
| 21. | ND104775 | [1] | CLIP | STA |
| 22. | ND104774 | [1] | BELT | STA |
| 26. | ND030807 | [1] | HYD CONNECTOR | STA |
| 30. | ND053059 | [1] | HYD CONNECTOR | STA |
| 34. | ND098402 | [1] | SUPPORT | STA |
| 43. | ND021293 | [1] | BOLT | STA |
| 44. | ND021295 | [1] | BOLT | STA |
| 50. | ND021309 | [1] | BOLT | STA |
| 69. | ND035940 | [2] | SPRING WASHER | STA |
| 70. | ND029249 | [2] | WASHER | STA |
| 72. | ND035942 | [1] | WASHER | STA |
| 79. | ND062457 | [2] | BOLT | STAIncludes Bolt, Banjo Fitting, and Sealing Washer |
| 82. | ND062372 | [1] | PLUG | STA |
| 83. | ND091347 | [1] | RELAY | STA Superseded by part number: ND146564, ND146565 |
| 88. | ND062231 | [1] | FITTING | STA |
| 89. | ND062366 | [1] | ELBOW | STA |
| 91. | ND061901 | [1] | HOSE | STA |
| 92. | ND061811 | [1] | HOSE | STA |
| 114. | ND078445 | [5] | SECURING STRAP | STA |
