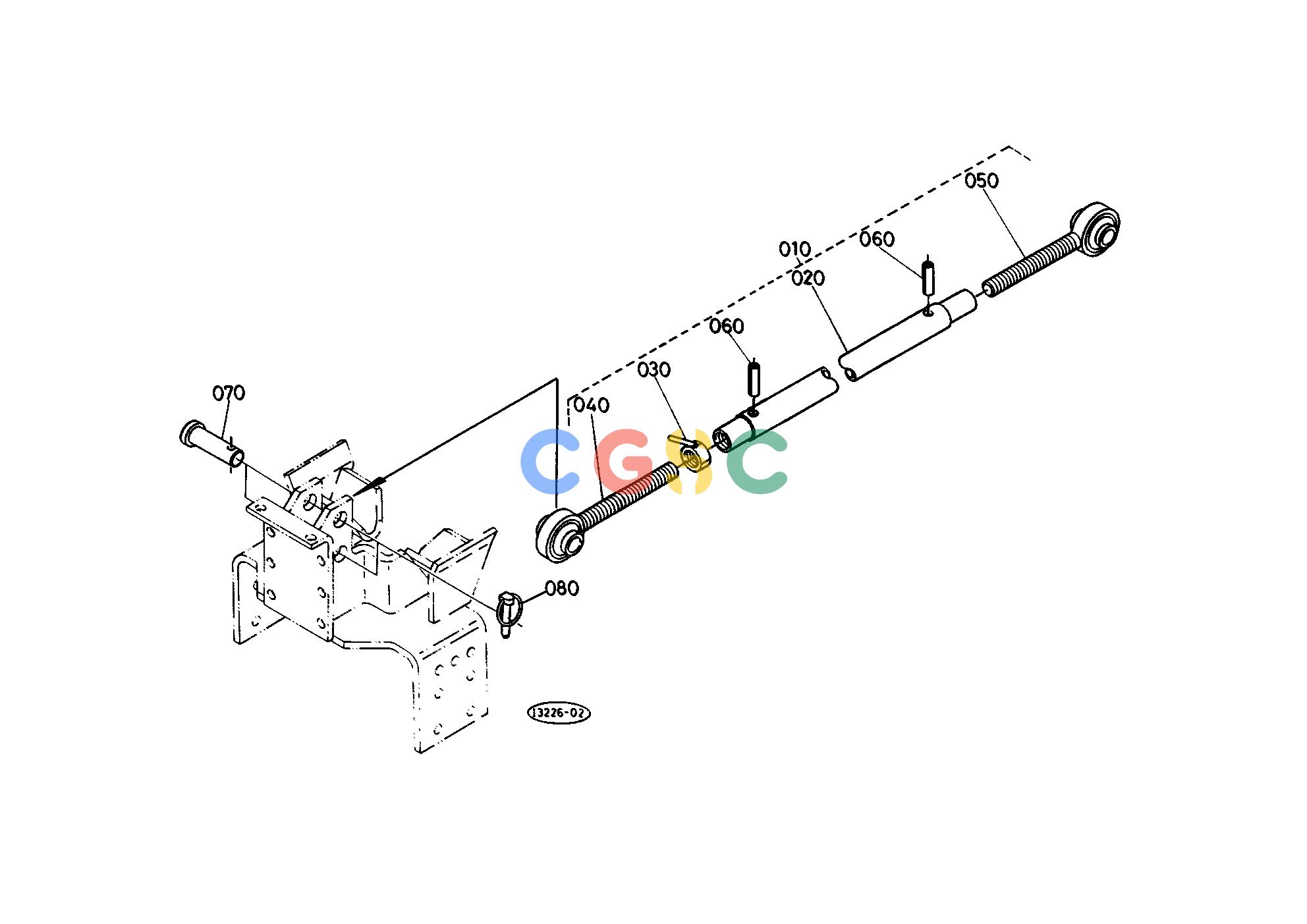

久保田零件查询T10300 TOP LINK HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
417 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780071600
|
[1] |
ASSY LINK TOP
|
2.3760(lbs); 1.080
|
| 020. |
6780071610
|
[1] |
LINK TOP
|
2.3100(lbs); 1.050
|
| 030. |
3824771180
|
[1] |
NUT TOP LINK
|
0.1320(lbs); 0.060
|
| 040. |
3824771210
|
[1] |
JOINT TOP LINK RH
|
1.6720(lbs); 0.760
|
| 050. |
3824771220
|
[1] |
JOINT TOP LINK LH
|
1.7600(lbs); 0.800
|
| 060. |
0541100422
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 070. |
3115071360
|
[2] |
PIN JOINT
|
0.3652(lbs); 0.166
|
| 080. |
3415037640
|
[2] |
PIN SET
|
0.1320(lbs); 0.060
|
