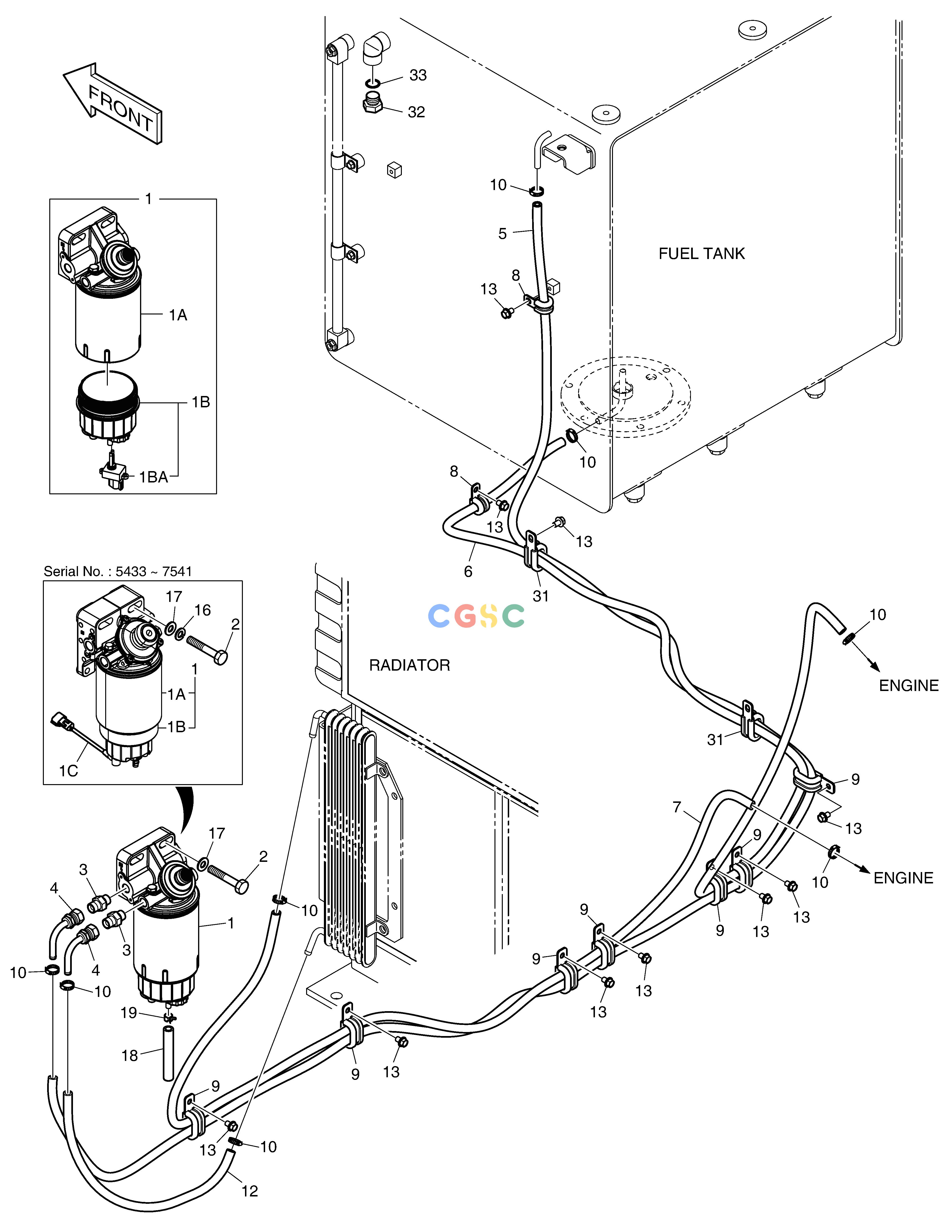

斗山零件查询FUEL PIPING DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1008555H
|
[-] |
FUEL PIPING
|
|
| 1. |
400403-00195
|
[1] |
|
400403-00195A
|
| 1. |
400403-00195A
|
[1] |
FILTER,FUEL PRE
|
|
| 1. |
K1044605
|
[1] |
PRE FUEL FILTER ASS'Y
|
|
| 10. |
S8470014
|
[8] |
CLAMP
|
|
| 12. |
DS2105015
|
[1] |
HOSE
|
|
| 13. |
K1001029
|
[10] |
BOLT
|
|
| 16. |
S5102703
|
[2] |
WASHER
|
|
| 17. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 18. |
DS2105131
|
[1] |
|
DS2165001
|
| 18. |
DS2165001
|
[1] |
|
|
| 19. |
DS2807008
|
[1] |
|
DS2809001
|
| 19. |
DS2809001
|
[1] |
CLIP
|
|
| 1A. |
400508-00084
|
[1] |
. CARTRIDGE ASSY,FILTER
|
|
| 1A. |
K1006530
|
[1] |
FILTER;PRE FUEL
|
|
| 1B. |
110964-00022
|
[1] |
. BOWL
|
|
| 1B. |
K1046352
|
[1] |
BOWL;WATER
|
|
| 1BA. |
301308-00562
|
[1] |
.. SENSOR,LEVEL
|
|
| 1C. |
K1046350
|
[1] |
. SENSOR;WATER
|
|
| 2. |
S0560866
|
[2] |
BOLT
|
|
| 2. |
S0561266
|
[2] |
BOLT
|
|
| 3. |
DS2479004
|
[2] |
ADAPTER
|
|
| 31. |
124-00209D1
|
[2] |
CLIP
|
|
| 32. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 33. |
S8000181
|
[1] |
O-RING
|
|
| 4. |
K1002864
|
[2] |
ELBOW
|
|
| 5. |
DS2105021
|
[1] |
HOSE
|
|
| 6. |
DS2105026
|
[1] |
HOSE
|
|
| 7. |
DS2105018
|
[1] |
HOSE
|
|
| 8. |
124-00208D2
|
[2] |
CLAMP
|
|
| 9. |
124-00209D1
|
[7] |
CLIP
|
|
