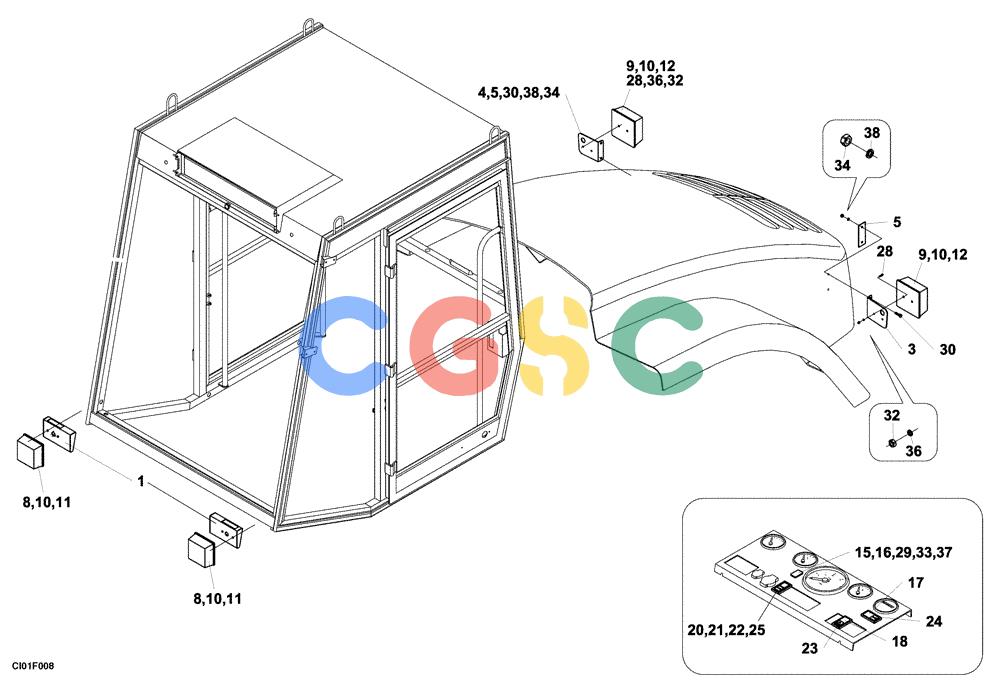

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (04-001-07[01]) - FRONT LIGHTS - REAR LIGHTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
478 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103136 | [2] | SUPPORT | STA |
| 3. | ND103148 | [1] | SUPPORT | STA |
| 4. | ND103150 | [1] | SUPPORT | STA |
| 5. | ND103187 | [2] | WASHER | STA |
| 8. | ND065108 | [2] | TURN SIGNAL INDICATOR | STA |
| 9. | ND065134 | [2] | HEADLAMP | STA |
| 10. | ND066897 | [4] | BULB | STA24V 21W |
| 11. | ND065914 | [2] | FUSE | STA24V 10W |
| 12. | ND066886 | [2] | BULB | STA24V 3W |
| 15. | ND065139 | [1] | FLASHER UNIT | STA |
| 16. | ND065143 | [1] | HOLDER | STA |
| 17. | ND065393 | [1] | SWITCH | STA |
| 18. | ND065434 | [1] | SWITCH | STA |
| 20. | ND065398 | [1] | INDICATOR LIGHT | STA |
| 21. | ND065422 | [1] | LAMP REFLECTOR | STA |
| 22. | ND065354 | [1] | LENS | STA |
| 23. | ND065342 | [1] | LENS | STA |
| 24. | ND065421 | [1] | DECAL | STA |
| 25. | ND065351 | [1] | LENS | STA |
| 28. | ND024110 | [4] | BOLT | STAM4 x 12 |
| 29. | ND093424 | [1] | BOLT | STA |
| 30. | ND021289 | [4] | BOLT | STAM6 x 20 |
| 32. | ND026413 | [4] | NUT | STAM4 |
| 33. | ND021846 | [1] | NUT | STA |
| 34. | ND021847 | [4] | NUT | STAM6 |
| 36. | ND029306 | [4] | WASHER | STAID 4,1 |
| 37. | ND029308 | [1] | WASHER | STAID 5,1 |
| 38. | ND029309 | [4] | SPRING WASHER | STAID 6,1 |
