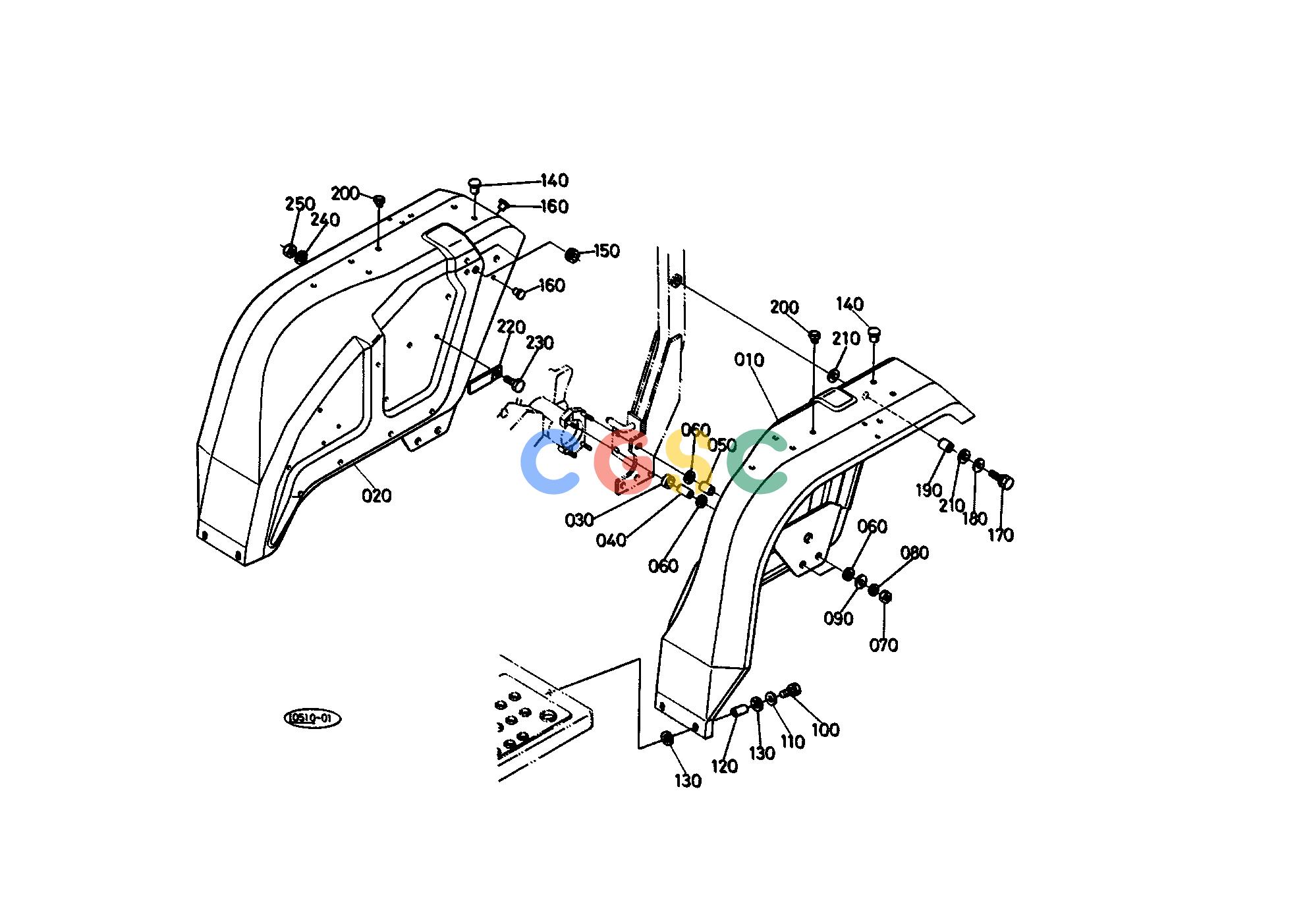

久保田零件查询T11000 FENDER HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
305 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270152110
|
[1] |
COMP.FENDER LH
|
16.2800(lbs); 7.400
|
| 020. |
3270152120
|
[1] |
COMP.FENDER RH
|
16.2800(lbs); 7.400
|
| 030. |
6780052140
|
[2] |
SPACER
|
0.0990(lbs); 0.045
|
| 040. |
6780052150
|
[2] |
COLLAR
|
0.0462(lbs); 0.021
|
| 050. |
6641852150
|
[2] |
COLLAR
|
0.0308(lbs); 0.014
|
| 060. |
6711152160
|
[8] |
CUSHION
|
0.0066(lbs); 0.003
|
| 070. |
0217450120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 080. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 090. |
0401550120
|
[4] |
WASHER PLAIN
|
0.0440(lbs); 0.020
|
| 100. |
0112350830
|
[4] |
BOLT
|
0.0330(lbs); 0.015
|
| 110. |
0401550080
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 120. |
3730035140
|
[4] |
SPACER
|
0.0132(lbs); 0.006
|
| 130. |
6711152160
|
[8] |
CUSHION
|
0.0066(lbs); 0.003
|
| 140. |
3824029290
|
[4] |
PLUG
|
0.0022(lbs); 0.001
|
| 150. |
3215029180
|
[2] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
| 160. |
3824029570
|
[9] |
PLUG
|
0.0022(lbs); 0.001
|
| 170. |
0113351035
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 180. |
0401550100
|
[2] |
WASHER PLAIN
|
0.0352(lbs); 0.016
|
| 190. |
3253029940
|
[2] |
SPACER
|
0.0220(lbs); 0.010
|
| 200. |
3270152150
|
[2] |
PLUG
|
0.0220(lbs); 0.010
|
| 210. |
3824018640
|
[4] |
CUSHION
|
0.0220(lbs); 0.010
|
| 220. |
1524167570
|
[1] |
CLAMP CORD
|
0.0066(lbs); 0.003
|
| 230. |
0175450612
|
[1] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 240. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 250. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
