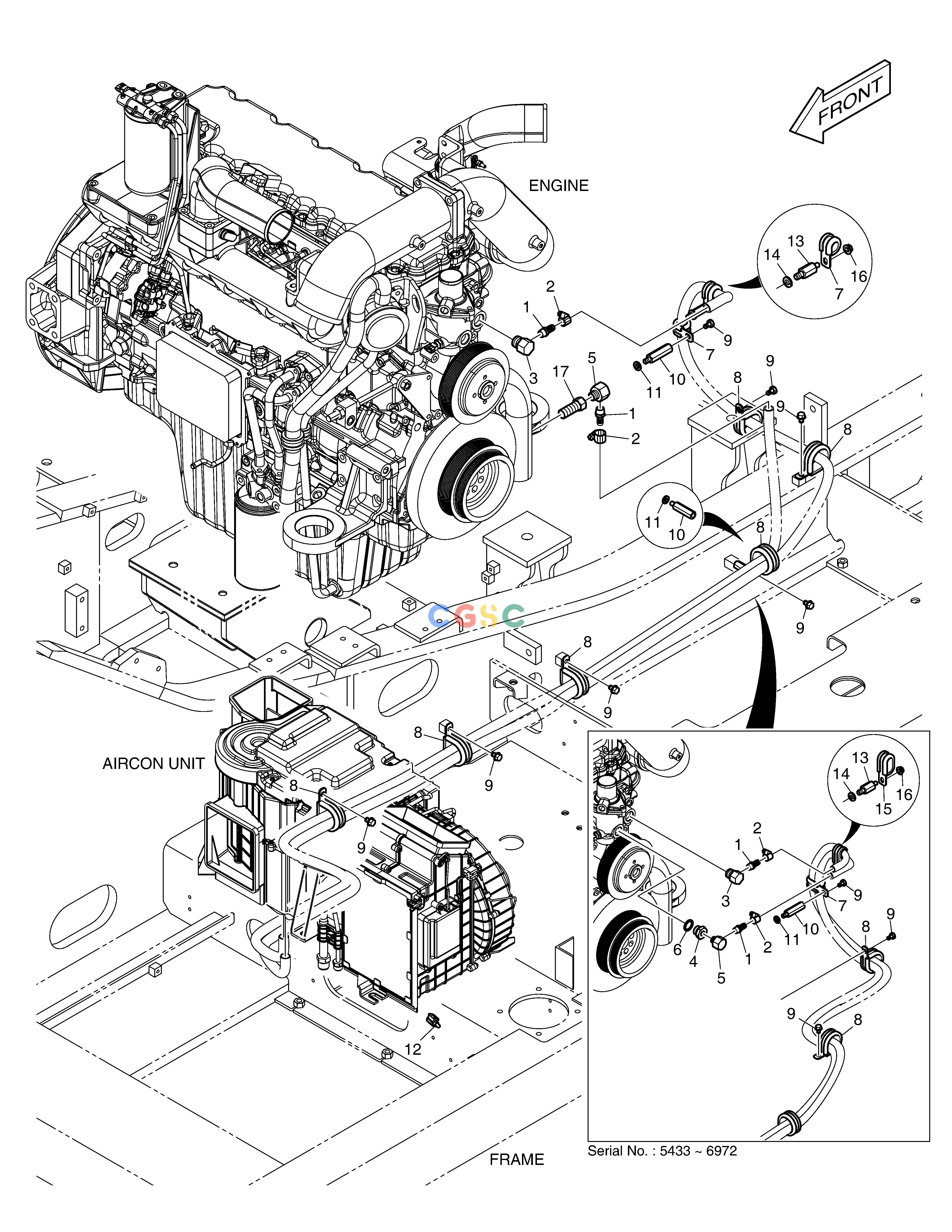

斗山零件查询HEATER PIPING(2) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00227
|
[-] |
|
|
| -. |
K1046267
|
[-] |
AIR CONDITIONER
|
|
| 1. |
2181-2774
|
[2] |
NIPPLE;HOSE
|
|
| 10. |
2120-2187
|
[2] |
BOLT
|
|
| 11. |
S5102503
|
[2] |
. WASHER
|
|
| 12. |
547-00024A
|
[1] |
SENSOR
|
|
| 13. |
120-00246
|
[1] |
BOLT;STUD
|
|
| 14. |
S5102603
|
[1] |
. WASHER
|
|
| 15. |
124-00209D1
|
[1] |
CLIP
|
|
| 16. |
2121-1305
|
[1] |
NUT
|
|
| 17. |
2181-1113D16
|
[1] |
REDUCER PT1/2-PT3/8
|
|
| 2. |
DS2807026
|
[2] |
|
|
| 2. |
S8450016
|
[2] |
. CLAMP
|
DS2807026
|
| 3. |
2181-1159
|
[1] |
ADAPTER
|
|
| 4. |
430201-00278
|
[1] |
|
|
| 4. |
2181-1160A
|
[1] |
ADAPTER
|
430201-00278
|
| 5. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 6. |
S8180411
|
[1] |
SEAL;COPPER
|
|
| 7. |
124-00208D3
|
[2] |
CLIP
|
|
| 7. |
124-00209D1
|
[1] |
CLIP
|
|
| 8. |
124-00208D7
|
[6] |
CLIP
|
|
| 9. |
K1001029
|
[7] |
BOLT
|
|
