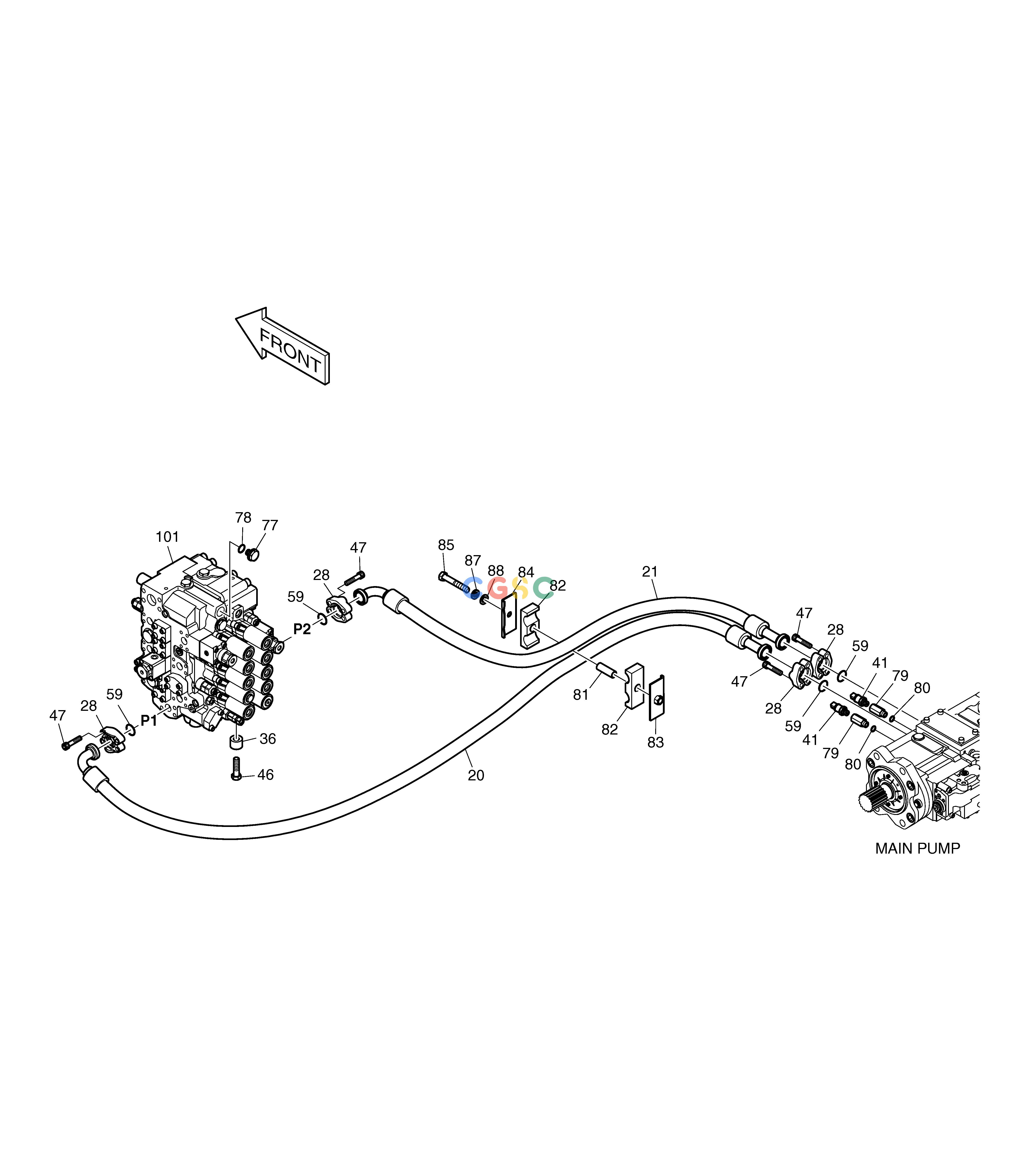

斗山零件查询MAIN PIPING(1) - PUMP DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044586B
|
[-] |
MAIN PIPING(1)
|
|
| 101. |
K1025391
|
[1] |
VALVE;CONTROL
|
|
| 20. |
DS2040687
|
[1] |
HOSE
|
|
| 21. |
DS2040709
|
[1] |
HOSE
|
|
| 28. |
2181-9081
|
[8] |
FLANGE;SPLIT
|
|
| 36. |
114-00425
|
[4] |
SPACER
|
|
| 41. |
K1048145
|
[2] |
SENSOR,PRESSURE
|
|
| 46. |
S0565466
|
[4] |
BOLT
|
|
| 47. |
S2215466
|
[16] |
BOLT
|
|
| 59. |
2180-1026D19
|
[4] |
O-RING
|
|
| 77. |
2181-1950D9
|
[1] |
PLUG
|
|
| 78. |
S8000291
|
[1] |
O-RING
|
|
| 79. |
DS2242029
|
[2] |
REDUCER
|
|
| 80. |
S8000141
|
[2] |
O-RING
|
|
| 81. |
K1050297
|
[1] |
SPACER
|
|
| 82. |
124-00247
|
[2] |
CLAMP;HOSE
|
|
| 83. |
K1038968
|
[1] |
PLATE
|
|
| 84. |
2191-3705C
|
[1] |
PLATE
|
|
| 85. |
S0566266
|
[1] |
BOLT
|
|
| 87. |
S5102903
|
[1] |
WASHER
|
|
| 88. |
S5010913
|
[1] |
WASHER
|
|
