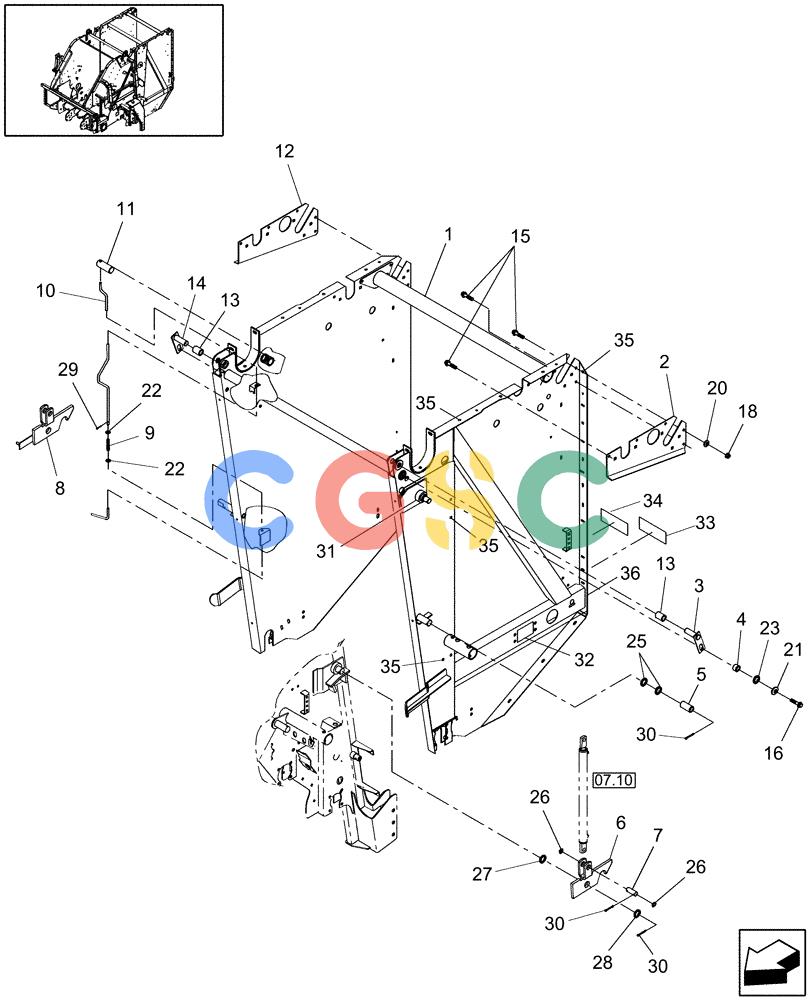

| 1. |
87019771
|
[1] |
TAILGATE
|
PA
North America Superseded by part number: 87019770
|
| 1. |
87019773
|
[1] |
TAILGATE
|
PA
Europe & R.O.W. Superseded by part number: 87019772
|
| 2. |
86979965
|
[1] |
SUPPORT
|
PA
LH
|
| 3. |
86637276
|
[2] |
PIN
|
NH
|
| 4. |
86622618
|
[2] |
SPACER,13.11mm ID x 19.05mm OD x 12.3mm Thk
|
NH
|
| 5. |
9600196
|
[2] |
SPACER,32.23mm ID x 39.7mm OD x 29.98mm L
|
NH
Superseded by part number: 86636674
|
| 6. |
86642326
|
[1] |
LATCH
|
PA
LH Superseded by part number: 47853260, 84356520
|
| 7. |
166065
|
[2] |
PIN,25.4mm OD x 66.5mm L
|
NH
Clevis, 1" x 2-5/8"
|
| 8. |
86642327
|
[1] |
LATCH
|
PA
RH Superseded by part number: 47853345, 84384139
|
| 9. |
86628108
|
[1] |
SPRING
|
NH
Compression
|
| 10. |
86637292
|
[1] |
ROD
|
NH
|
| 11. |
86554798
|
[1] |
PIN,31.7mm OD x 66mm L
|
NH
|
| 12. |
86979967
|
[1] |
SUPPORT
|
PA
RH
|
| 13. |
26306
|
[2] |
DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L
|
NH
|
| 14. |
87656965
|
[1] |
PIN,25.4mm OD x 85mm L
|
NH
|
| 15. |
614-10030
|
[10] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 16. |
614-12040
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 18. |
825-1410
|
[10] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 20. |
140045
|
[10] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 21. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 22. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 23. |
495-21056
|
[2] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 25. |
164995
|
[6] |
WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk
|
NH
1-1/4"
|
| 26. |
495-11106
|
[4] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 27. |
64972
|
[4] |
WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk
|
NH
Special, 1-9/32" ID x 2" OD x .135"
|
| 28. |
27696
|
[1] |
WASHER,1.281" ID x 2" OD x .060" Thk
|
NH
Superseded by part number: 675
|
| 29. |
432-812
|
[1] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 30. |
432-1228
|
[8] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 31. |
87040146
|
[1] |
SHAFT
|
PA
LH
|
| 31. |
87040147
|
[1] |
SHAFT
|
PA
RH
|
| 32. |
86631519
|
[1] |
DANGER DECAL
|
NH
English
|
| 32. |
86632802
|
[1] |
DECAL
|
NH
DANGER, French
|
| 33. |
86547781
|
[2] |
REFLECTOR,RED
|
NH
Red Retroreflective
|
| 34. |
86631516
|
[1] |
WARNING DECAL
|
NH
English
|
| 34. |
86632799
|
[1] |
DANGER DECAL
|
NH
WARNING, French
|
| 35. |
86610200
|
[30] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 36. |
86610201
|
[4] |
INSERT,M8
|
NH
|
