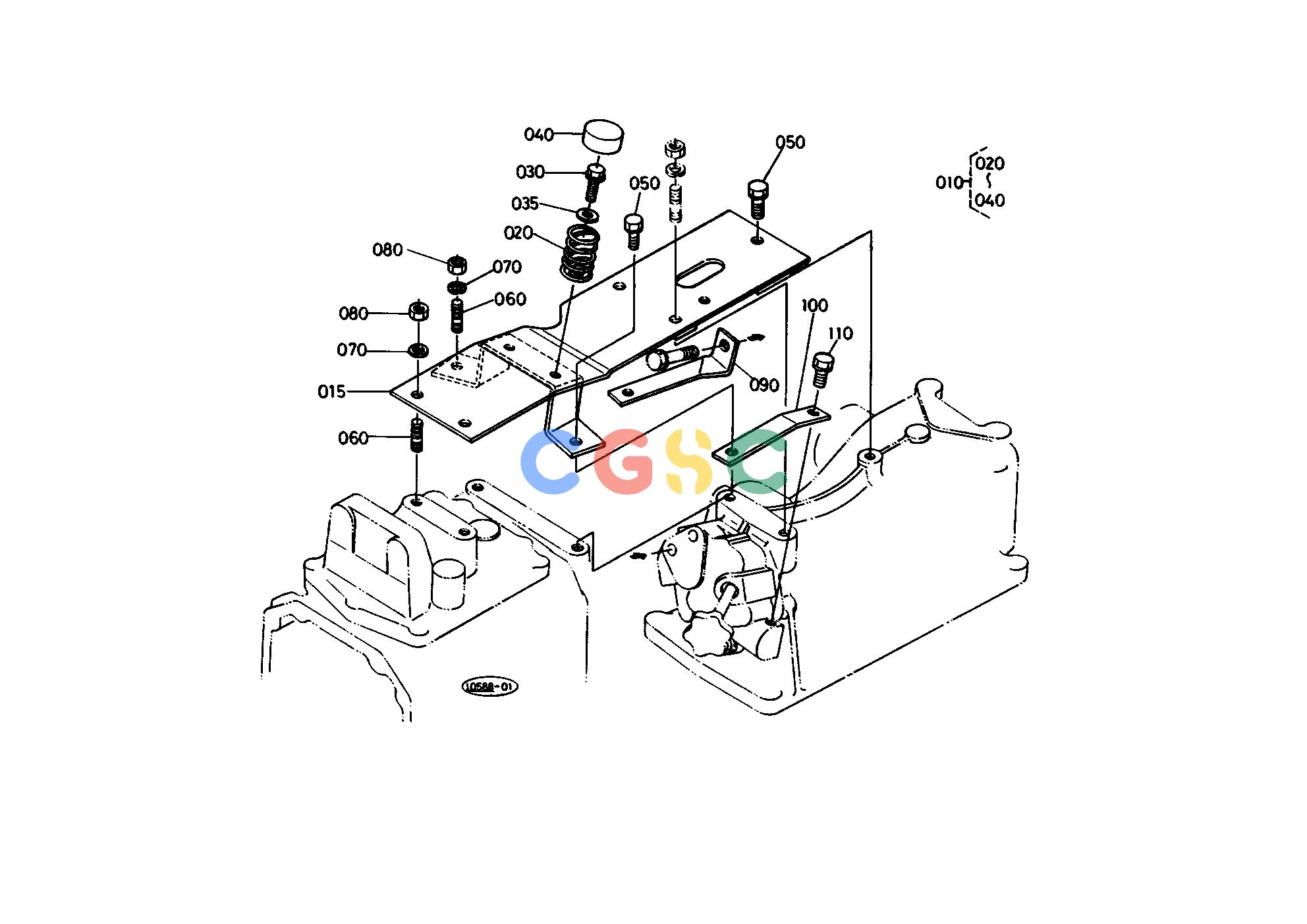

久保田零件查询T11400 SEAT PLATE HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
449 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270152600
|
[1] |
ASSY PLATE
|
0.0000(lbs); 0.000
|
| 015. |
3270152610
|
[1] |
PLATE
|
4.6200(lbs); 2.100
|
| 020. |
6630152810
|
[2] |
SPRING.SEAT
|
0.2640(lbs); 0.120
|
| 030. |
0112350830
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 035. |
0401550080
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 040. |
6630152820
|
[2] |
CAP SPRING
|
0.0880(lbs); 0.040
|
| 050. |
0112351030
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 060. |
0155451020
|
[3] |
STUD
|
0.0352(lbs); 0.016
|
| 070. |
0451250100
|
[3] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 080. |
0211850100
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
3270152620
|
[1] |
STAY
|
0.2200(lbs); 0.100
|
| 100. |
3270152630
|
[1] |
STAY
|
0.2200(lbs); 0.100
|
| 110. |
0112351025
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
