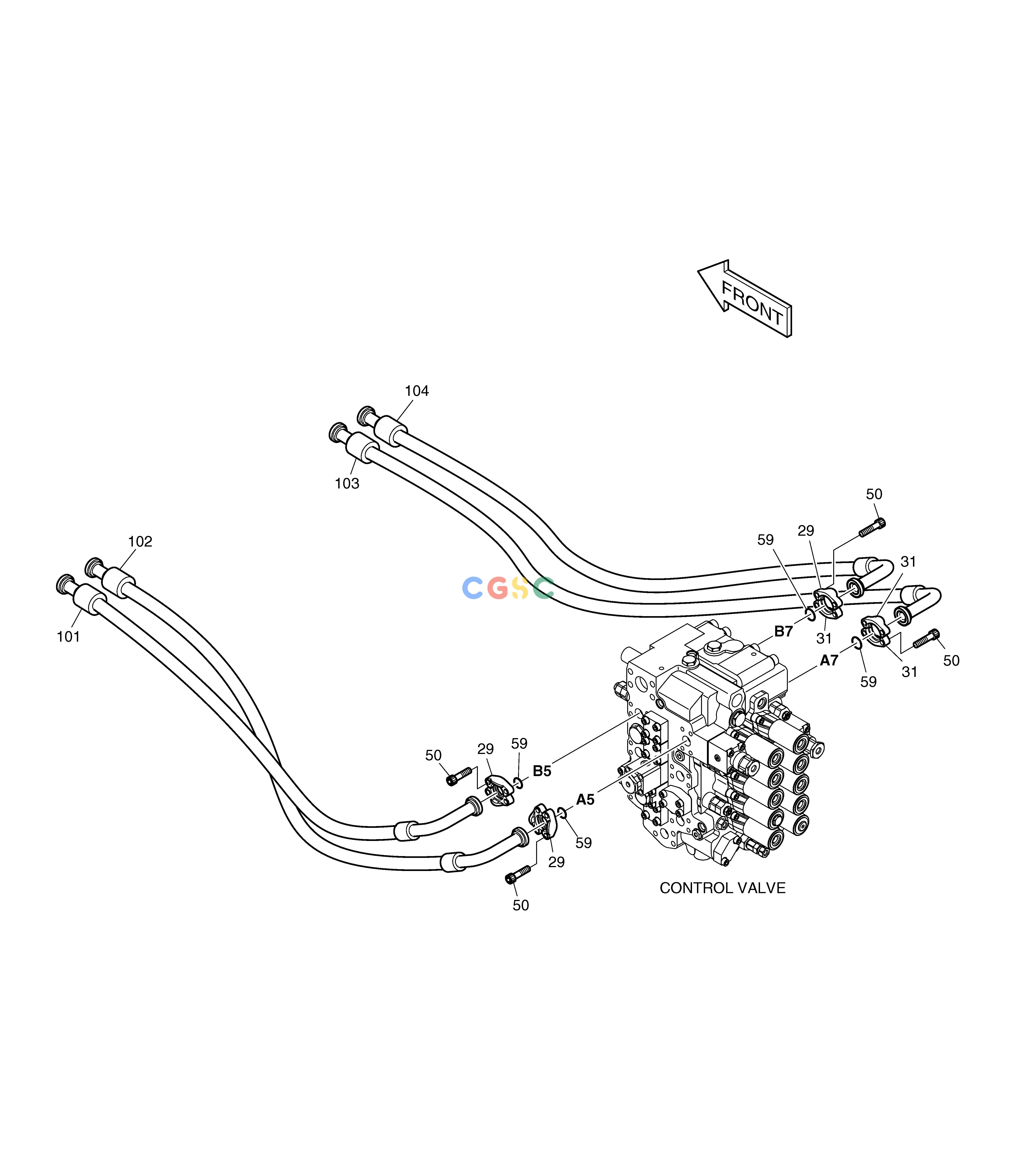

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1044586B | [-] | MAIN PIPING(1) | |
| -. | 420212-00576 | [-] | ||
| 101. | DS2040683 | [1] | HOSE | |
| 102. | DS2040684 | [1] | HOSE | |
| 103. | DS2040686 | [1] | HOSE | |
| 104. | DS2040685 | [1] | HOSE | |
| 104. | DS2040471 | [1] | HOSE | |
| 29. | 2181-9078 | [6] | FLANGE;SPLIT | |
| 31. | 2181-9083 | [3] | FLANGE;SPLIT | |
| 50. | S2212266 | [16] | BOLT | |
| 59. | 2180-1026D19 | [4] | O-RING |
