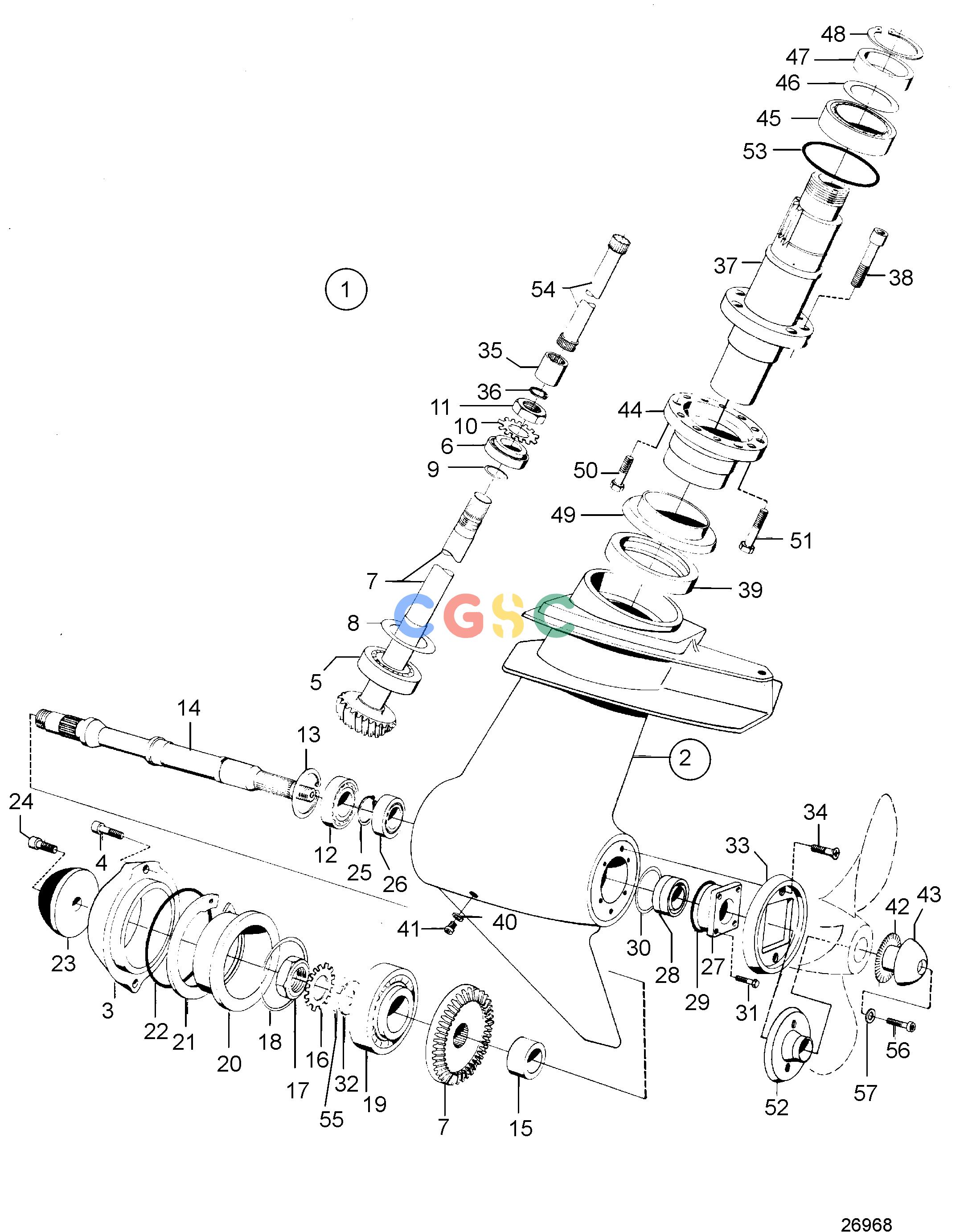

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ETransmissionsLower Gear UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
605 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
832218
|
[1] |
Housing
|
|
| 2. |
832317
|
[1] |
Gear housing
|
|
| 3. |
832336
|
[1] |
Protecting cover
|
|
| 4. |
941810
|
[2] |
Hex. socket screw
|
|
| 5. |
11062
|
[1] |
Roller bearing
|
|
| 6. |
183465
|
[1] |
Roller bearing
|
|
| 7. |
832203
|
[1] |
Gear set
|
|
| 8. |
832348
|
[1] |
Washer
|
TH=0.1mm
|
| 8. |
832058
|
[1] |
Washer
|
TH=0.15mm
|
| 8. |
832059
|
[1] |
Washer
|
TH=0.35mm
|
| 9. |
832352
|
[1] |
Washer
|
TH=0.1mm
|
| 9. |
832206
|
[1] |
Washer
|
TH=0.15mm
|
| 9. |
832207
|
[1] |
Washer
|
TH=0.35mm
|
| 10. |
907026
|
[1] |
Lock washer
|
|
| 11. |
906636
|
[1] |
Round nut
|
|
| 12. |
183124
|
[1] |
Ball bearing
|
|
| 13. |
943946
|
[1] |
Retaining ring
|
|
| 14. |
832208
|
[1] |
Propeller shaft
|
|
| 15. |
832068
|
[1] |
Spacer sleeve
|
|
| 16. |
190427
|
[1] |
Tab washer
|
|
| 17. |
832476
|
[1] |
Lock nut
|
|
| 18. |
832353
|
[1] |
Washer
|
TH=0.1mm
|
| 18. |
832209
|
[1] |
Washer
|
TH=0.15mm
|
| 18. |
832264
|
[1] |
Washer
|
TH=0.35mm
|
| 19. |
19481
|
[1] |
Roller bearing
|
|
| 20. |
832210
|
[1] |
Bearing carrier
|
|
| 21. |
832494
|
[1] |
Retaining ring
|
|
| 22. |
943943
|
[1] |
O-ring
|
|
| 23. |
832338
|
[1] |
Rubber damper
|
|
| 24. |
959452
|
[1] |
Screw
|
|
| 25. |
914472
|
[1] |
Snap ring
|
|
| 26. |
183466
|
[1] |
Roller bearing
|
|
| 27. |
832212
|
[1] |
Bearing cover
|
|
| 28. |
943632
|
[2] |
Sealing ring
|
|
| 29. |
925094
|
[1] |
O-ring
|
|
| 30. |
832354
|
[1] |
Washer
|
TH=0.1mm
|
| 30. |
832213
|
[1] |
Washer
|
TH=0.15mm
|
| 30. |
832211
|
[1] |
Washer
|
TH=0.35mm
|
| 31. |
959968
|
[4] |
Hexagon screw
|
|
| 32. |
832429
|
[1] |
Washer
|
|
| 33. |
832214
|
[1] |
Zinc ring
|
|
| 34. |
943933
|
[2] |
Screw
|
|
| 35. |
832215
|
[1] |
Splined sleeve
|
|
| 36. |
914517
|
[1] |
Snap ring
|
|
| 37. |
832216
|
[1] |
Pivot
|
|
| 38. |
956633
|
[6] |
Screw
|
|
| 39. |
945329
|
[1] |
Sealing ring
|
|
| 40. |
897682
|
[1] |
Gasket
|
|
| 41. |
814179
|
[1] |
Plug
|
|
| 42. |
832306
|
[1] |
Tab washer
|
PZ-7500182
|
| 43. |
832399
|
[1] |
Propeller nut
|
|
| 44. |
832247
|
[1] |
Sealing flange
|
|
| 45. |
181718
|
[1] |
Ball bearing
|
|
| 46. |
832356
|
[1] |
Washer
|
TH=0.1mm
|
| 46. |
832249
|
[1] |
Washer
|
TH=0.15mm
|
| 46. |
832236
|
[1] |
Washer
|
TH=0.35mm
|
| 47. |
832248
|
[1] |
Spacer ring
|
|
| 48. |
914486
|
[1] |
Snap ring
|
|
| 49. |
832321
|
[1] |
Protecting ring
|
|
| 50. |
940172
|
[6] |
Hexagon screw
|
|
| 51. |
959952
|
[6] |
Hexagon screw
|
|
| 52. |
839537
|
[1] |
Guard plate
|
|
| 53. |
925264
|
[1] |
O-ring
|
|
| 54. |
832250
|
[1] |
Countershaft
|
|
| 55. |
832497
|
[1] |
Washer
|
|
| 56. |
959513
|
[1] |
Hex. socket screw
|
PZ7500183-
|
| 57. |
945094
|
[1] |
Washer
|
PZ7500183-
|
| 57. |
875694
|
[1] |
Gasket kit, gasket and circlip kit
|
|
| 57. |
|
|
|
|
