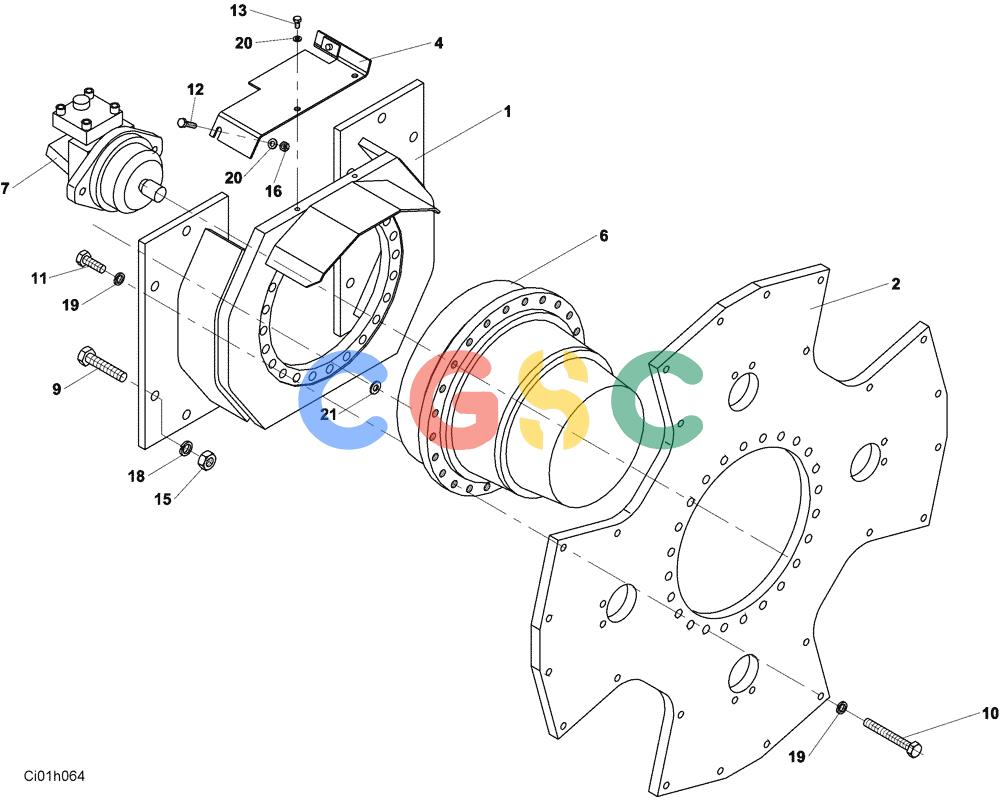

纽荷兰零件查询(CV2500) - VIBRATORY ROLLER (07-001-00[01]) - TRANSMISSION - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
940 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104668 | [1] | BRACKET | STA |
| 2. | ND106175 | [1] | CARRIER | STA |
| 4. | ND104776 | [1] | COVER | STA |
| 6. | ND090947 | [1] | REDUCER | STA |
| 7. | ND090786 | [1] | HYDRAULIC MOTOR | STA Superseded by part number: ND107125 |
| 9. | ND021267 | [12] | BOLT | STA |
| 10. | ND021253 | [24] | BOLT | STA |
| 11. | ND021241 | [24] | BOLT | STA |
| 12. | ND021209 | [1] | BOLT | STA |
| 13. | ND021308 | [2] | BOLT | STA |
| 15. | ND021854 | [12] | NUT | STA |
| 16. | ND021850 | [1] | NUT | STA |
| 18. | ND035946 | [12] | SPRING WASHER | STA |
| 19. | ND035944 | [48] | WASHER | STA |
| 20. | ND029267 | [4] | WASHER | STA |
| 21. | ND029270 | [2] | WASHER | STA |
