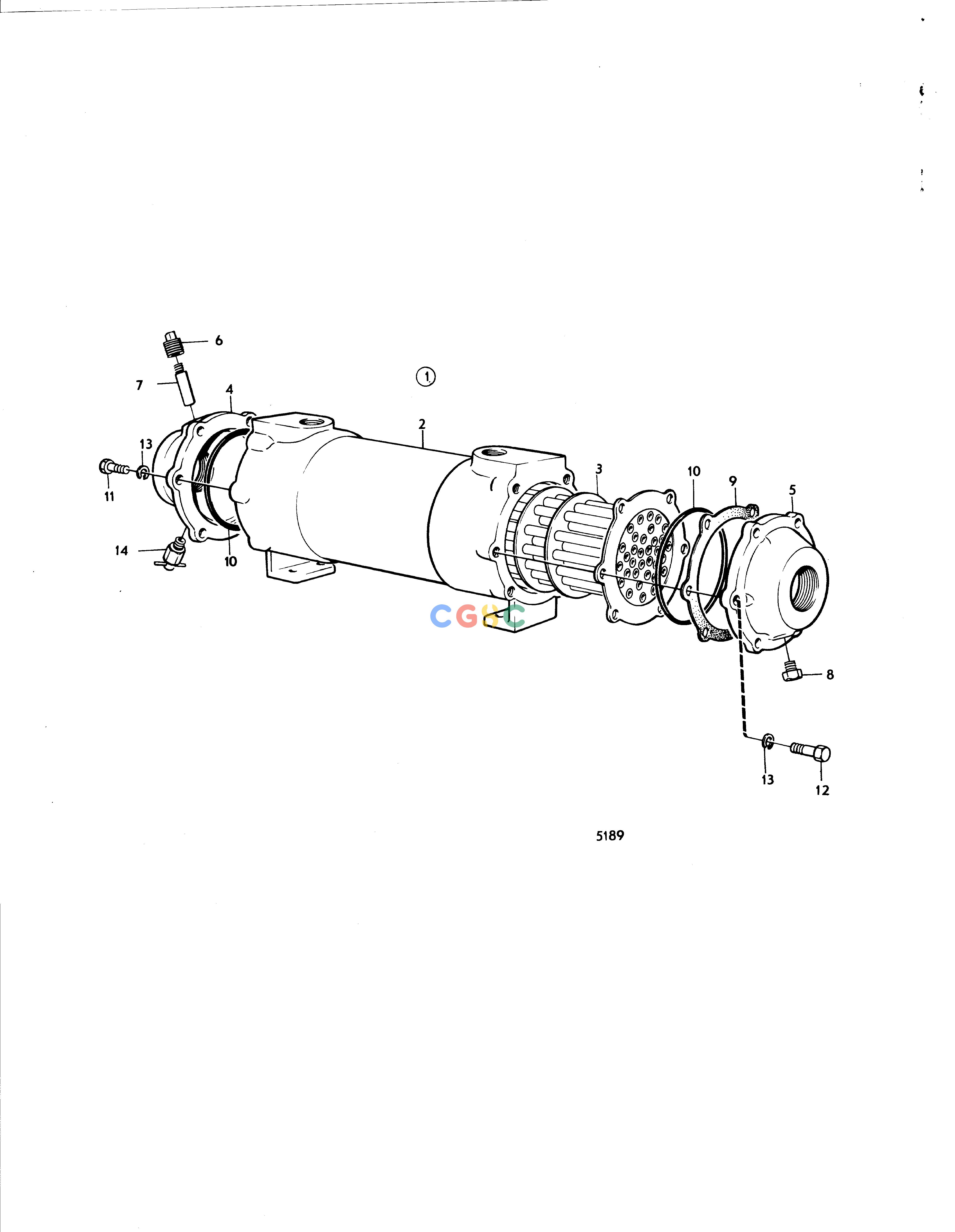

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ETransmissionsOil Cooler: 844114EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
844114
|
[1] |
Oil cooler
|
|
| 2. |
806525
|
[1] |
Housing
|
|
| 3. |
821089
|
[1] |
Insert
|
|
| 4. |
843939
|
[1] |
End cover
|
|
| 5. |
805887
|
[1] |
End cover
|
|
| 6. |
838928
|
[1] |
Plug
|
|
| 7. |
838929
|
[1] |
Anode
|
|
| 8. |
180759
|
[3] |
Plug
|
|
| 9. |
806153
|
[1] |
Gasket
|
|
| 10. |
806154
|
[2] |
Sealing ring
|
|
| 11. |
955272
|
[6] |
Hexagon screw
|
|
| 12. |
955274
|
[6] |
Hexagon screw
|
|
| 13. |
941906
|
[12] |
Spring washer
|
|
| 14. |
82744
|
[1] |
Shut-off cock
|
|
